Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List
21
3.2.5.2 16x2.5” Hot Swap HDD SAS/SATA Cable Guide (with SAS expander)
SAS drive configurations consisting of more than 8 drives may require the addition of a SAS Expander card. In a 16x2.5” system configuration, the SAS expander
RES3FV288 must be installed in any available PCIe add-in slot, or when using RES3TV360, the card must be installed between the system fans and the
backplane of the HDD cages. Intel provides two SAS expander options to support this drive configuration:

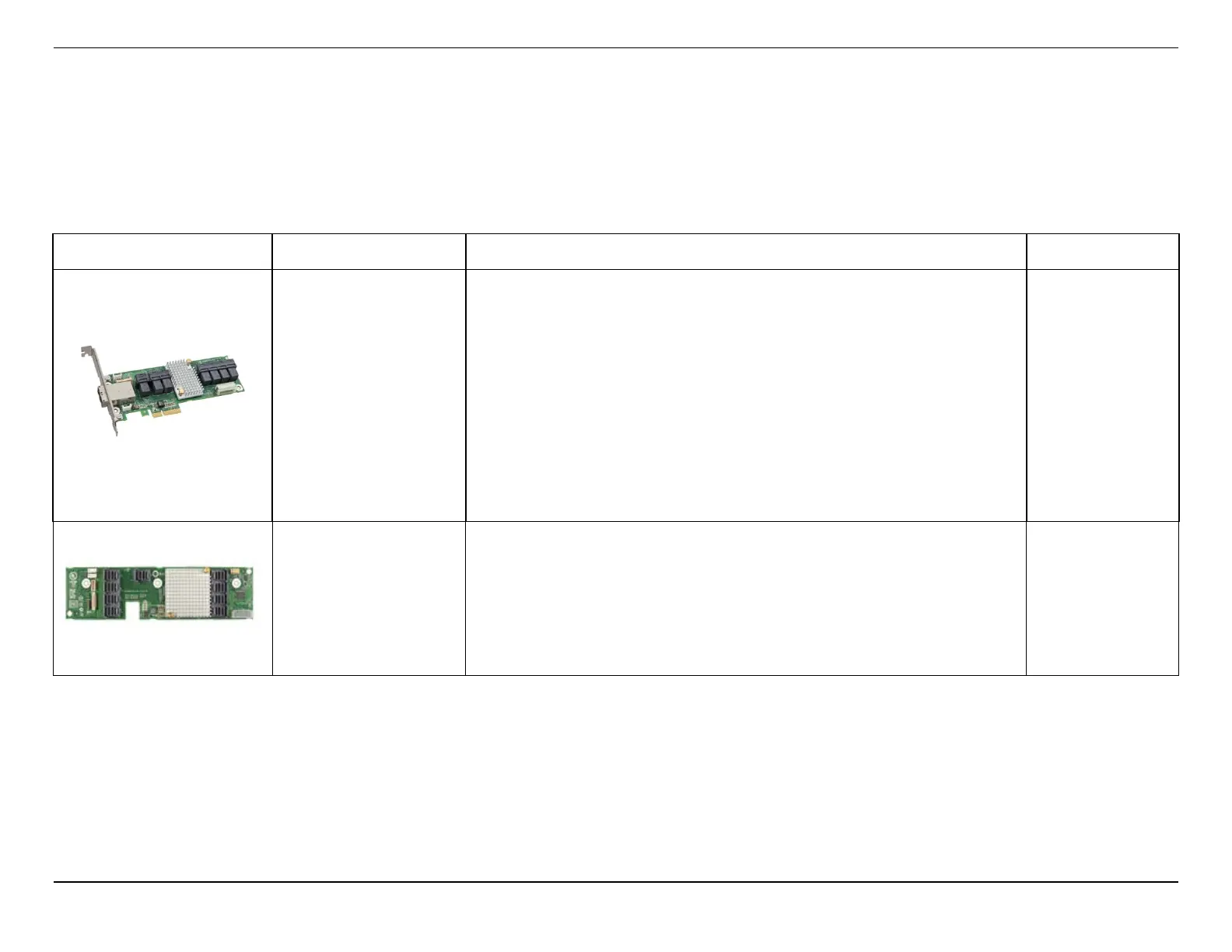

Table 15. SAS Expanders compatible with Intel® Server Boards S2600CW Family
Intel Product Code Order Information
Product Description Product Type
iPC – RES3FV288
Intel
®
RAID Expander
RES3FV288
MM# – 932895
UPC – 00735858287548
EAN – 5032037067287
MOQ - 5
SAS 3.0 12 Gb/s expander
• Featuring 6Gbps data aggregation for 12Gbps data transfer with 6Gb/s
devices
• Low Profile MD2 PCIe* add-in card form factor
• 28 internal ports and 8 external ports
• Redundant dual-port capable for HA and high performance systems
• Power from PCIe x1
• HD Mini-SAS 8643 Connectors
Kit includes: (1) SAS Expander card, (2) HD-HD 250mm Expander-to-RAID
card cables, PCI brackets for Low profile and Full height
Required (sold separately): HD-HD SAS DATA Cables – Expander to
backplane – See Table 16
•
Accessory Kit
iPC – RES3TV360
Intel® RAID Expander
RES3TV360
MM# – 932894
UPC –00735858287364
EAN – 5032037067102
MOQ - 5
SAS 2.0 12 Gb/s expander
• 36-port, 12 Gb/s-capable expander card
Kit includes: (1) 12 Gb/s SAS Expander card, (2) Cables to connect to 24-ports
on nearby drive backplane
Required (sold separately): HD-HD SAS Expander-to-RAID Data Cables for
connecting – See Table 16
• Accessory Kit
Note: The onboard SATA ports are not compatible with SAS Expander cards. The onboard SATA ports can only be cabled directly to a specified backplane or
HDD
