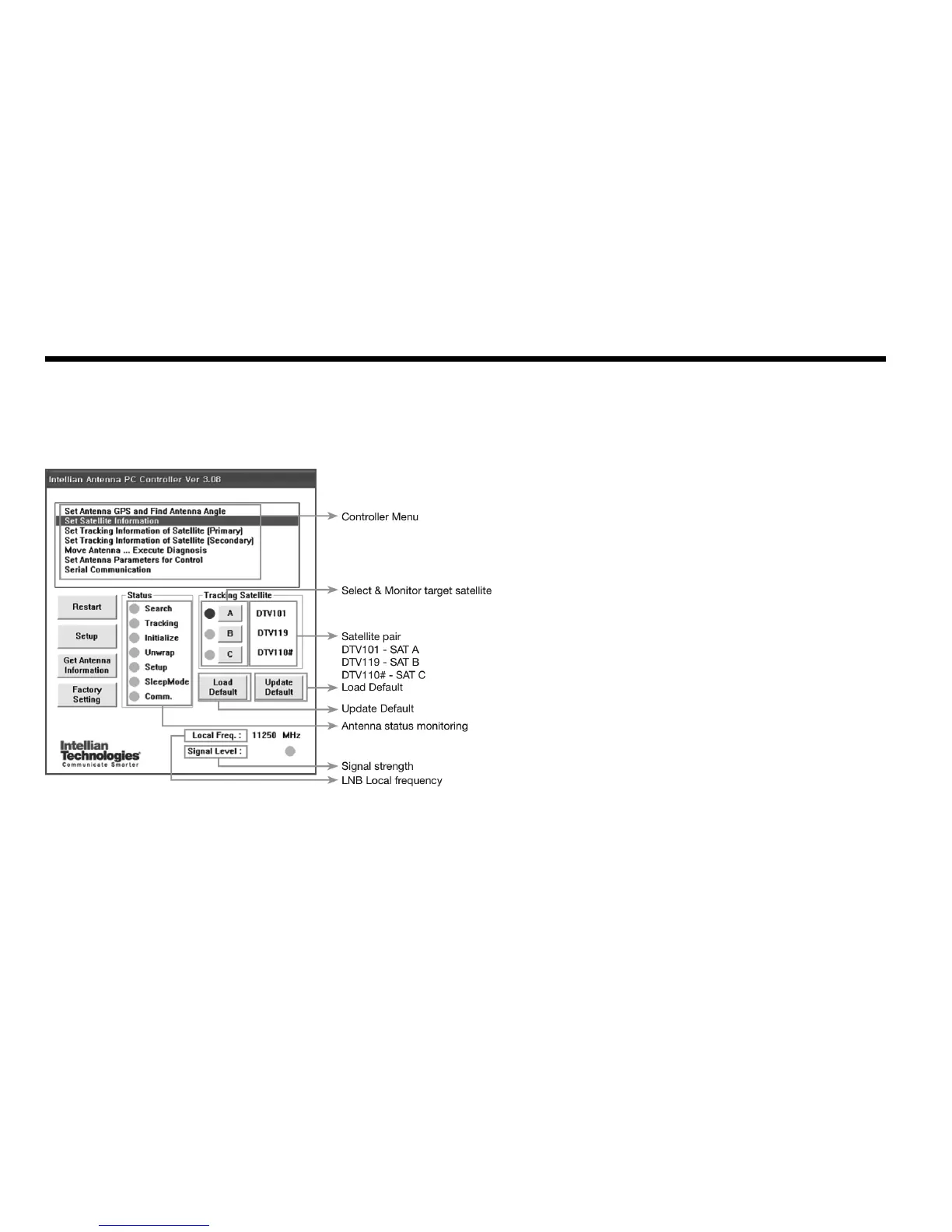

Figure 23 : Setup for Satellite Information in Dual-Sat Mode
Antenna Status Monitoring
• Search – Antenna is searching for the selected satellite.
• Tracking – Antenna is tracking the selected satellite.
• Initialize – Antenna or the ACU is initializing.
• Unwrap – Antenna is unwrapping the wire.
• Setup – Antenna is in setup mode.
• Comm. – Antenna is communicating with the ACU.
Denition of program Command Buttons
• Restart – To exit setup mode and restart the antenna again.
• Setup – To enter setup mode.
• Get Antenna Information – To indicate the information on display after
receiving its input from the antenna.
• Factory Setting – To initialize all antenna information to default, the same
as it was in ex-factory status.
• Load Default – To load up-to-date information from your PC and input it
to the PC program on display.
• Update Default – To update the antenna’s information from the up-to-
date input to the PC program on display.
