Intellian Satellite TV Antenna Systems
Basic System Conguration of Intellian i2
For your satellite TV system to function properly, the system will have to
be connected with all of the provided components as shown on the right
(Refer to the next chapter ‘Installation’ in this manual for more detailed
connection instructions). Separate purchase of a satellite receiver and a
TV is required.

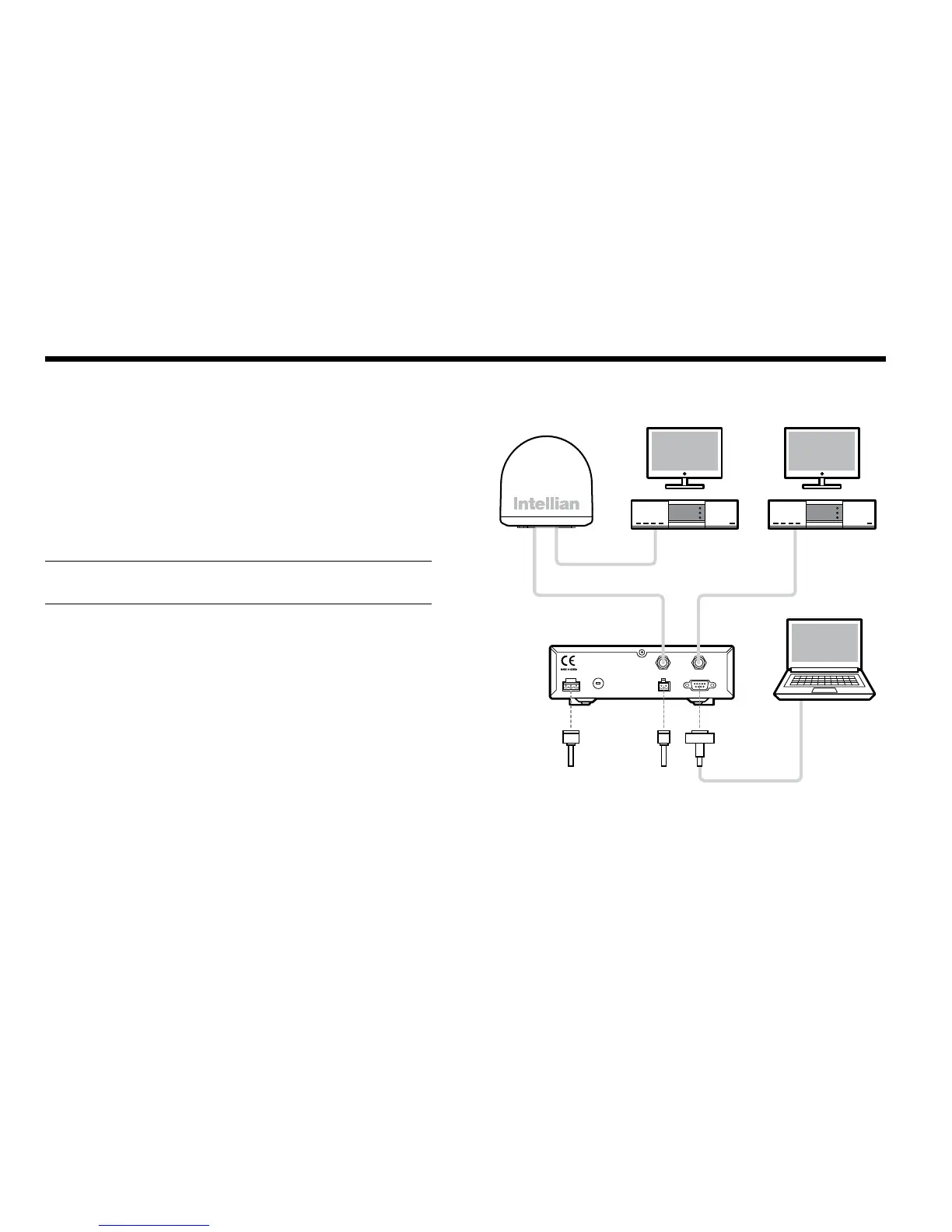

Figure 01 : Basic Conguration with 2 Receivers
ANT RF1
FUSE
FG - +
+ -
TV
(Not Supplied)
Antenna Control Unit
DC Power on Vessel
(DC
- 9.0 - 30.0V)
NMEA GPS
PC( Not Supplied)
Satellite Receiver
(Not Supplied)
NMEA
RECEIVER
DC 9~30V PC INTERFACE
TV
(Not Supplied)
Satellite Receiver
(Not Supplied)
Note: Dish Network and Bell TV users please refer to the Intellian Dish
Network MIM Installation and User Manual.

Intellian i2 Specifications

General

Brand	Intellian
Model	i2
Category	Antenna
Language	English
