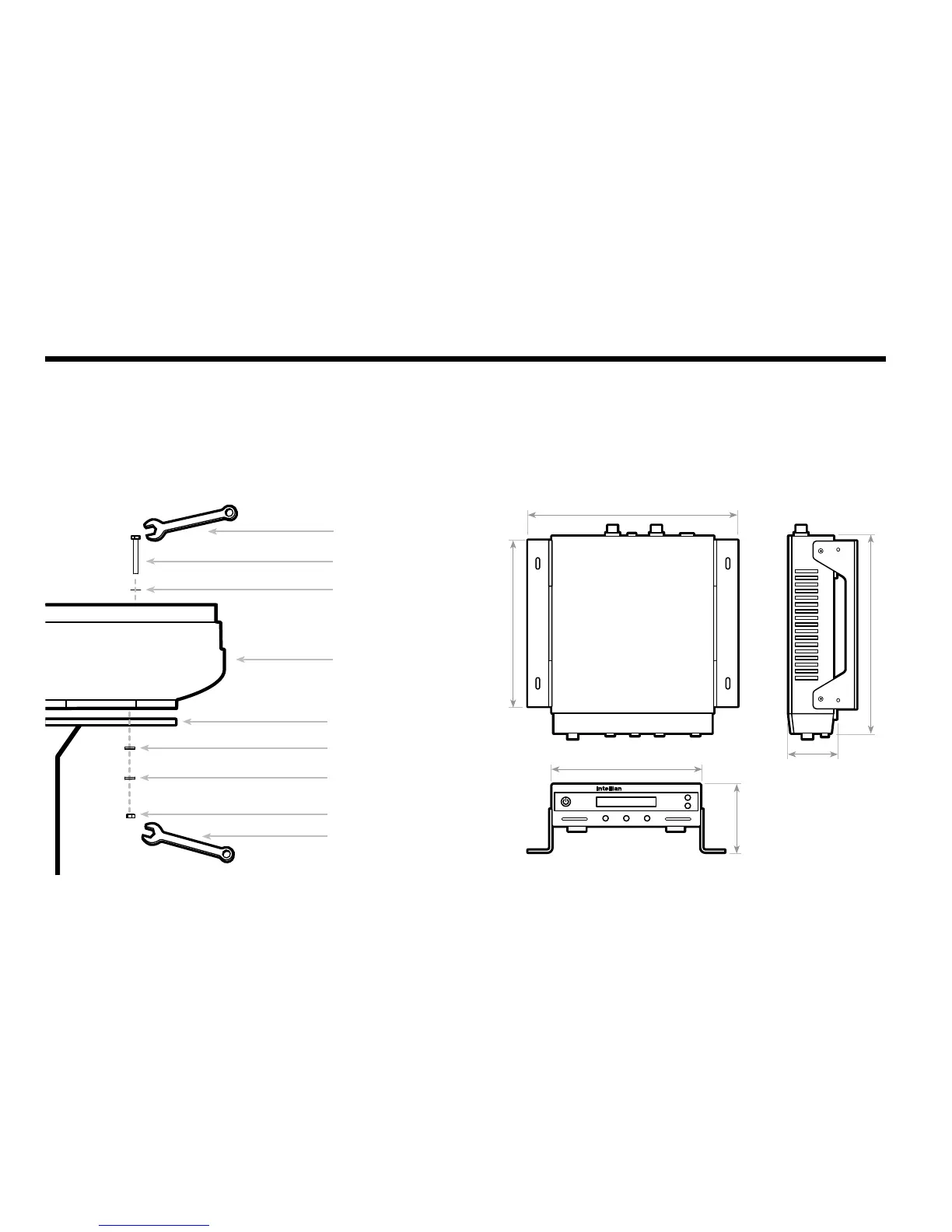

Mounting the Antenna
Fix the antenna to the holes made before as shown in the drawing
below by using the hex head bolts (M6 X 35L), M6 spring washer,
M6 at washer and M6 Nut supplied.
Figure 12 : Mounting the Antenna
ACU Dimensions
Installing the ACU
5.4 cm (2.1”)
5.5 cm (2.2”)
22.8 cm (9”)
17.8 cm (7”)
21.7 cm (8.5”)
18.5 cm (7.3”)
Figure 13 : Dimension of ACU
Radome Base
Deck
M6 Flat Washer
M6 Spring Washer
M6 Hex. Nut
10mm Spanner
M6 Flat Washer
M6 Hex. Bolt
10mm Spanner
To Next Page
