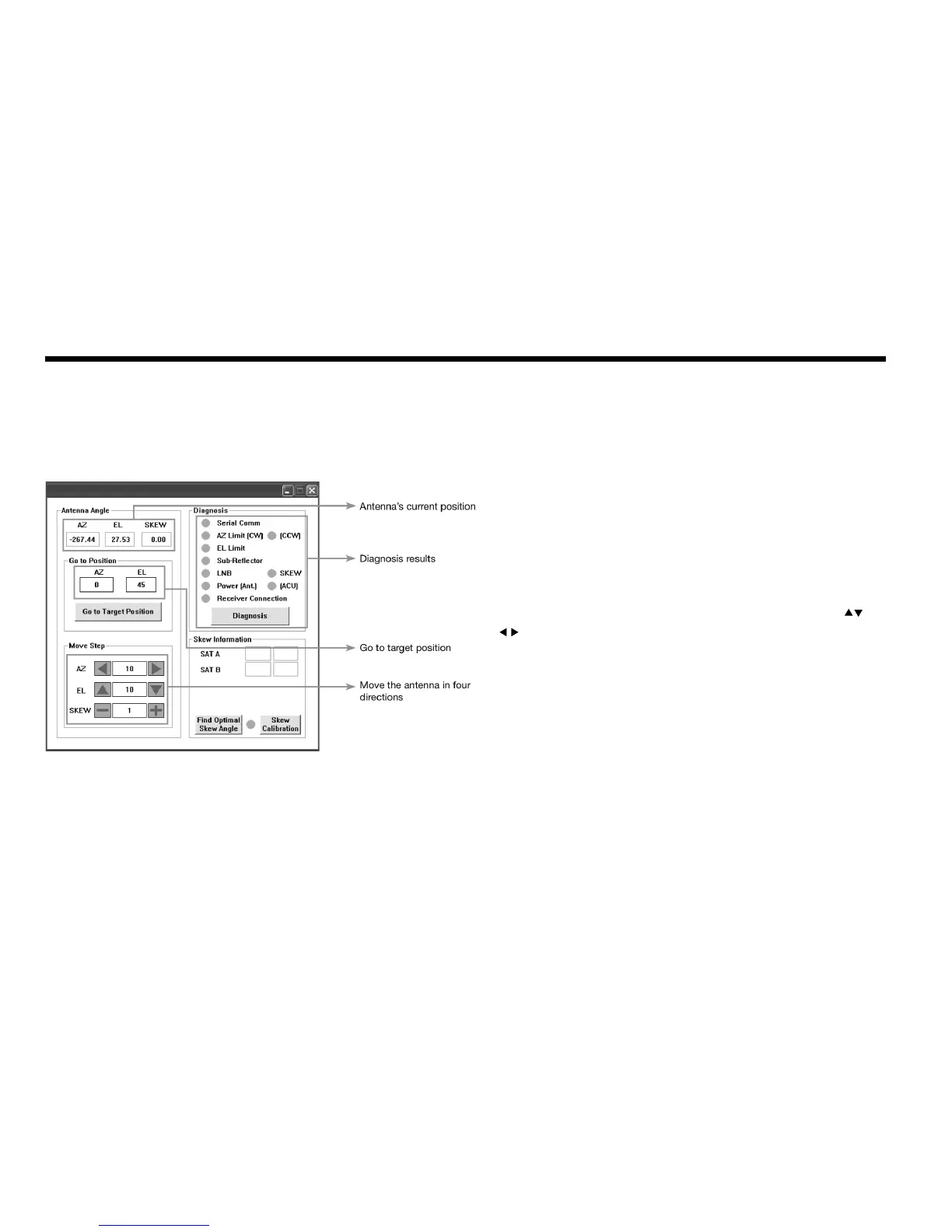

Figure 31 : Antenna Diagnosis
• Angle of Antenna
Two kinds of antenna movement is available. One is to move by the target
position and the other is to move by certain amount of angle. The current
position (angle) of the antenna is displayed as “Current” and to move to
the target position, push “Go to target Position” button after keying in
desired angle into “Target”. To move to a certain amount of angle only,
move antenna to direction of up or down, and CW or CCW by using
buttons after keying in the desired angle into the AZ and EL in the
“Move Step” box. Rotate LNB to direct the skew angle by using + – button
(Premium model only).
• Self-Diagnosis
If the “Diagnosis” button is pressed, it displays the results of the self-
diagnosis after the test is completed. The blue circle means the antenna
is normal; red represents abnormal and green represents the antenna is
under diagnosis.
Command Buttons
• Go to Target Position – To move the antenna to the present position.
• Diagnosis – To diagnose the antenna
(BLUE – Passed, RED – Failed, GREEN – Under diagnosis)
Move Antenna and Execute Antenna Diagnosis
