9
Hex.Bolt
5
Flat Washer
5
Spring Washer
5
Hex. Nut
5
Item
Qty
Item
Qty
Size
Self-Tapping Screw
5
(M4 X 16L)
Machine Screw
5
(M3 X 8L)
Antenna
ACU
Installation Kit
Contains the items required for securing the antenna unit and ACU to the
vessel.
Other Components
No Components Size Qty
1 ACU Bracket - 2
2 RG6(Antenna – ACU RF Cable) 15m 1
3 RG6(ACU – IRD Cable) 3m 1
4 Power Cable 10m 1
5 PC Serial Cable 1.8m 1
6 NMEA Connector 1.5m 1
7 Power Connector AK950-2 1
8
Hex Bolt
M6x35L 5
M6x50L 5
Tapping Screw
ø4x16L 5
ø3x8L 5
Flat Washer M6 10
Spring Washer M6 5
Nut M6 5
9 Aptus CD - 1
10 User Manual - 1
11 Mounting Template 1
12 Quick Installation Guide
- 1
Figure 05 : List of the Supplied Parts

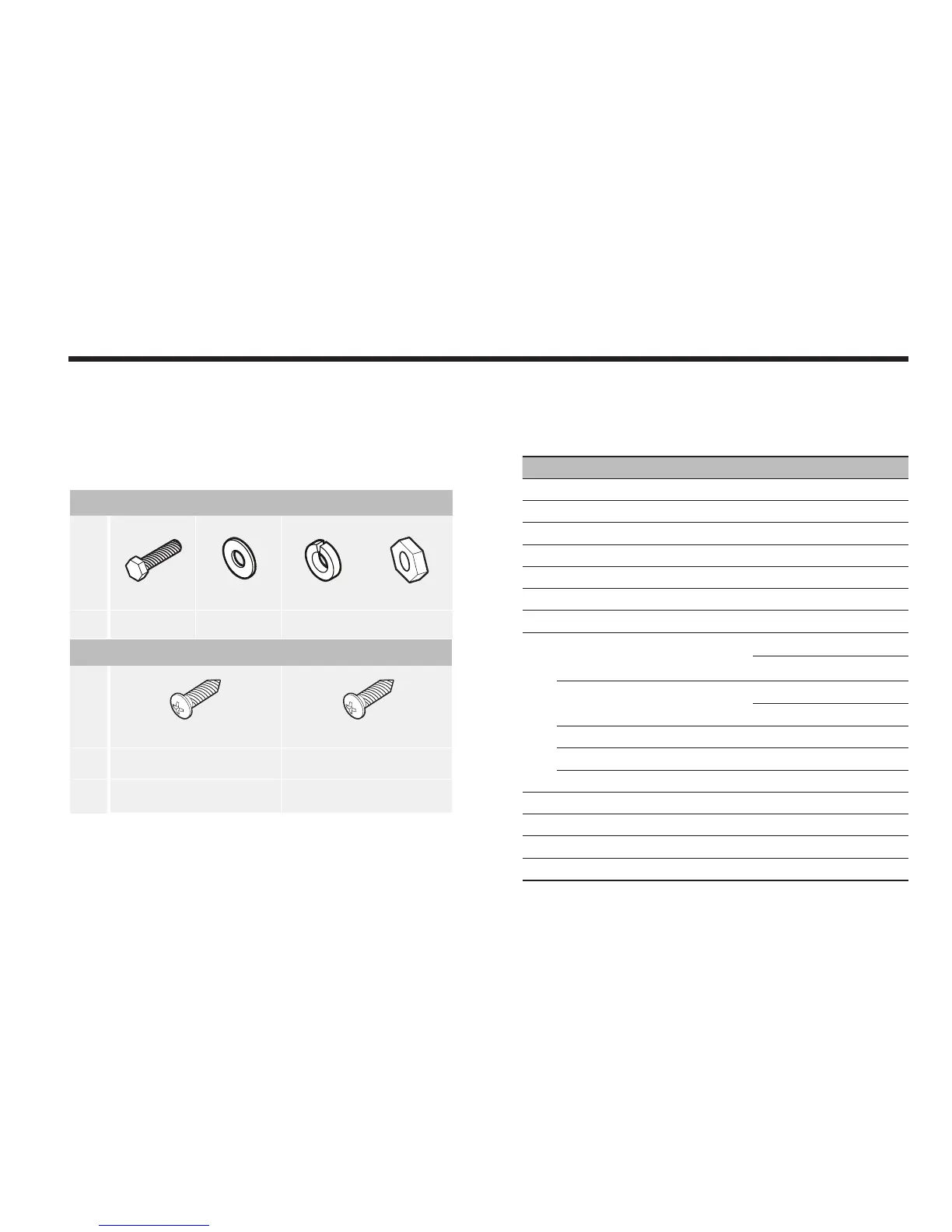

Figure 04 : Installation Bolt Kit
