Mounting the Antenna
Attach the antenna by using the hex head bolts (M8X35L), M8 spring
washers, and M8 at washers supplied.

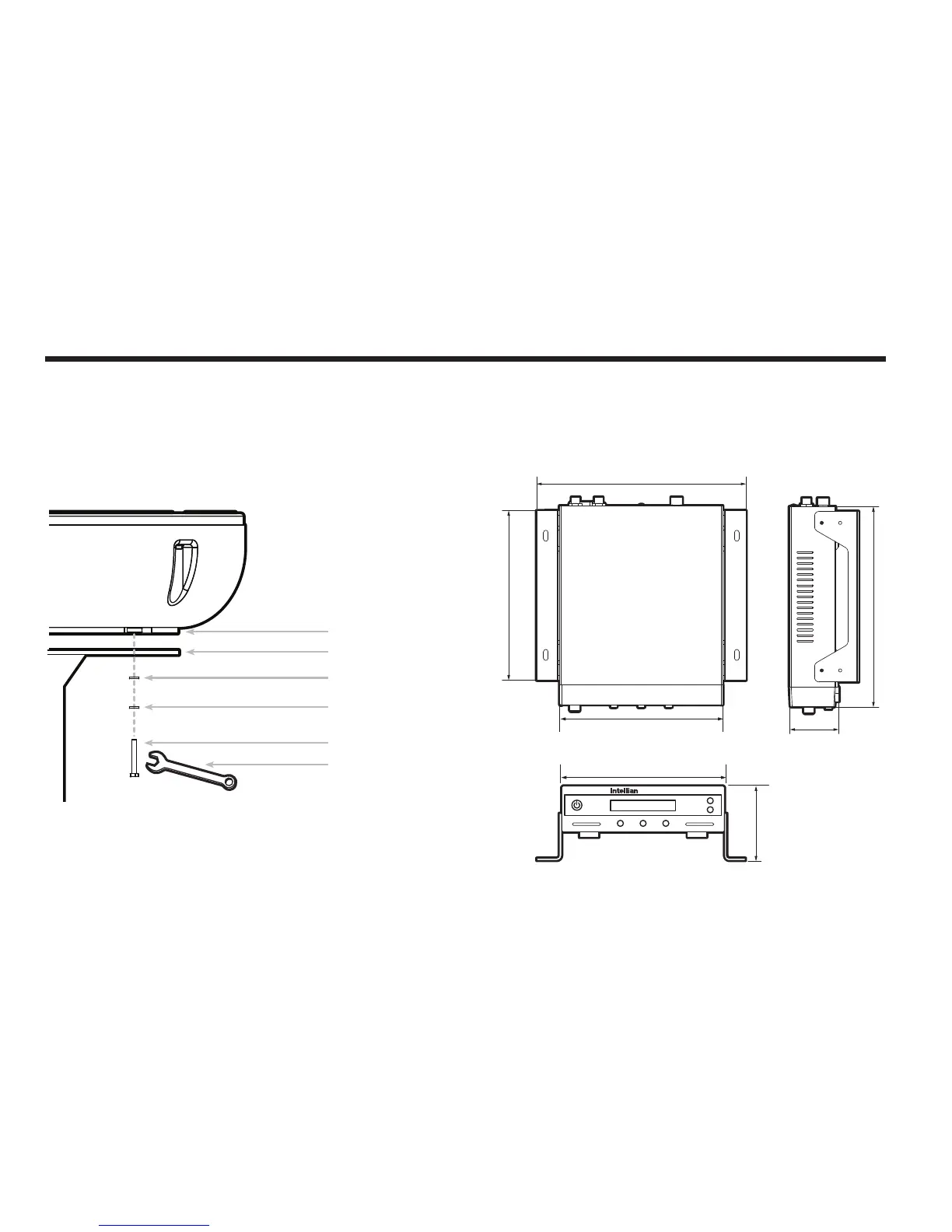

Figure 14 : Mounting the Antenna
Radome Base
Deck
M8 Flat Washer
M8 Spring Washer
M8 Hex. Bolt
13mm Spanner
ACU Dimensions
Installing the ACU
7.5 cm (2.95”)
17.8 cm (7”)
17.8cm (7”)
5.4cm (2.1”)
22.8cm(9”)
18.5cm (7.3”)
21.7cm(8.5”)
Figure 15 : Dimension of ACU
