Intellian Intelligent Mediator User Manual

21
Installation
5
4
3
2
1
Pins
Feamale Male
Connector
Threads
5
3
4
1
2
Sockets
Connector
Threads

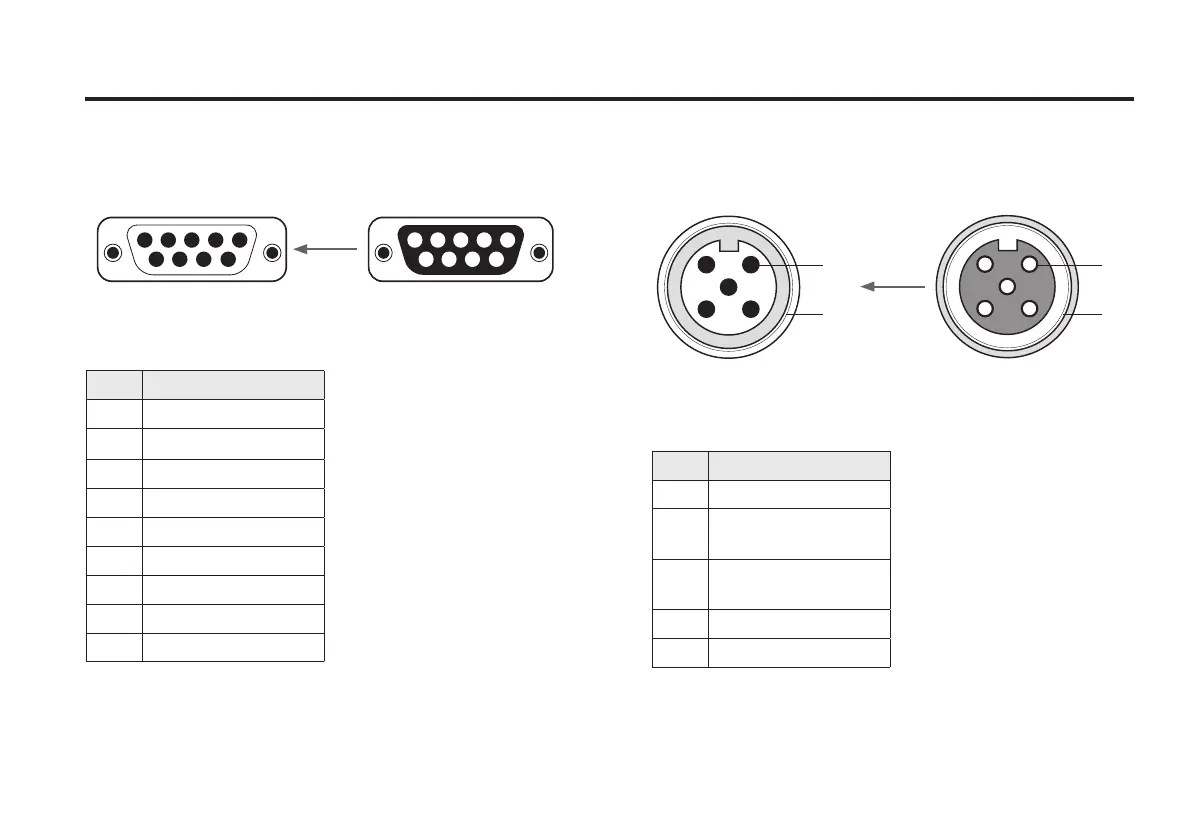

NMEA 2000 Connector
NMEA 2000 Connector
(Male Connector Type)
NMEA 2000 Connector
(Female Connector Type)
Intelligent Mediator:
Console Connector (Ka BUC Interface)
12345
6789
54321
9876
12345
6789
54321
9876
D-Sub 9 Pin-Console
(Female Connector Type)
D-Sub 9 Pin-Console
(Male Connector Type)
Pin Signal
1
MAX422_RXD+
2 MAX422_RXD-
3 MAX422_TXD+
4 GND
5 GND
6 MAX422_TXD-
7 KEYLINE_RXD+
8 KEYLINE_RXD-
9 N.C
Pin Signal
1
Shield
2
NET-S, (power
supply positive, +V)
3
NET-C, (power
supply common, -V)
4 NET-H, (CAN-H)
5 NET-L, (CAN-L)
Intelligent Mediator:
5
4
3
2
1
Pins
Feamale Male
Connector
Threads
5
3
4
1
2
Sockets
Connector
Threads
Cable Connector: Cable Connector:
