27
Aptus Web for the Mediator
Dashboard & Information

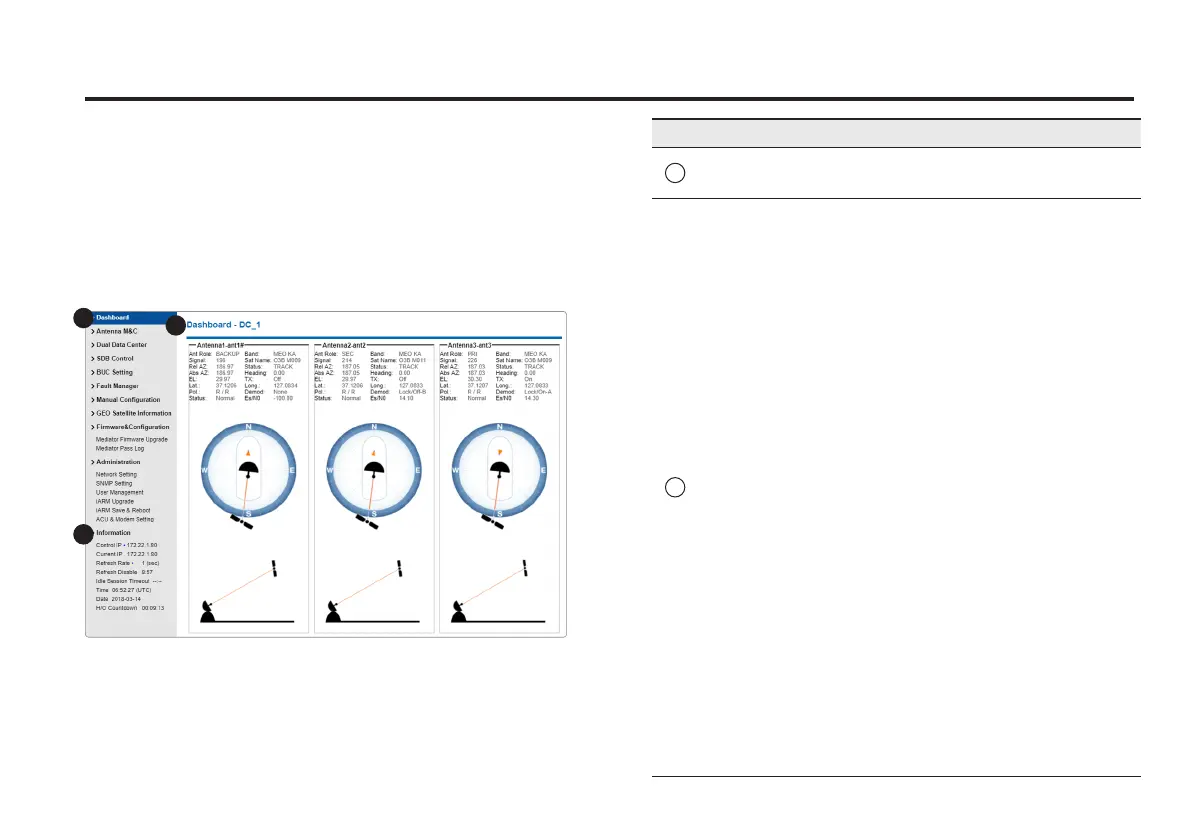

On the left side of the page, the Dashboard and Information
menus are displayed as below to provide quick monitoring of
the antenna status and settings. Other menus are displayed
only in the Control & Monitoring mode and their functions will
be described in the next sections.
2
1
3
No. Item Description
1
Dashboard
Displays current antenna status to be
quickly monitored.
2
Dashboard
Items
Displays the antenna name as
Antenna1/2/3-XX (XX is ACU’s
description). Set the description in the
“Administration-ACU & Modem Setting”
menu. Shows a graphical representation
of the current antenna position and
information to be quickly monitored.
- Ant Role: Displays the antenna Role
status.(PRI(Primary), SEC(Secondary),
Back(Backup)) The currently active
antenna is displayed as PRI(Primary)
Role. For MEO Ka-band satellites, the
antenna in the SEC(Secondary) status
is switched to the PRI(Primary) status
after the handover.
- Band: Displays band of the current
tracking satellite(NONE, C, KU,
KA(GEO KA), MEO KA). The KA(GEO
KA) is not supported yet.
- Signal: Displays antenna signal level.
- Sat Name: Displays the current
tracking satellite name.
- Rel AZ: Displays antenna relative
azimuth angle.
- Status: Displays status of the currently
active antenna(Setup, Search,
Tracking, etc.).
