14
Intelligent Mediator – Marine Satellite Communication System

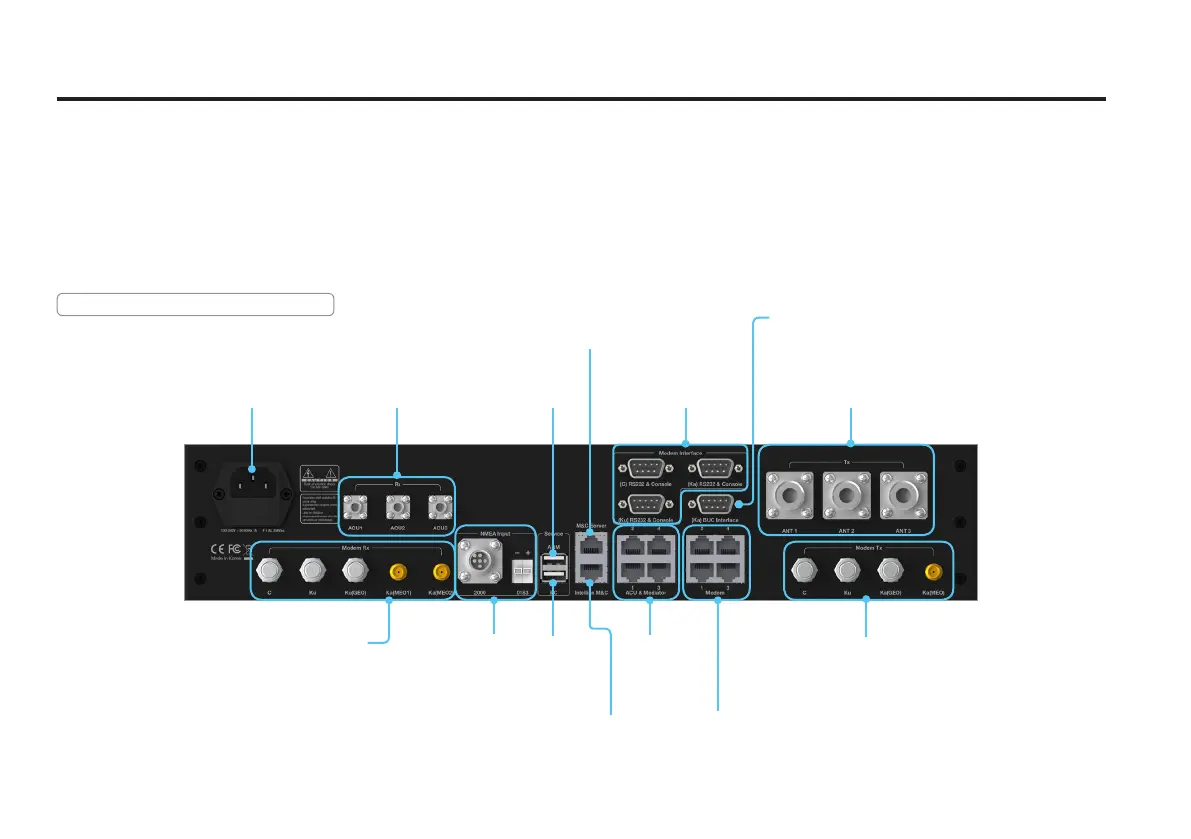

Name of Rear Panel
The following gure shows the mediator’s rear panel.
Cable Connection
Intelligent Mediator Unit: M3-TB03
NMEA 2000
& 0183 input
ACU &
Mediator
Ports
Modem Ports
Modem Tx Connectors
C/Ku/Ka(GEO)/Ka(MEO)
PC Port
Intellian M&C Port
Modem Rx Connectors
C/Ku/Ka(GEO)/
Ka(MEO1)/Ka(MEO2)
ARM Port
M&C Service
BUC Interface
(Ka)RS232&Console
Rx Connectors
ACU1/ACU2/ACU3
Tx Connectors
ACU1/ACU2/ACU3
Power Cord
Modem Interface
(C/Ka/Ku)
RS232&Console
