Intellian Intelligent Mediator - ACU and Modem Configuration

48
Intelligent Mediator – Marine Satellite Communication System

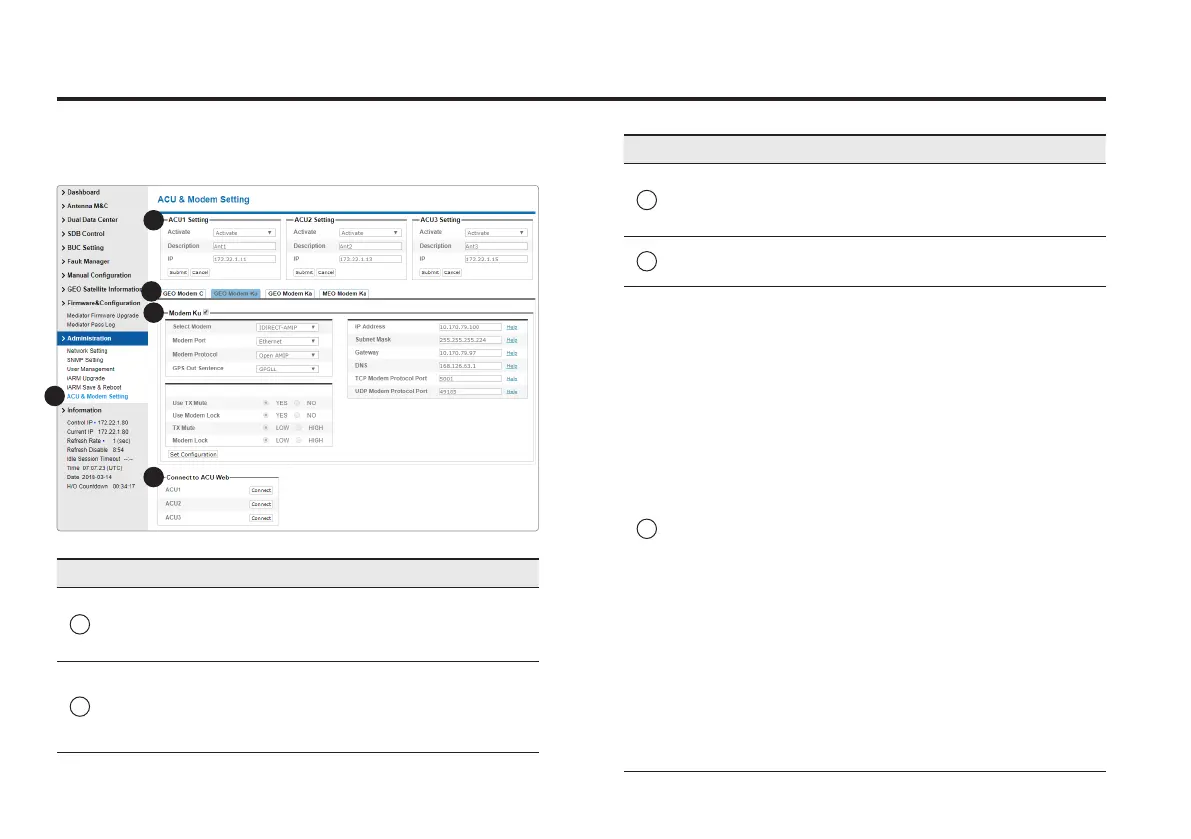

ACU & Modem Setting
2
1
3
4
5
No. Item Description
1
ACU &
Modem
Setting
Set ACU & Modem options.
2
ACU1/2/3
Setting
- Set ACU options to communicate
Mediator and ACU.
- Activate: Activate or Inactivate the
ACU communication.
No. Item Description
2
ACU1/2/3
Setting
- Description: Sets the ACU’s
description.
- IP: Sets the ACU IP address.
3
Modem
Type
Set modem options for each band.
4
Modem(xx)
- Select Modem: Select the modem
in the drop-down list.(USER
SETTING, IDIRECT-I/O, IDIRECT-
AMIP, COMTECH-I/O, COMTECH-
ROSS, HUGHES, SATLINK_SERIAL,
SATLINK_VACP, ELEKTRIKOM-
AMIP, GILAT-SE-II, IPSTAR_SOTM,
NEWTEC-AMIP)
NOTE: The MEO(Ka-band) can use
COMTECH and VIASAT modem only.
- Modem Port: Select the Modem Port
in the drop-down list.(RS232, RS422,
Ethernet)
- Modem Protocol: Select the Modem
Protocol in the drop-down list.(I/O
Console, Open AMIP, Serial, GPS,
ROSS VACP, ELEKTRIKOM-AMIP,
GILAT, SOTM, NEWTEC-AMIP)
- GPS Out Sentence: Select the GPS
Out Sentence in the drop-down list.
(GPGLL, GPGGA, Simple GPGGA)
- Use TX Mute: Select using TX Mute
function. (YES or NO)
