Intellinet 501903 User Manual

Wireless LAN Access Point Configuration
32

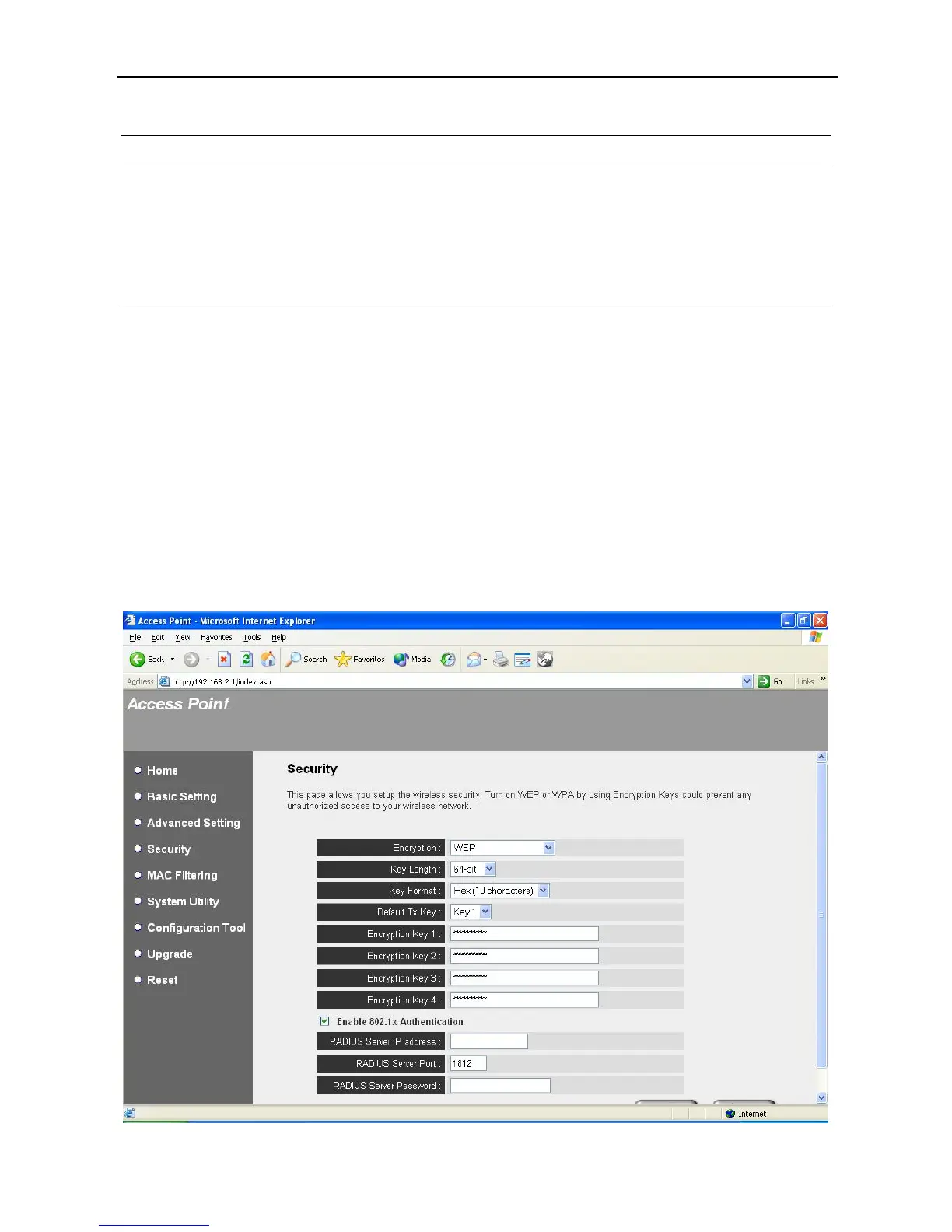

Parameter Description
RADIUS Server IP address
The IP address of external RADIUS server.
RADIUS Server Port
The service port of the external RADIUS server.
RADIUS Server Password
The password used by external RADIUS server.
Click Apply button at the bottom of the screen to save the above configurations. You can now configure
other advance sections or start using the Access Point.
802.1x WEP static key
IEEE 802.1x is an authentication protocol. Every user must use a valid account to
login to this Access Point before accessing the wireless LAN. The authentication is
processed by a RADIUS server. This mode also uses WEP to encrypt the data during
communication. You can use 802.1x with WEP encryption in “AP mode”, “AP
Bridge-WDS mode” and “Universal Repeater mode”.

Intellinet 501903 Specifications

General

Brand	Intellinet
Model	501903
Category	Wireless Access Point
Language	English
