20
CONfIGURATION

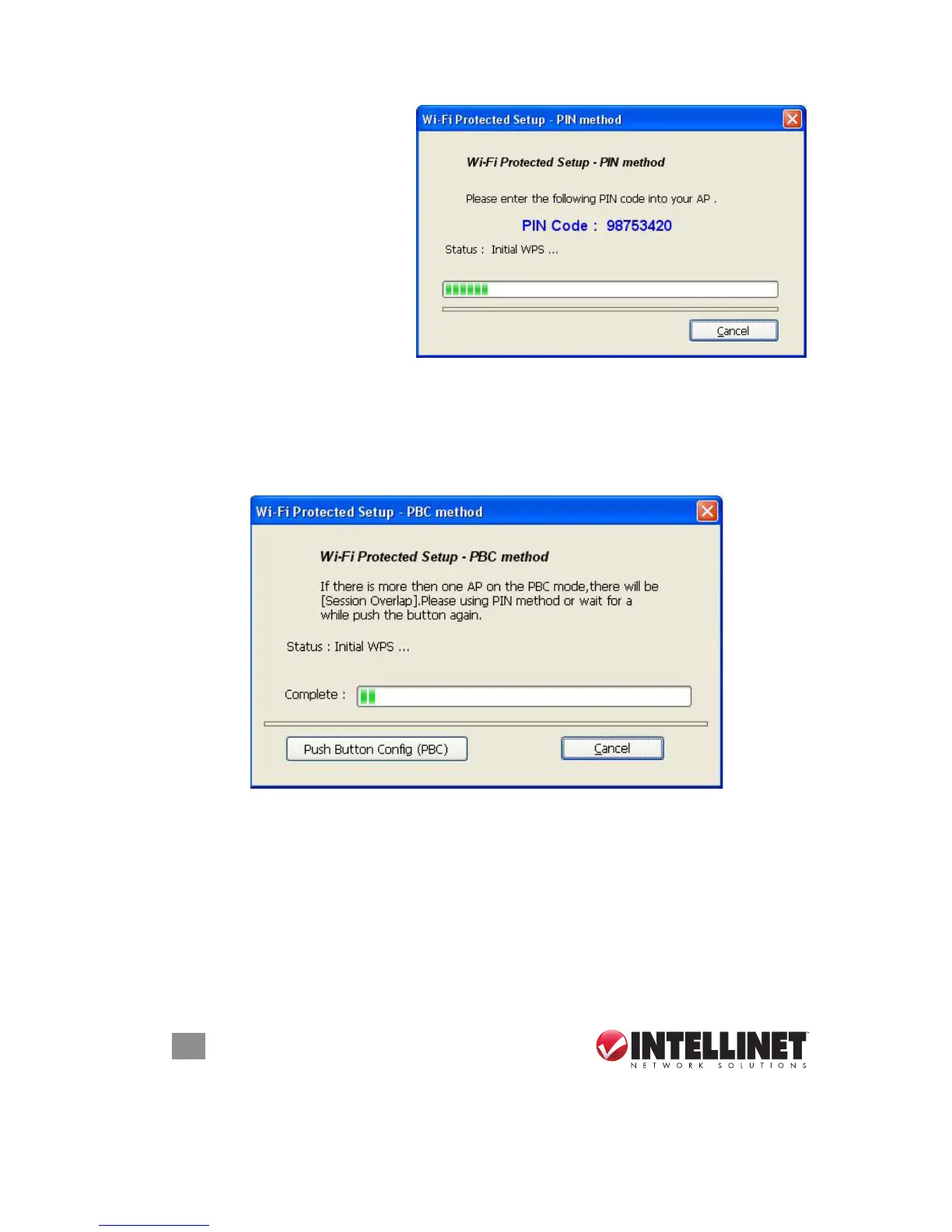

4. A Status screen will display
to indicate the progress of
the procedure, which can
take up to two minutes or
so. If a wireless access point
with the correct PIN code is
found, you’ll be connected
to it.
2.6.2 NETWORK SETUP USING PUSH BUTTON CONFIG (PBC)
1. Begin the PBC pairing procedure by setting up the access point. Refer to the
user manual of the wireless AP for instructions. Click “Push Button Cong (PBC)”
on the Wi-Fi Protected Setup screen to begin the wireless connection using
WPS. This procedure can take up to a minute to complete.
2. Once a successful WPS connection has been made between the wireless
adapter and the access point, details about the connected access point will be
displayed (as shown below).
