Intense m16 - ASSEMBLY: REAR TRIANGLE AND ADJUSTERS; CONNECTING REAR TRIANGLE TO BOX LINK; INSTALLING ADJUSTER CONES

10 // m16 user Manual
CONNECTING REAR TRIANGLE TO BOX LINK //

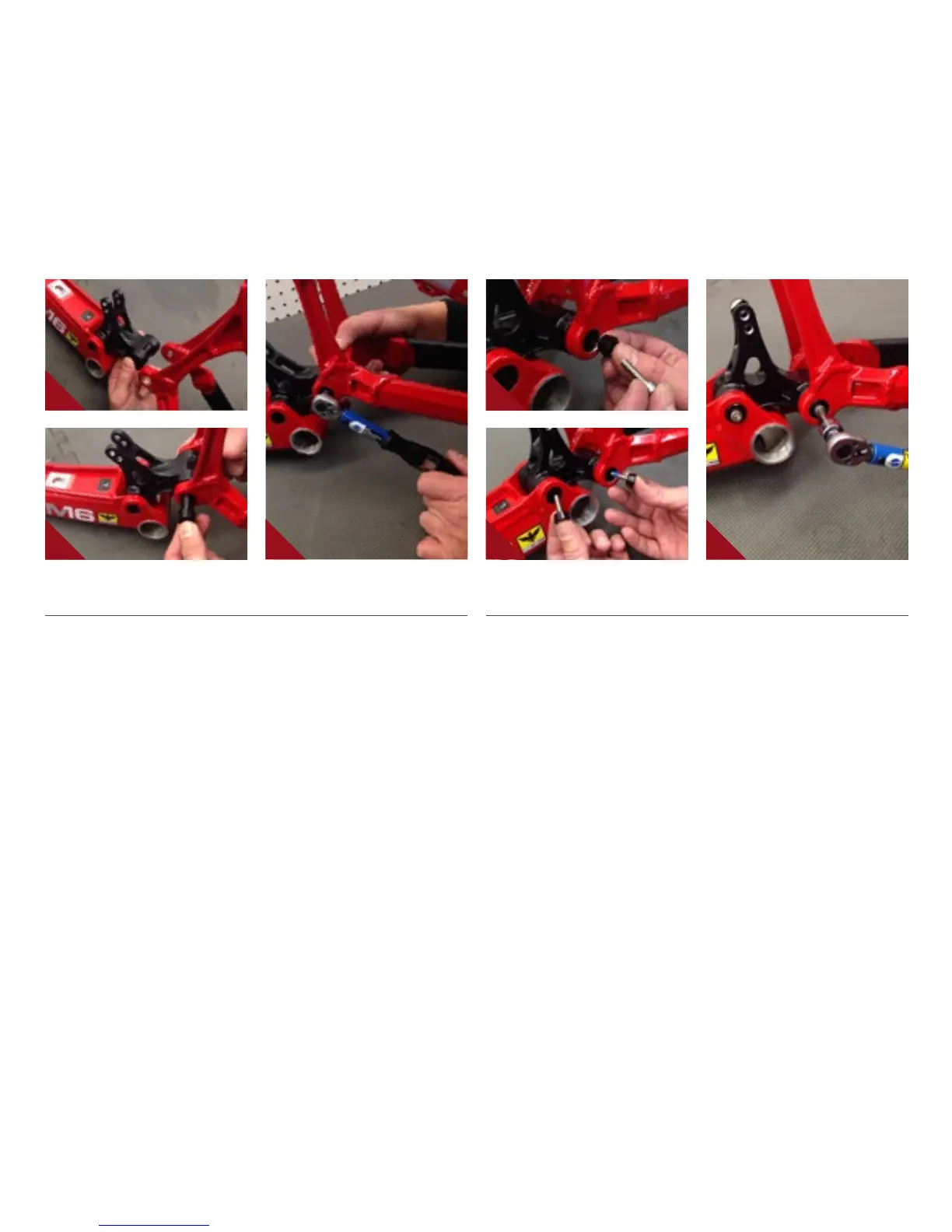

A Follow previous steps to connect rear triangle to box link (IMAGES #7-9).
INSTALLING ADJUSTER CONES //
A Grease and insert cone adjuster
(PART #130777) into head of main
pivot expander bolt (PART #130795)
with M6x22mm bolt (PART #410009)
inserted through cone adjuster (IMAGE
#10 & #11).
B Tighten M6x22mm bolt (PART
#410009) with 5mm allen and torque
to 125 in/lb (IMAGE #12).
7
8 9
10
1211
