Intense m16 - ASSEMBLY: SHOCK INSTALLATION; CONNECTING REAR TRIANGLE TO TOP LINK; INSTALLING REAR SHOCK

INTENSE CYCLES // 1 1

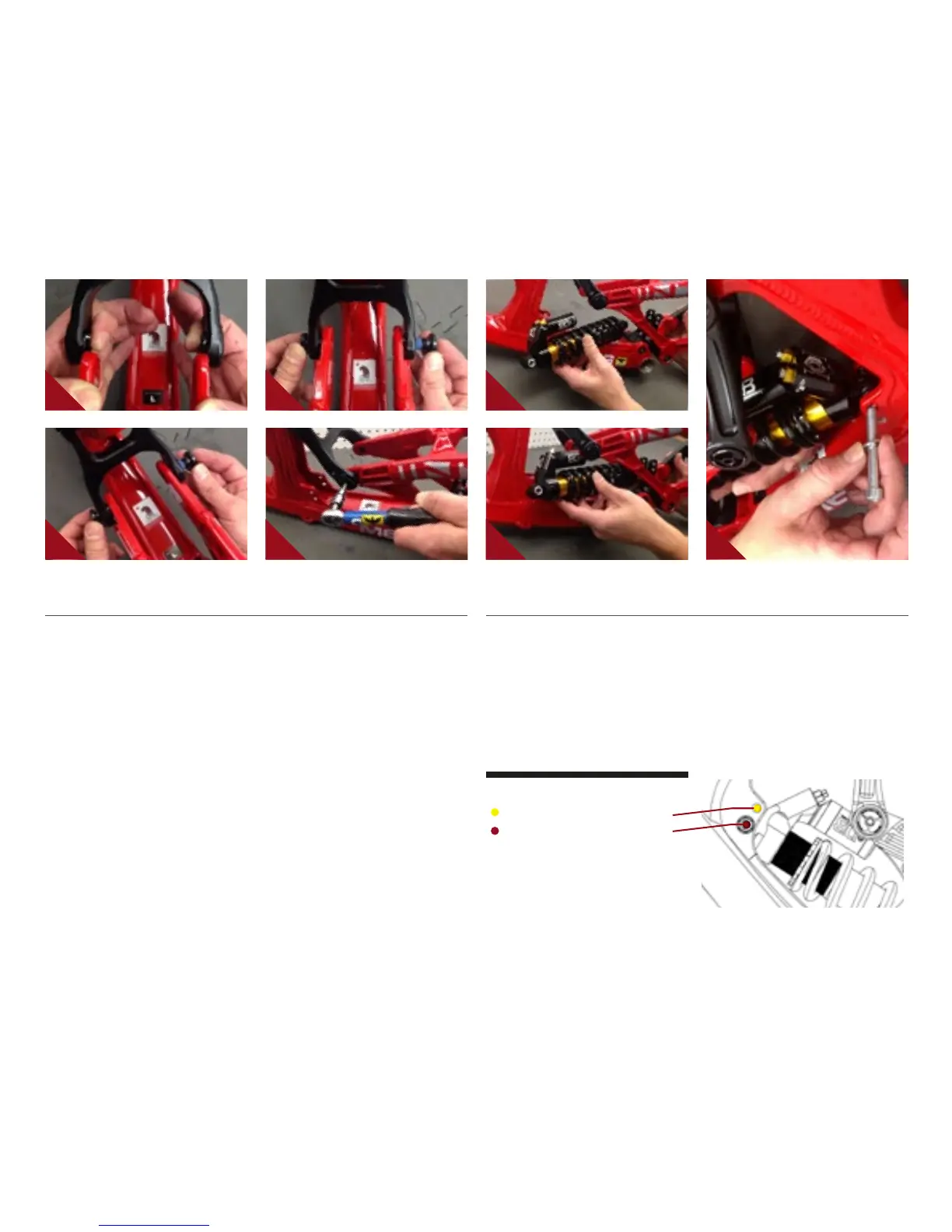

CONNECTING REAR TRIANGLE TO TOP LINK //
A Hold washer (PART #130784) against
inside of lower top link mount, then bring
rear triangle forward matching upper
pivot point to top link (IMAGE #13).
B Match shoulder bolts (PART #130785)
to top link and insert through linkage,
threading bolts into the rear triangle
while holding washer is in place between
bearing and linkage (IMAGE #14 & #15).
c Tighten shoulder bolts to 175 in/lb
(IMAGE #16).
INSTALLING REAR SHOCK //
A Holding rear shock with reservoir above
and forward, insert into frame with lower
eyelet towards shock mount on box link,
then bring forward shock eyelet to
forward shock mount (IMAGE #17 & #18).
B Install forward M8x60mm shock
mount bolt (#410012) with 8mm washer
(#420004) on bolt head through drive
side of frame to the desired progression
setting (IMAGE #19).
1713 15
191814 16
Shock curve progression
upper mount: more progressive
lower mount: less progressive
