12 // m16 user Manual

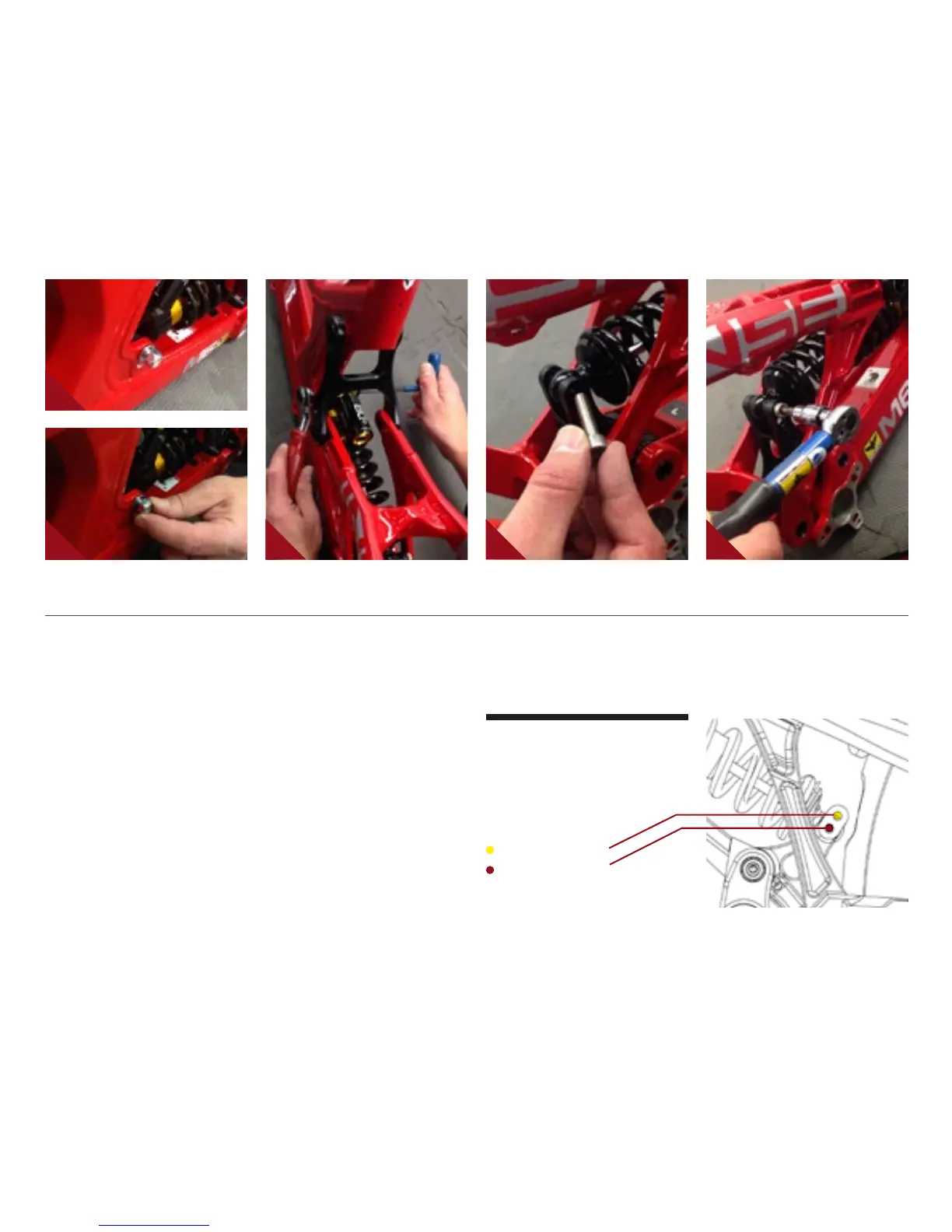

INSTALLING REAR SHOCK (CON'T) //
C Match second 8mm washer (PART
#420004) to threads on non-drive side
of forward shock mount bolt (PART
#410013), then thread 8mm nut (PART
#400005) on to forward shock mount
bolt (IMAGE #20 & # 21).
d Hold nut with 8mm wrench and tighten
opposite side with 6mm allen to 140 in/
lb (IMAGE #22).
e Match rear eyelet of shock to box link shock mount and thread bolt through top link
at desired travel setting. Tighten with 6mm allen to 140 in/lb (IMAGE #23 & #24).
20
24232221
adjustable travel
the box link shock mount features
dual mounting positions which allow
you to choose between 215mm and
241mm of rear travel.
upper mount: 215mm
lower mount: 241mm
