INTENSE CYCLES // 1 3

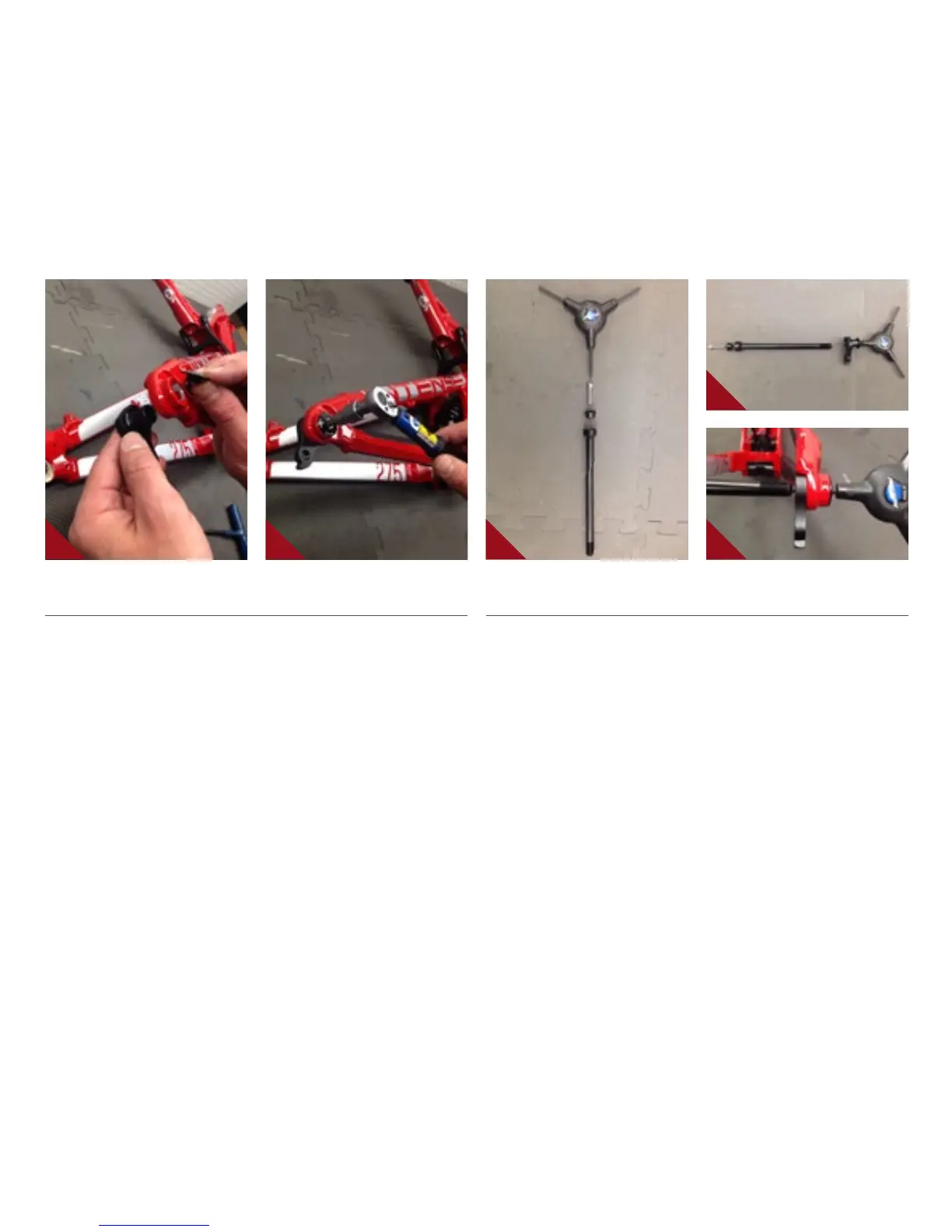

INSTALLING DERAILLEUR HANGER //
A Grease outer edges of derailleur hanger
(#130790) and insert into frame from
inside of rear triangle, matching hanger
bolt (PART #130798) to hanger threads
from the outside of the frame (IMAGE #25).
B Tighten hanger bolt using 6mm allen
to 100 in/lb (IMAGE #26).
REAR AXLE INSTALLATION //
A The M16 uses a rear axle with an
expanding collet system similar to our
main pivot bolts. This ensures a secure
fit between the axle and frame. To install
rear axle, insert threaded end of axle
through non-drive side dropout until it
reaches female threaded end of hanger.
You can then insert a 5mm allen through
opening on the hanger bolt, which will
allow you to tighten axle in a counter-
clockwise (rearward) direction to 100
in/lb. You may then grease and install
the cone adjuster into the opening on
the non-drive side of the axle, then
insert M6x25mm bolt into cone adjuster
and tighten to 125 in/lb (AXLE IMAGES
#27-29).
25
26 27
28
29
