Caution for Speaker Connection
Caution for Speaker Connection

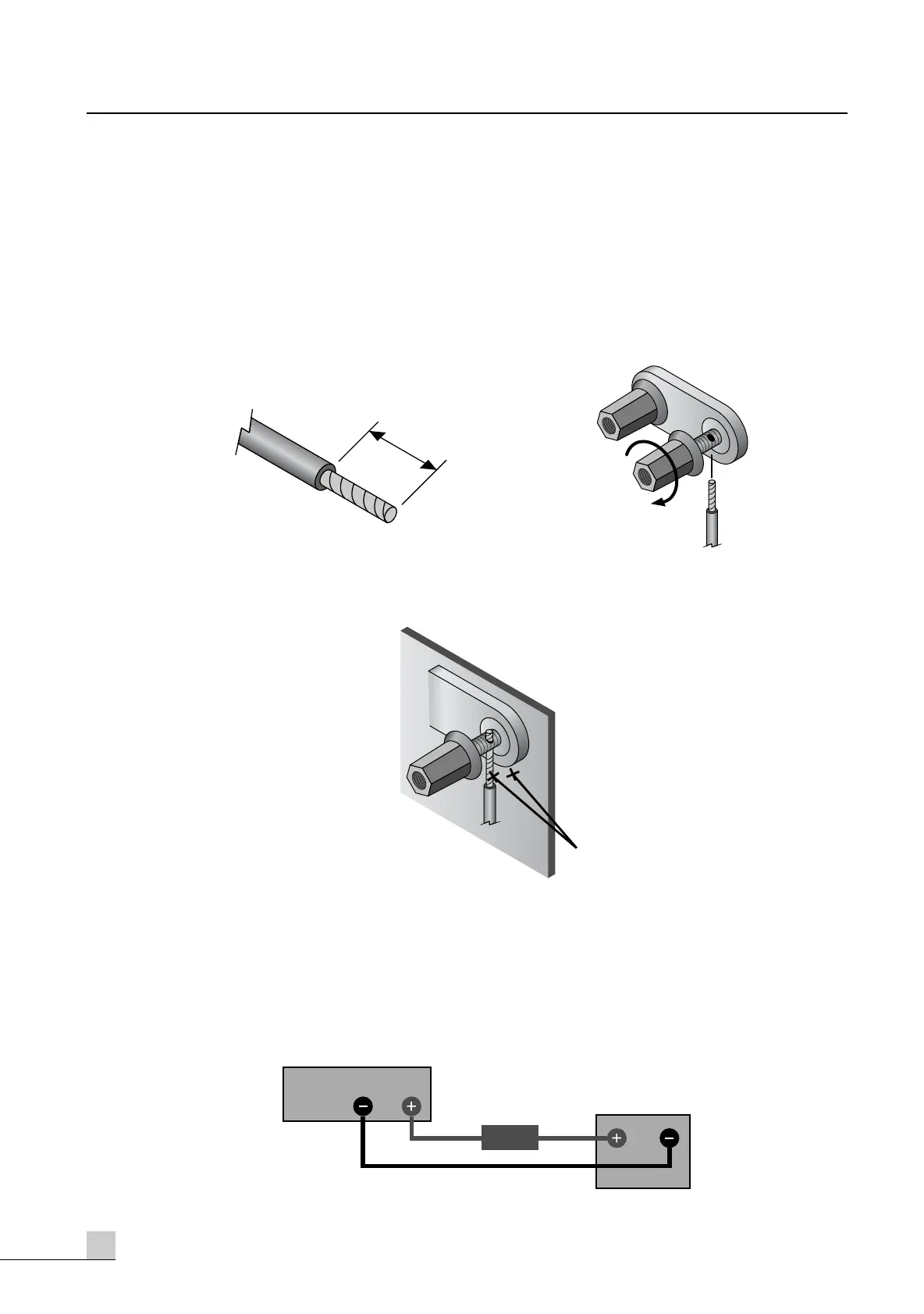

1. Turn off the POWER switch.
2. After removing approx. 10mm of insulation from the ends of the speaker cables, pass the bare ends of
the speaker wires through the holes in the corresponding speaker terminals and tighten the terminals to
securely clamp the wires.
Refer to page 8 for speaker porality.
At this time make sure that the bare ends of the speaker cables do not extend from the terminals in such
a way that they touch the chassis.
• SPEAKER FUSE
The output capacity of your amplifier is very high: 1000W+1000W (4Ω) in stereo and 2000W (8Ω) in
monaural on the M-2000: 750W+750W (4Ω) in stereo and 1500W (8Ω) in monaural on the M-1500.
Be sure to use a speaker system that has sufficient input capacity.
If the input capacity of your speaker system is lower than the rated output of the power amplifier, you
can protect your speakers by connecting a fuse serially between the speaker and amplifier as shown
below.
10
M-1500/2000
POWER AMPLIFIER
Wire should not
touch the chassis
POWER AMPLIFIER
SPEAKER SYSTEM
FUSE
