M-1500/2000
POWER AMPLIFIER
Use the following formula to determine the fuse capacity according to the speaker’s input capacity.
Po = I 2 R I =
P0 [W]: Speaker’s continuous input capacity (noise or RMS)
R [Ω]: Speaker’s nominal impedance
I [A] : Required fuse capacity
ex.) Speaker’s continuous input capacity: 100W
Speaker’s impedance: 8Ω
I = = 3.5
In this example, the required fuse capacity is calculated as 3.5 [A].
- SPEAKER CABLE
If you use a long speaker cable, use as thick a cable as possible to prevent deterioration of the damping
factor or power loss inside the cable. Even the thickest cable can be used for the speaker terminal of this
unit.
Portable Rack Mounting
Use the following formula to determine the fuse capacity according to the speaker’s input capacity.
Po = I 2 R I =
P0 [W]: Speaker’s continuous input capacity (noise or RMS)
R [Ω]: Speaker’s nominal impedance
I [A] : Required fuse capacity
ex.) Speaker’s continuous input capacity: 100W
Speaker’s impedance: 8Ω
I = = 3.5
In this example, the required fuse capacity is calculated as 3.5 [A].
- SPEAKER CABLE
If you use a long speaker cable, use as thick a cable as possible to prevent deterioration of the damping
factor or power loss inside the cable. Even the thickest cable can be used for the speaker terminal of this
unit.
Portable Rack Mounting

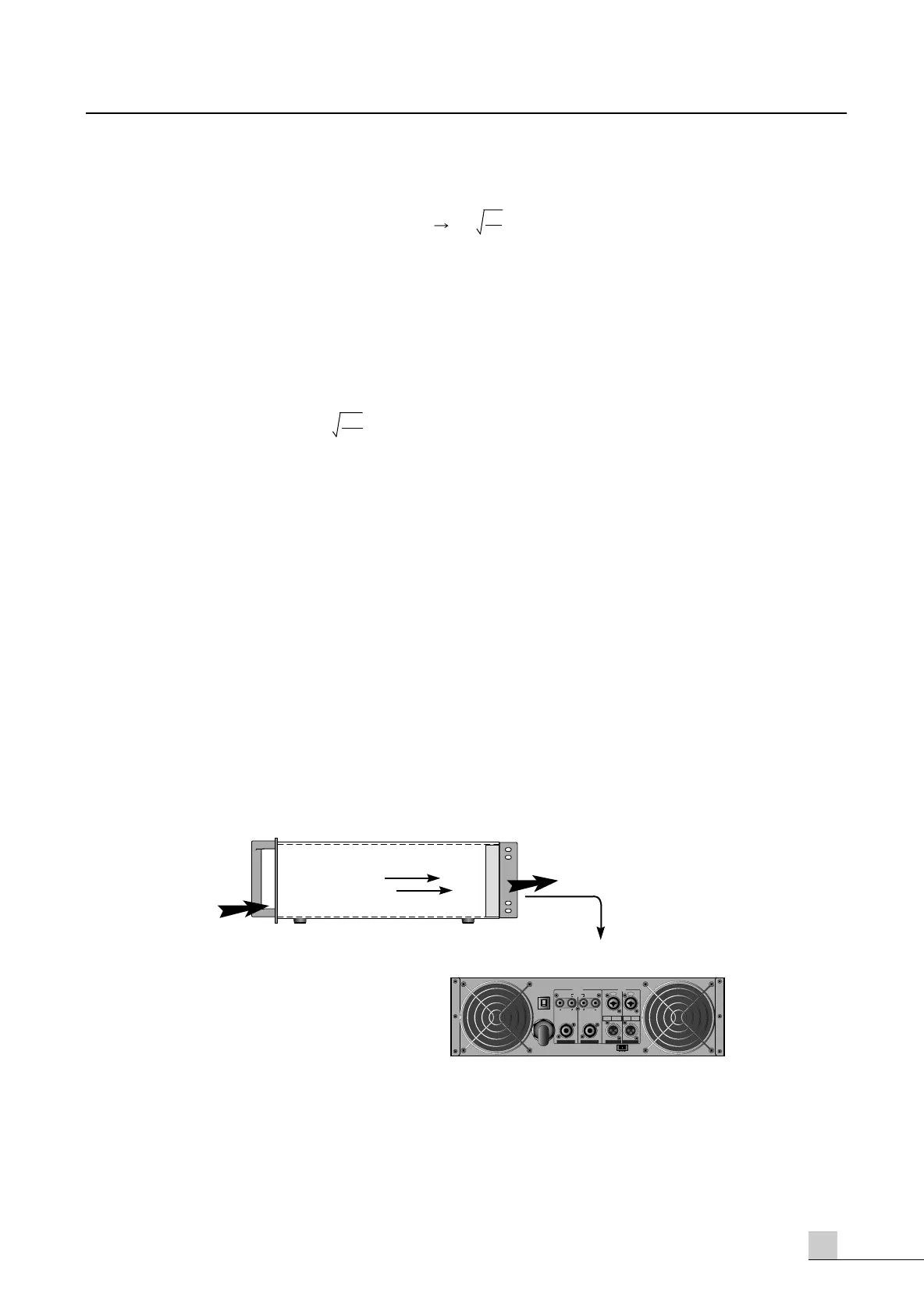

The amplifier intakes cool air through the front panel and exhausts warm air out the rear panel. When
mounting amplifiers in a portable rack, make sure the rear panel is completely open for ventilation.
Po
R
100
8
FAN
Air Intake
Air Exhaust
Front
(Side View)
(Rear View)
Completely Open
PUSH TO RESET
20A / 250V
(4Ω ~ 8Ω)(4Ω ~ 8Ω)
BRIDGED
(8Ω~16Ω)
(4Ω ~ 8Ω)(4Ω ~ 8Ω)
CH 1CH 2
OUTPUT
BALANCED
0dBm
BALANCED
0dBm
CH 1CH 2
~AC
230V 50Hz, 1300W
STEREO
BRIDGED
PARALLEL
INPUT
XLR
BALANCED
¥3=COLD
¥2=HOT
¥1=GND
¥TIP=HOT
¥RING=COLD
¥SLEEVE=GND
TRS
BALANCED
PUSH PUSH
