22 TruVision Series 3 IP Camera FW3.1 Configuration Manual

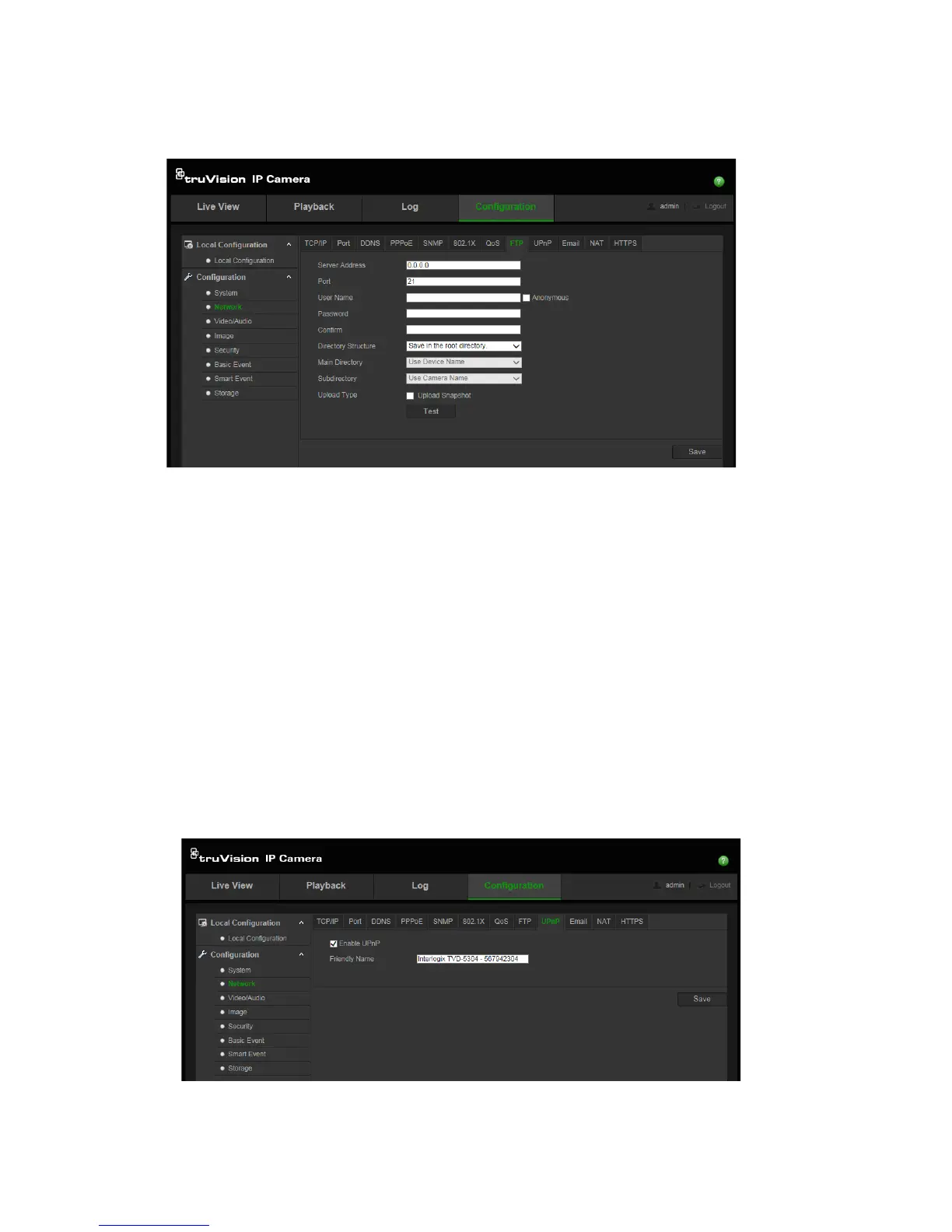

To define the FTP parameters:
1. Click Configuration > Network > FTP.
2. Configure the FTP settings, including server address, port, user name,
password, directory, and upload type.
Anonymous: Check the check box to enable the anonymous access to the
FTP server.
Directory: In the Directory Structure field, you can select the root directory,
main directory and subdirectory. When the main directory is selected, you
have the option to use the Device Name, Device Number or Device IP for the
name of the directory. When the subdirectory is selected, you can use the
camera name or camera number as the name of the directory.
Upload type: To enable uploading the snapshots to the FTP server.
3. Click Save to save changes.
To define the UPnP parameters:
1. Click Configuration > Network > UPnP.
