Intermec EasyCoder PD41 Spare Parts

Chapter 2 — Spare Parts
8 EasyCoder PD41 and PD42 Printer Spare Parts Catalog

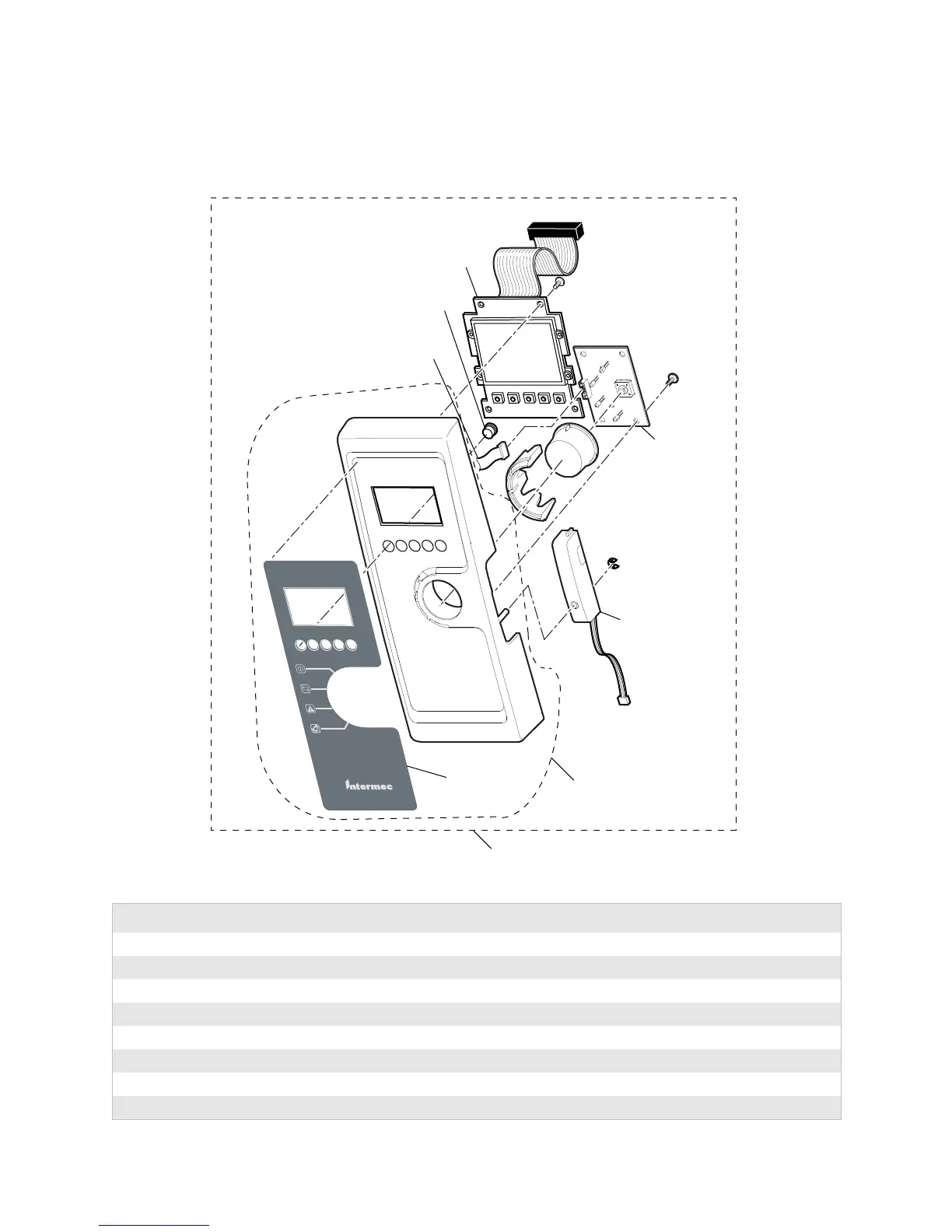

Panel Module, Left (PD42)
Screw
(4 places)
Screw
(4 places)
EasyC
od
er PD42
1
5
6
4
3
7
8
2
Callout Part Number Description Remarks
1 1-207132-001 Panel module, left (PD42) Complete unit.
2 141-000112-902 Cable Display console board to main board.
3 1-971163-900 Console board
4 151-000026-902 Label-taken sensor kit Including cable.
5 1-207133-001 Front panel with overlay assembly
6 1-207134-001 Overlay, front panel
7 1-207144-001 Button Display Comes with one button only (requires 5).
8 160-000186-000 LCD PCB assembly with cable

Intermec EasyCoder PD41 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power requirements	100-240 VAC ±10%, 45-65 Hz
Media thickness	2.3 - 9.8 mm
Maximum label width	104 mm
Maximum label length	0.15 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	453 mm
Width	273 mm
Height	270 mm
Weight	13000 g
