Intermec EasyCoder PD41 - Print Unit Parts

Chapter 2 — Spare Parts
10 EasyCoder PD41 and PD42 Printer Spare Parts Catalog

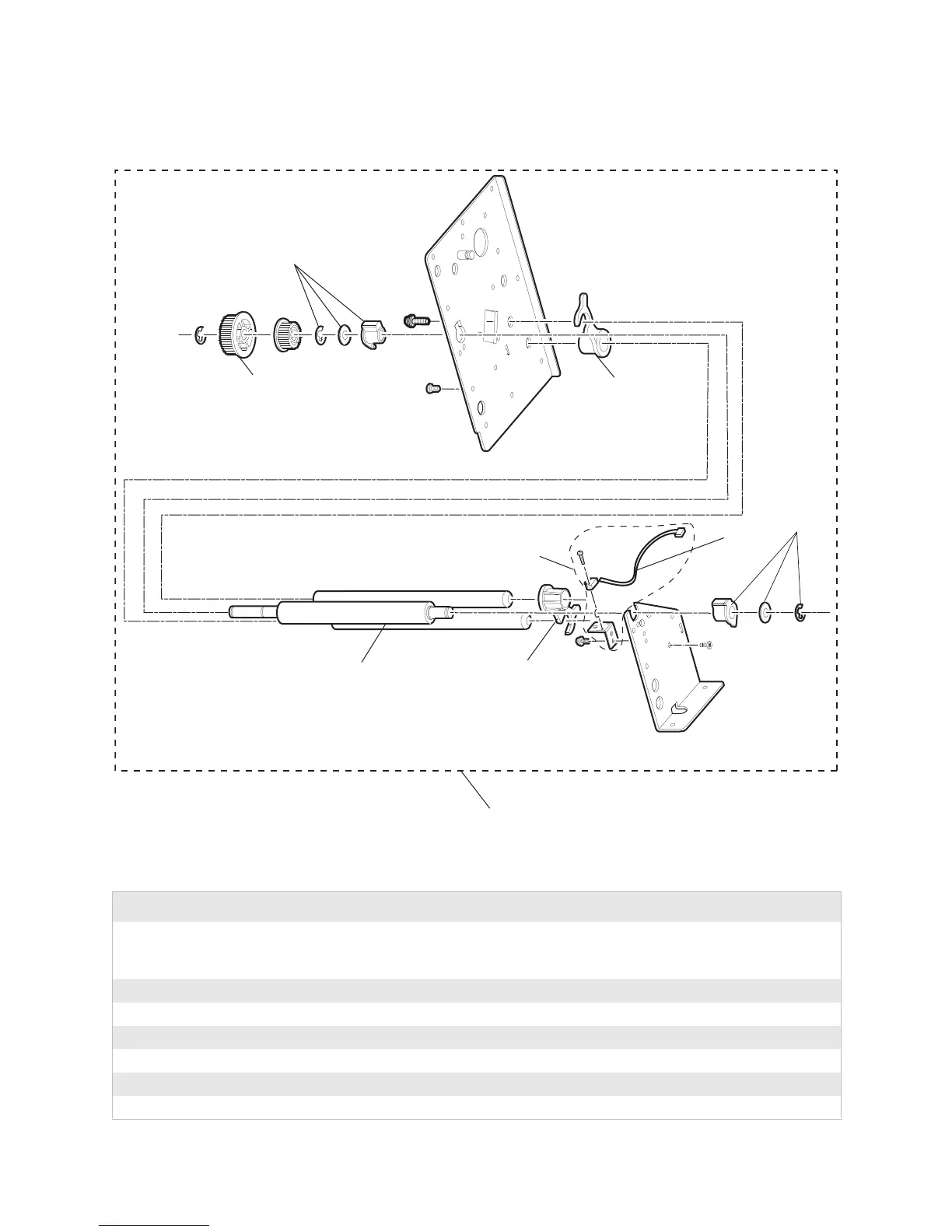

Print Unit Parts
Callout Part Number Description Remarks
1 141-000133-902 Print unit assembly The print unit assembly includes the pressure
box assembly and TPH lever kit, as shown on
page 11.
2 701-001600-001 Pulley 44 tooth gear
3 700-035903-001 Media guide, inner
4 700-030503-001 Media guide, outer
5 141-000054-902 Platen module
6 162-000008-002 Headlift sensor with cable
7 141-000131-902 Headlift sensor with cable and bracket
7
6
Screw
(4 places)
Screw
(2 places)
Screw
Screw
(2 places)
Screw
(3 places)
2
5
4
3
5
5
1
