Chapter 3 — Replacing Parts
40 EasyCoder PD41/PD42 Printer Service Manual
Ink Position Knob
The ink position knob is used to set the printer for thermal transfer ribbon
wound with the ink facing either outwards or inwards.
The Ink Position Knob
To remove the ink position knob
1 Disconnect the power cord and remove the left-hand panel (For help,
see “To remove the left-hand panel” on page 27).
2 Disconnect the spring from the ink position knob inside the electronics
compartment using tweezers or a pair of narrow-tipped pliers.
3 Move the knob to the center of the slot, rotate it a quarter of a turn, and
pull it out into the media compartment.

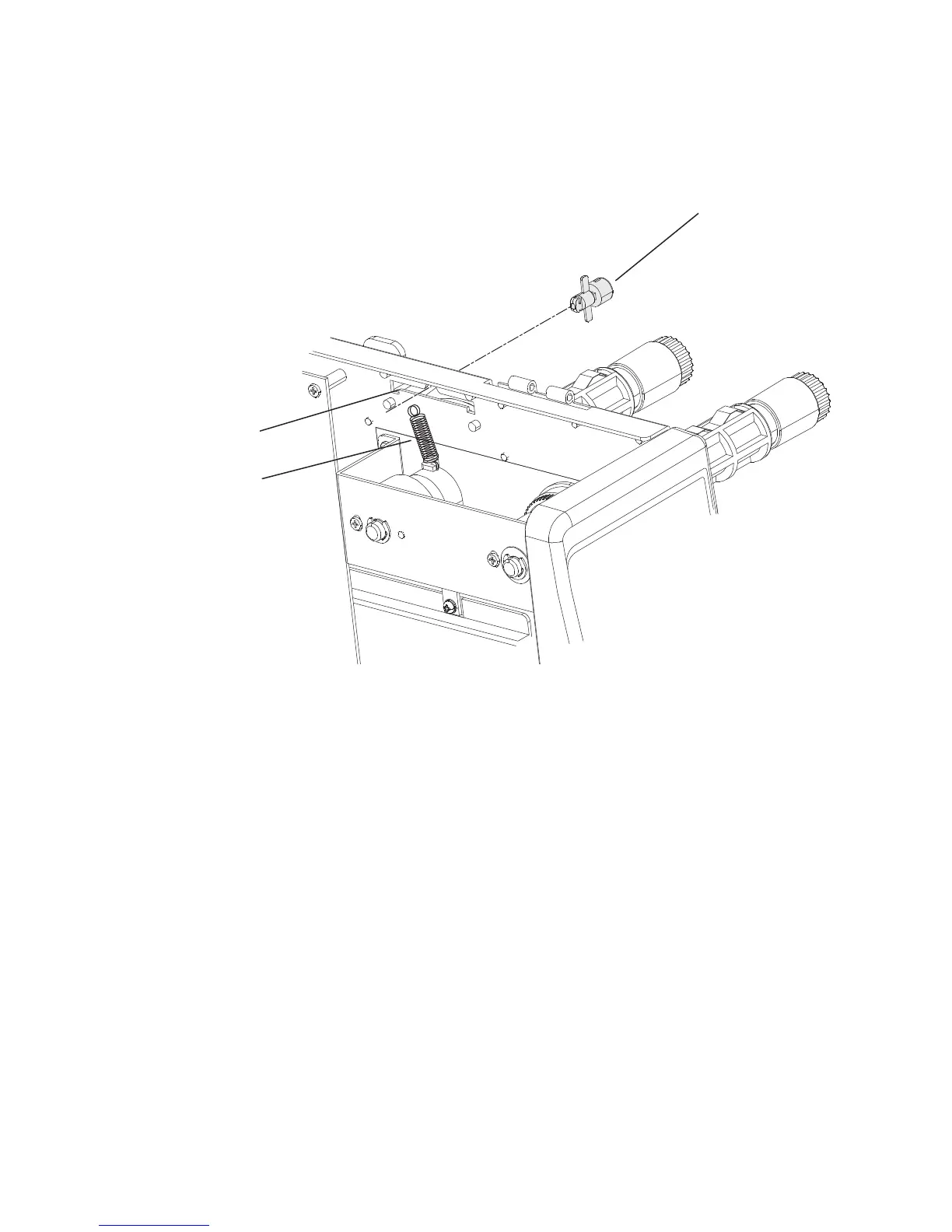

Ink Position Knob
Slot
Spring
