Chapter 1 — Getting Started
8
IF2 Network Reader User’s Manual
T
o
assign an initial IP address
1
Open a serial connection to the IF2. For help, see
“Opening a
Serial or USB Connection to the IF2” on page
54.
2
Typ
e
config
an
d press
Enter
, and then type
config
again in
the
P
assword
f
ield and press
Enter
. The IF2 Initial Conf
iguration
screen appears.

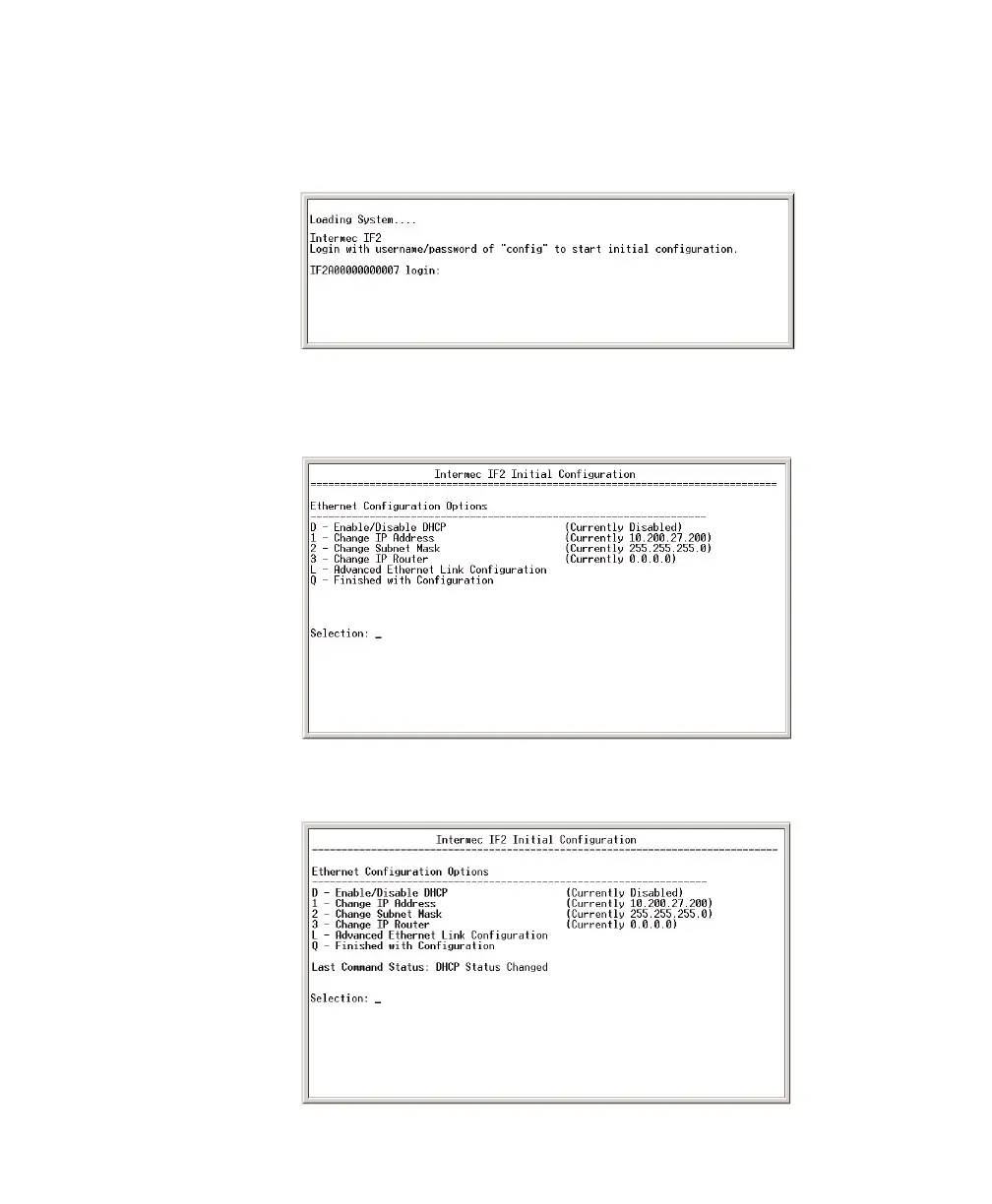

3
If DHCP is enabled, press
D
. DHCP is disabled and the Ethernet
Conf
iguration Options screen appears.
17
19
