24 PB3 Mobile Printer User’s Guide
11 Select Control > Macro.
12 Browse to the location of the
ConfigurationHardwareInformationTTMacro.ttl file.
13 Select and open the file.
14 In the Enter Printer MODEL Number field, enter the printer
model number from the configuration test page, and click OK.
15 In the Enter Printer SERIAL Number field, enter the printer
serial number from the configuration test page, and click OK.
16 In the Enter Wireless DEVICE Address field, enter the wireless
device address from the configuration test page, and click OK.

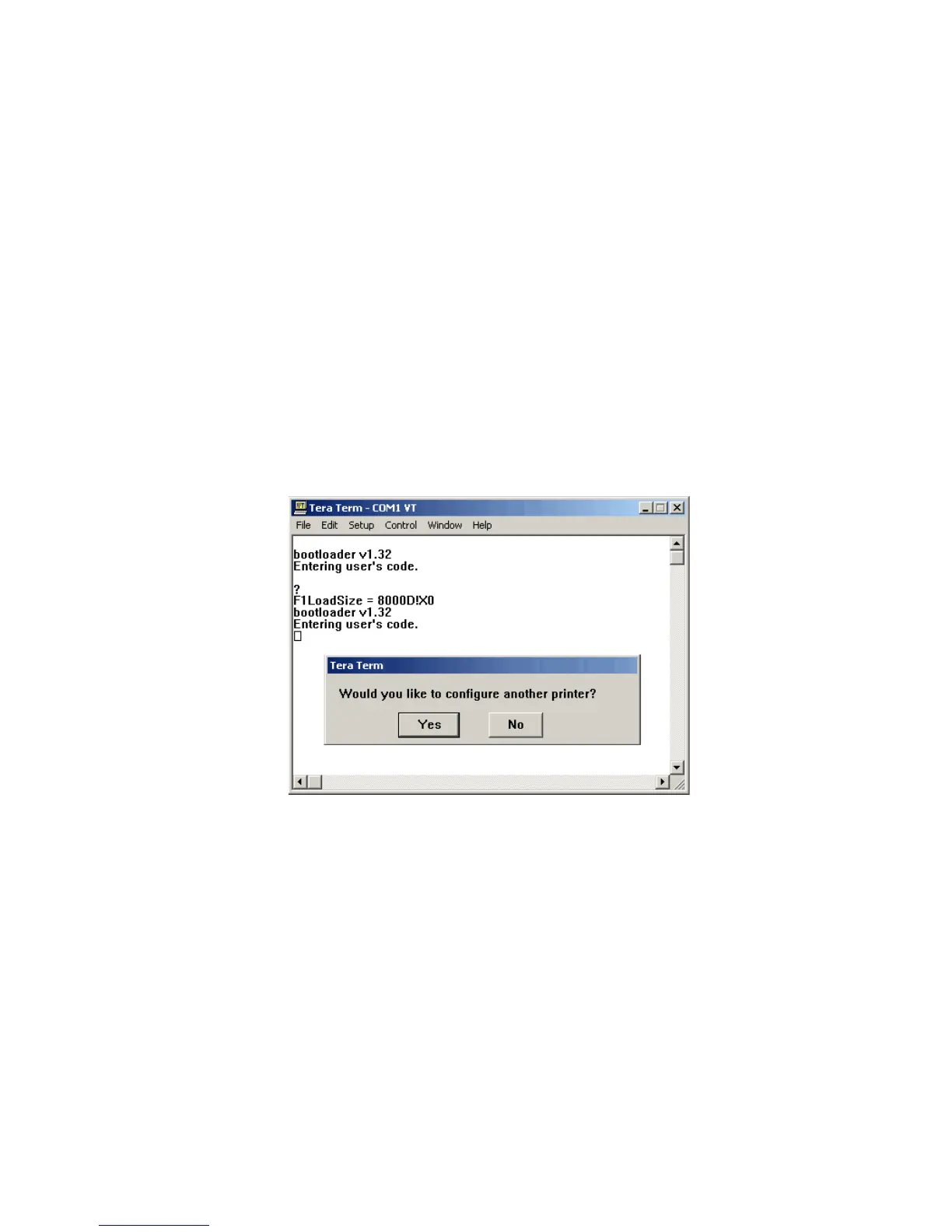

When the hardware configuration process is done, the Flash load
message and bootloader message appear.
17 Print a configuration test page. For help, see “Printing a
Configuration Test Page” on page 11.
18 Make sure that the Model Number, Serial Number, and Device
Address on the test page you printed in Step 17 matches the
information on the test page you printed in Step 1.
