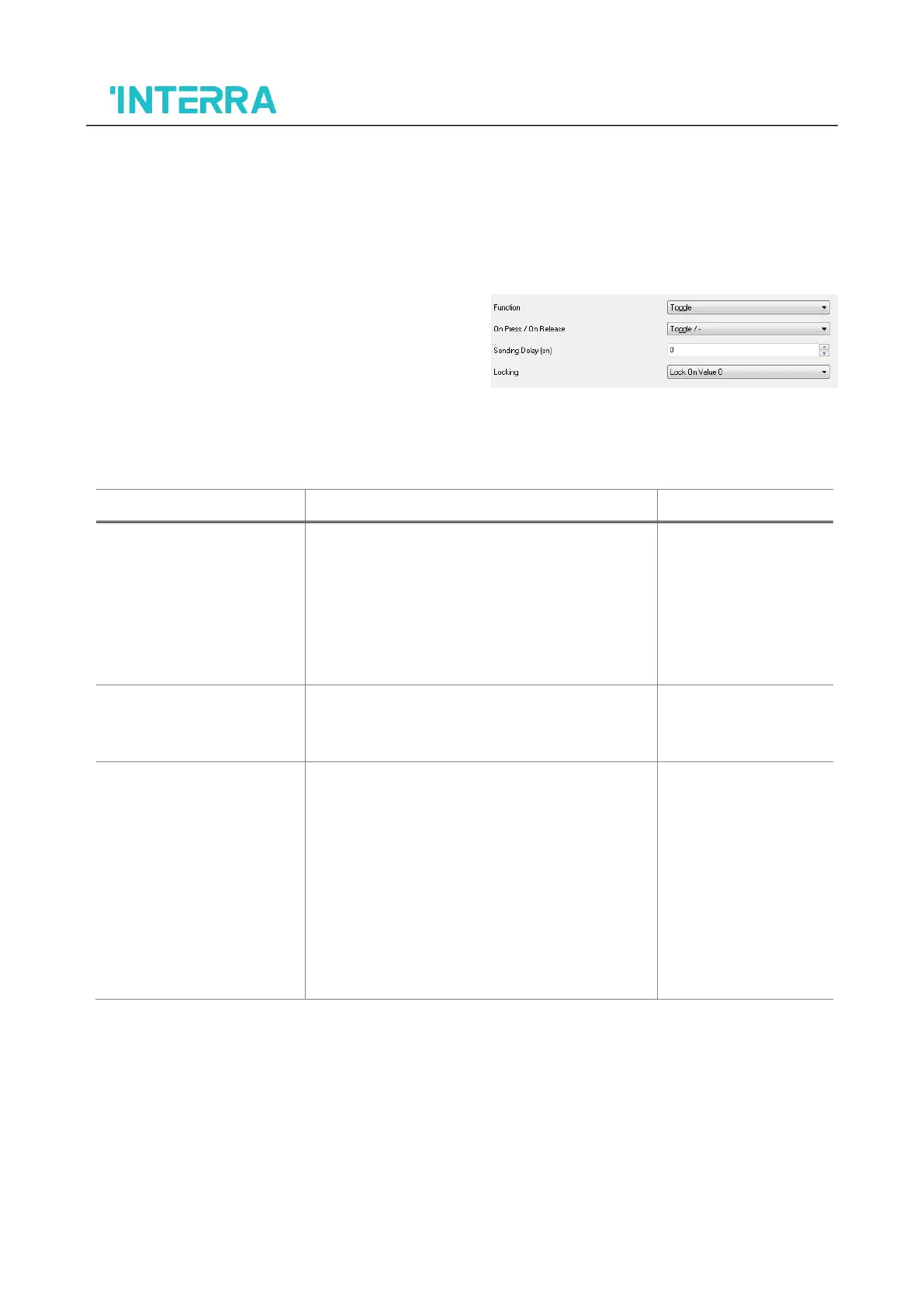

3.2. TOGGLE
3.2.1. Description
Each press of the button sends to the bus 1-bit
object with the value “0” or “1”. If “0” is transmited
through the first press, the next value will be “1” and
viceversa. The device is switched on and off
alternately in every press.
The object value can be update via the bus from
others devices thus there is an status object which
prevent any incorrect behaviour. This object must
be connected with the state of the actuator via a
group address.
3.2.2. Parameters
This parameter determines the behaviour of the
toggle button.
Toggle / - : when the contact is closed the inverted
value of the status is sent.
- / Toggle: when the contact is opened the
inverted value of the status is sent.
This parameter set a delay between the action
and the sending of the telegram to the bus. Value
0 means the immediate emission of the telegram.
This parameter determines if the input can be
locked via an additional locking object or not.
Disabled: This option is disabled.
Lock On Value 0: When the locking
communication object takes the value 0, status
changes at the input are not transmitted.
Lock On Value 1: When the locking
communication object takes the value 1, status
changes at the input are not transmitted.
Disabled
Lock On Value 0
Lock On Value 1
