3.6. 2-CHANNEL MODE
3.6.1. Description
The 2-channel mode is used to perform two
different functions using the same pushbutton.
Every possible function has been already defined
above. First function is recalling by short button
press and second one by longer press.

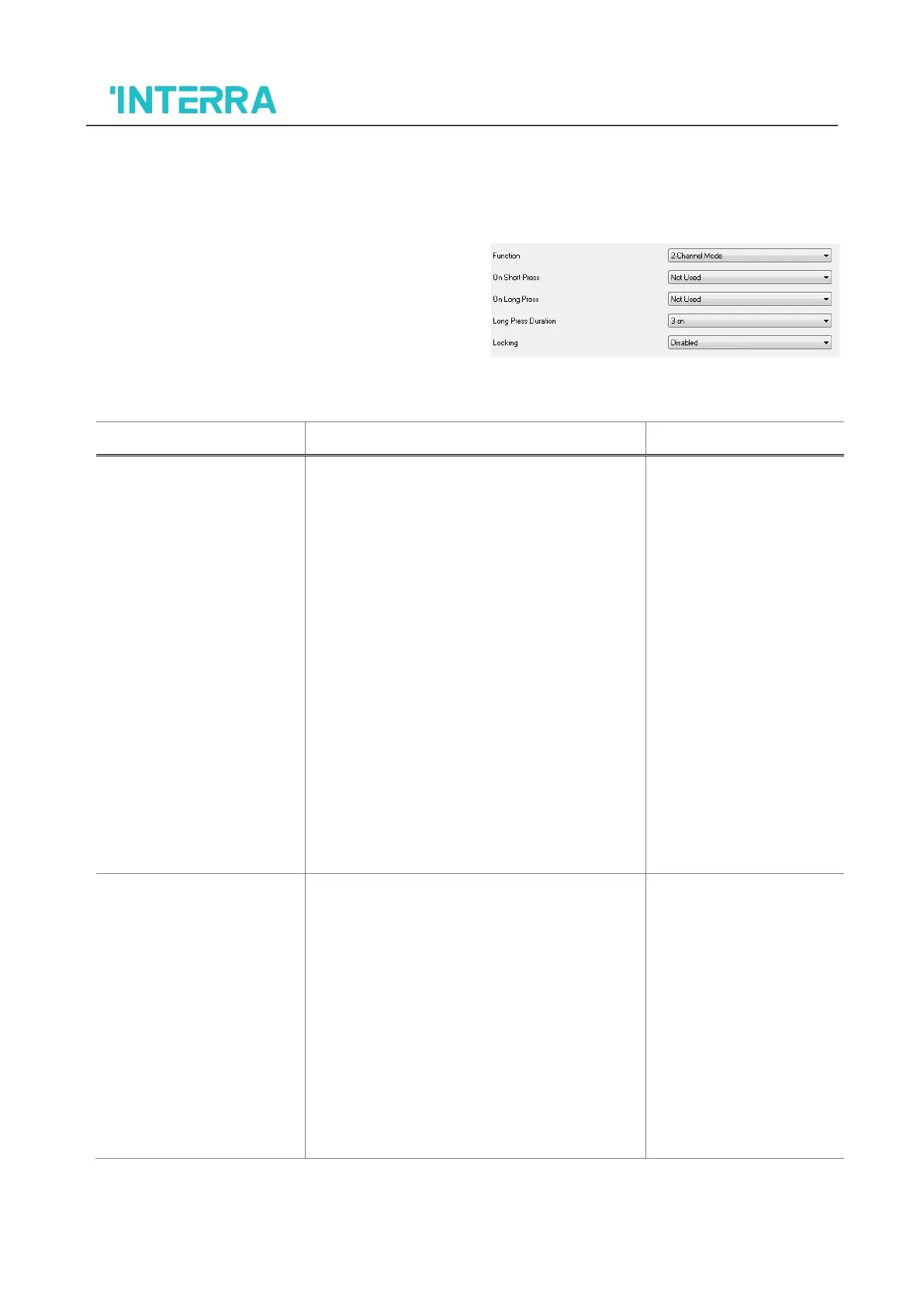

3.6.2. Parameters
PARAMETER
DESCRIPTION
VALUES
On Short Press
This parameter determines the behaviour of the
button with short press action.
ON: when the contact is closed the value “on“ is
sent.
OFF: when the contact is closed the value “off“
is sent.
Toggle: when the contact is closed the inverted
value of the last sending is sent.
1-Byte Value: Takes integer values from 0 to
255.
2-Byte Value: Takes integer values from 0 to
65535.
Percentage: 1 byte in steps of 1.
Temperature: 2 byte in steps of 0.5.
Luminosity: 2 byte in steps of 50.0
Not Used
ON
OFF
Toggle
0…255
0…65535
0…13…100%
0…20.0…50.0°C
0…300…1000 lux
On Long Press
This parameter determines the behaviour of the
button with long press action.
ON: when the contact is closed the value “on“ is
sent.
OFF: when the contact is closed the value “off“
is sent.
Toggle: when the contact is closed the inverted
value of the last sending is sent.
1-Byte Value: Takes integer values from 0 to
255.
Not Used
ON
OFF
Toggle
0…255
0…65535
0…13…100%
0…20.0…50.0°C
0…300…1000 lux
