KNX Universal Interface
Product Manual
©2019 INTERRA 13 PM190207005BEN
3.2.3. Objects
The following objects can be used through the toggle function:
OBJ NAME
FUNCTION
TYPE
FLAG
InputX
ON / OFF
1 bit
CRT
Toggle telegrams are sent via the group address linked with this object.
InputX
Status
1 bit
CRWU
This object is only visible with Toggle function. Via the group address linked, it indicates the current status of
a related output.
InputX
Locking
1 bit
CRWU
This object is only visible when the locking function is enabled. Via the group address linked, it is possible to
lock the current input through the value configured previously.

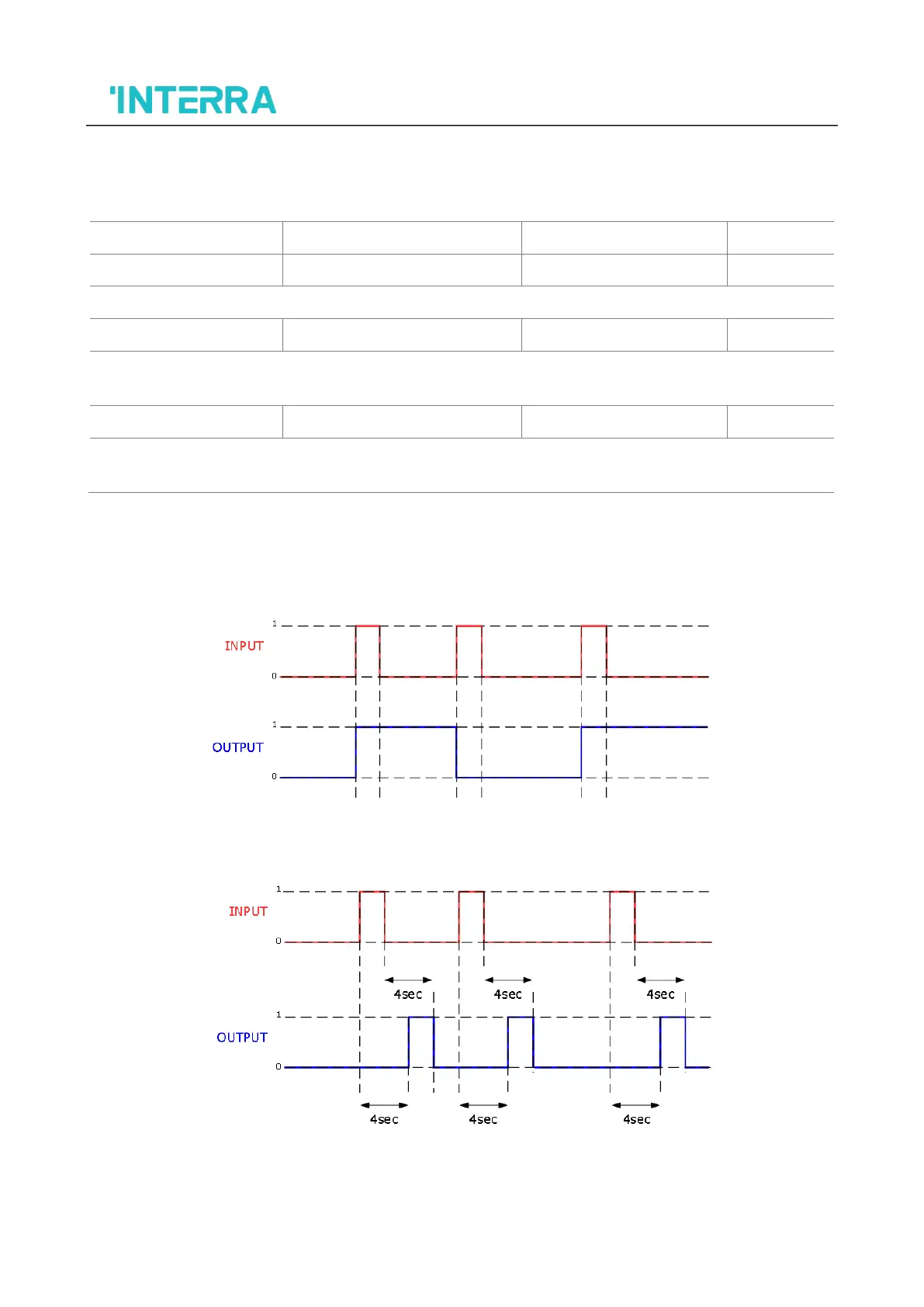

3.2.4. Logic
Fig 3. Toggle Logic without delay
Fig 4. Toggle Logic 4 seconds delay
