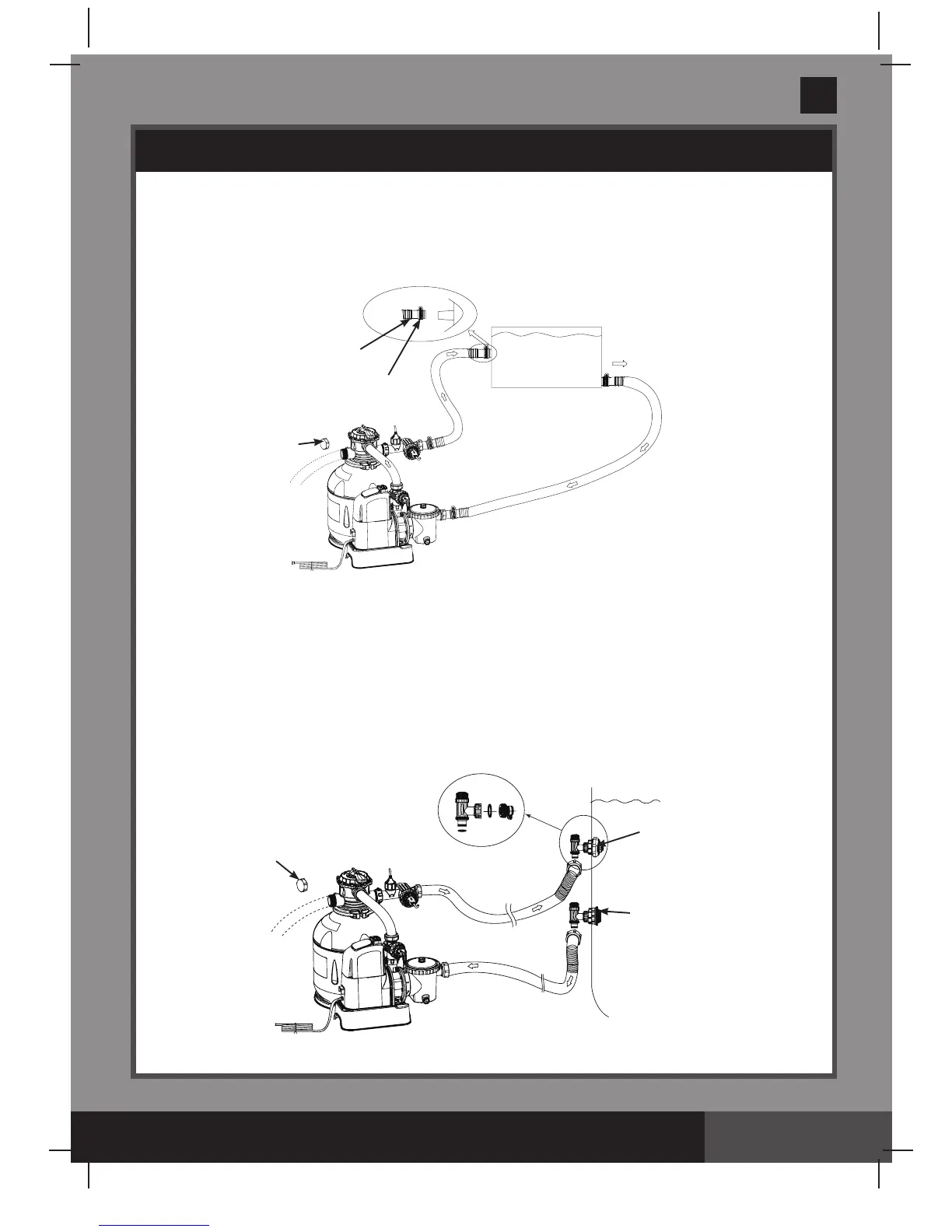

SAND FILTER PUMP HOSE CONNECTION SETUP (continued)
For INTEX pool size 16' and below:
1. In a counter-clockwise motion unscrew plunger valve union from the threaded strainer
connector
(33)
.Becarefulnottolosethesteprubberwasher
(30)
.
2. Grasptheplungervalveassembly.Makesurethestepwasher
(30)
is in place. Connect
 adaptorB
(35)
to plunger valve union.
3. Remove wall plug and then insert the strainer
(36 & 38)
into the lower position of protruding
hose connection, and the nozzle
(36 & 37)
into the upper position of protruding hose
 connection.AdaptorB
(35)
fits over the strainer connection
(36)
inserted into the connection.
Tighten securely.
4. Remove the drain valve
(3)
from the 6-way valve outlet and connect the hose to the outlet.
For NON-INTEX pool:
1.
Connect the hose
(12)
to the pool inlet/outlet connection with a large hose clamp. Tighten
securely. Remove the drain valve
(3)
from the 6-way valve outlet and connect the hose to
the outlet.
POOL
LARGE HOSE
CLAMP
12
3
POOL
36 & 37
3
36 & 38
