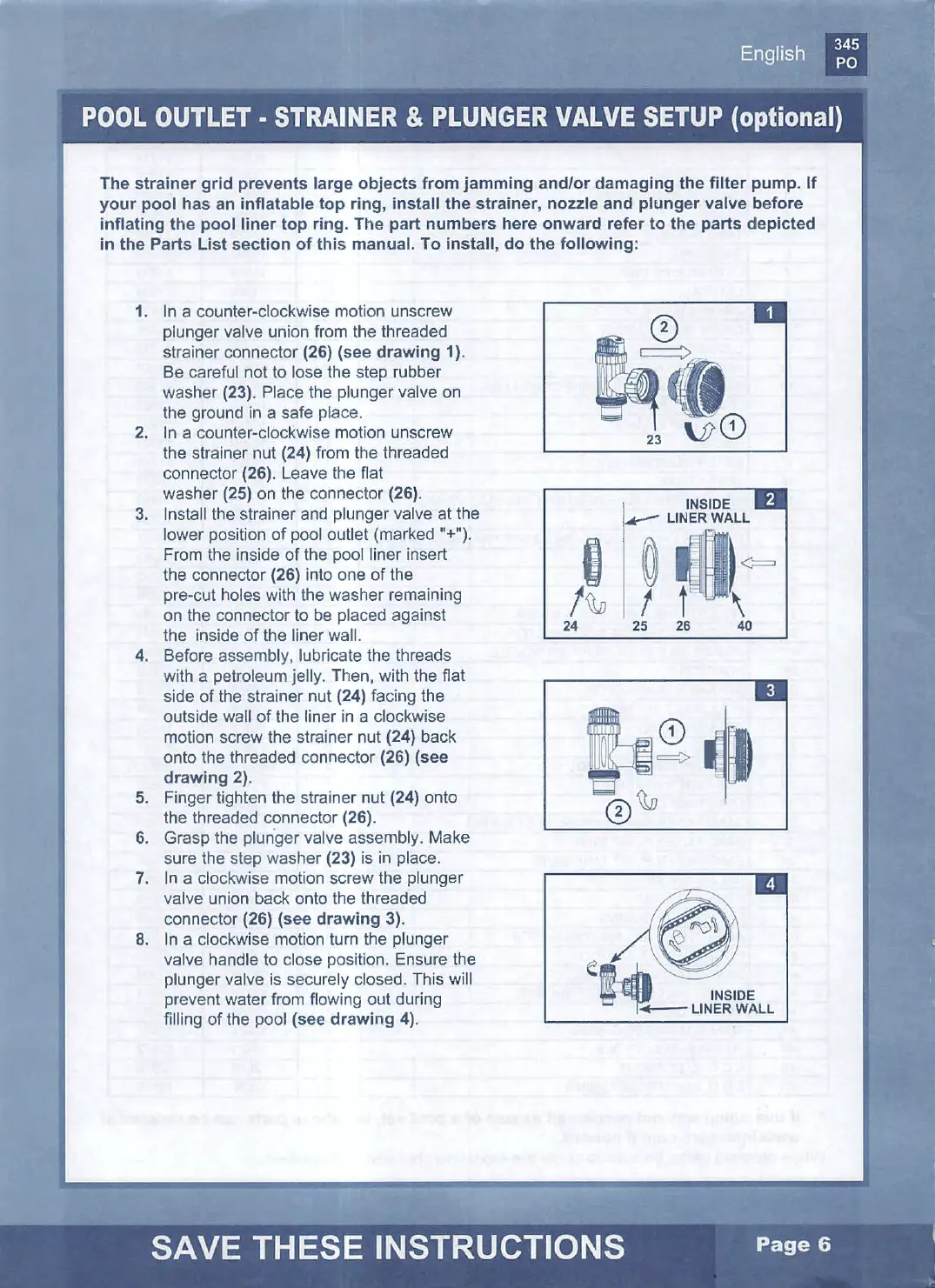

The
strainer grid prevents
large
objects
from
jamming
and/or
damaging
the filter
pump
.
If
your
pool has
an
inflatable
top
ring, install
the
strainer, nozzle
and
pl
unger
valve
before
inflating the pool liner
top
ring.
The
part
numbers
here onward
refer
to
the
parts depicted
in the Parts
List
section
of
this manual.
To
install,
do
the
following:
1.
In
a counter-clockwise motion unscrew
plunger valve union from the threaded
strainer connector
(26) (see drawing 1 ).
Be careful not to lose the step rubber
washer (23). Place the plunger valve on
the ground in a safe place.
2.
In
a counter-clockwise motion unscrew
the strainer nut
(24) from the threaded
connector
(26). Leave the flat
washer
(25) on the connector (26).
3.
Install the strainer and plunger valve at the
lower position
of
pool outlet (marked "+").
From the inside
of
the pool liner insert
the connector (26) into one
of
the
pre-cut holes with the washer remaining
on the connector to be placed against
the inside
of
the liner wall.
4. Before assembly, lubricate the threads
with a petroleum jelly. Then, with the flat
side
of
the strainer nut (24) facing the
outside wall
of
the liner
in
a clockwise
motion screw the strainer nut
(24) back
onto the threaded connector (26)
(see
drawing
2).
5.
Finger tighten the strainer nut (24) onto
the threaded connector
(26).
6.
Grasp the plunger valve assembly. Make
sure the step washer
(23) is in place.
7.
In
a clockwise motion screw the plunger
valve union back onto the threaded
connector
(26) (see drawing 3).
8.
In a clockwise motion turn the plunger
valve handle
to
close position. Ensure the
plunger valve is securely closed. This will
prevent water from flowing out during
filling
of
the pool (see drawing 4).
INSIDE
~
LINER WALL
I O
~rt
=
!~ t t II~
24
~
25
26
40
INSIDE
-+--
LINER WALL
