Connecting the system to other types of pump (with different type of thread or no
thread):
The Ozone & Saltwater System can also be adapted to other filter pumps with different thread or
those without a thread on the connection.
Connection to 1-1/2” (38mm) hose with clamp:
1.
Connect the connector hose
(8)
to the filter pump outlet connection with a large hose clamp.
Tighten securely.
Connecting the system to other types of pool
After you have connected the Ozone & Saltwater System to the pump, connect it to the pool.

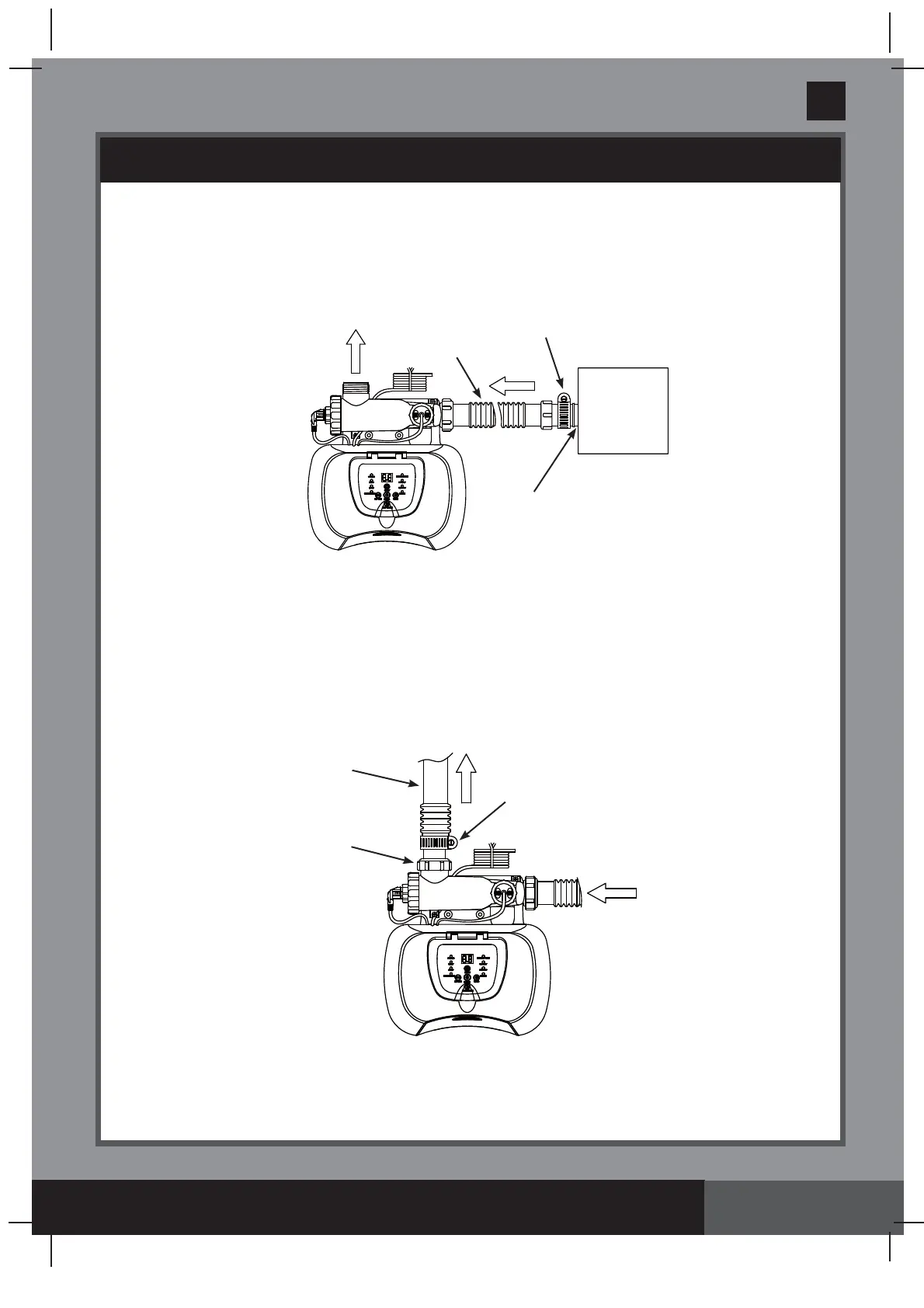

This is depicted in Drawings #1.
Following are the common connection types:
Connection to 1-1/2” (38mm) connectors without thread:
1.
Connect the adaptor A
(1)
to the Ozone & Saltwater System outlet. Tighten securely.
2.
With the adaptor A
(1)
fixed to the Ozone & Saltwater System outlet, connect the water
return hose to the adaptor, using a large hose clamp.
