SETUP INSTRUCTIONS
1.
Assemble the above-ground-pool (AGP) and its filter pump according to their installation
instructions.
2.
Take the Ozone & Saltwater System and its accessories out of the packaging.
3.
Place the Ozone & Saltwater System in line after the filter pump.
4.
Connect the connector hose
(8)
to the Ozone & Saltwater System inlet.
Connecting the system to pump and pool with 1-1/2” (38mm) connections/hoses,
install as follows:

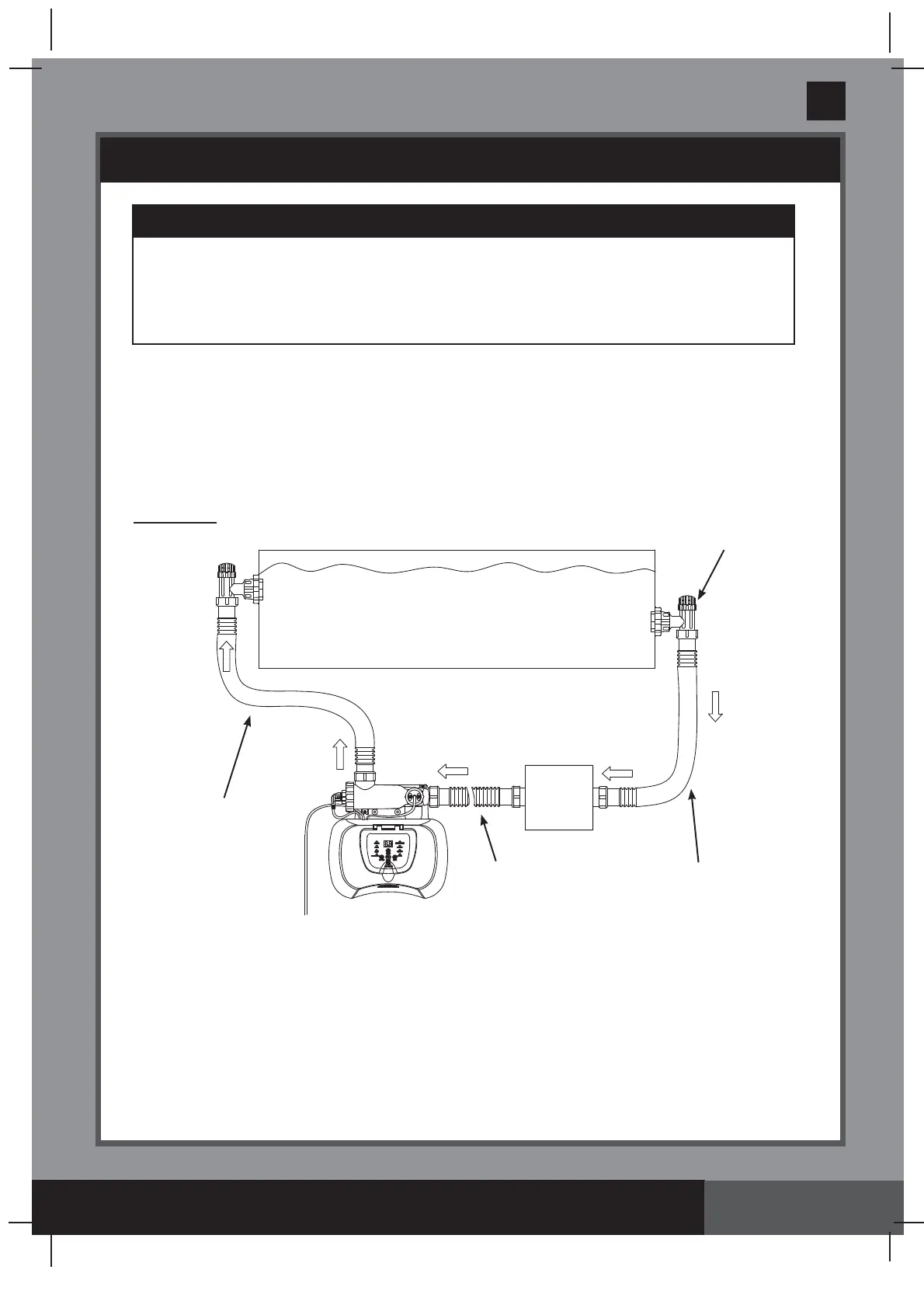

Drawing #1
IMPORTANT
• The Ozone & Saltwater System requires a separate filter pump [1600~4000 gph
(6056~15140 lph)] to drive the water and function properly.
• The Ozone & Saltwater System must be installed as the last piece of pool equipment
in the water return line to the pool as displayed in Drawing #1. This location extends
the life of the titanium plates.
1.
Go directly to step 2 if your pool is empty. If your above-ground-pool is filled with water, close
the plunger valves before installing the Ozone & Saltwater System.
2.
Disconnect the water return hose from the filter pump connection and connect it to the Ozone
& Saltwater System outlet.
3.
Connect the connector hose
(8)
to the filter pump outlet connection.
4.
Open the plunger valves to allow the water to flow.
FILTER
PUMP
ID 1-1/2” (38mm)
HOSE
ID 1-1/2” (38mm)
HOSE
OZONE &
SALTWATER
SYSTEM
SWIMMING POOL
WATER TO
POOL
PLUNGER
VALVE
WATER
FROM POOL
8
