(187IO) MODEL ZS8220 & ZS8230 OZONE & SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 08/01/2012
187A
SAVE THESE INSTRUCTIONS
Page 9
English
SETUP INSTRUCTIONS
SETUP INSTRUCTIONS (continued)
Connecting the system to other types of pump (with different type of
thread or no thread):
The Ozone & Saltwater System can also be adapted to other filter pumps with
different thread or those without a thread on the connection.
Connection to 1-1/2” (38mm) hose with clamp:
1. Connect the connector hose (8) to the filter pump outlet connection with a large
hose clamp. Tighten securely.
Connecting the system to other types of pool
After you have connected the Ozone & Saltwater System to the pump, connect it to
the pool. This is depicted in Drawings #1.
Following are the common connection types:
Connection to 1-1/2” (38mm) connectors without thread:
1. Connect the adaptor A (1) to the Ozone & Saltwater System outlet. Tighten
securely.
2. With the adaptor A (1) fixed to the Ozone & Saltwater System outlet, connect
the water return hose to the adaptor, using a large hose clamp.

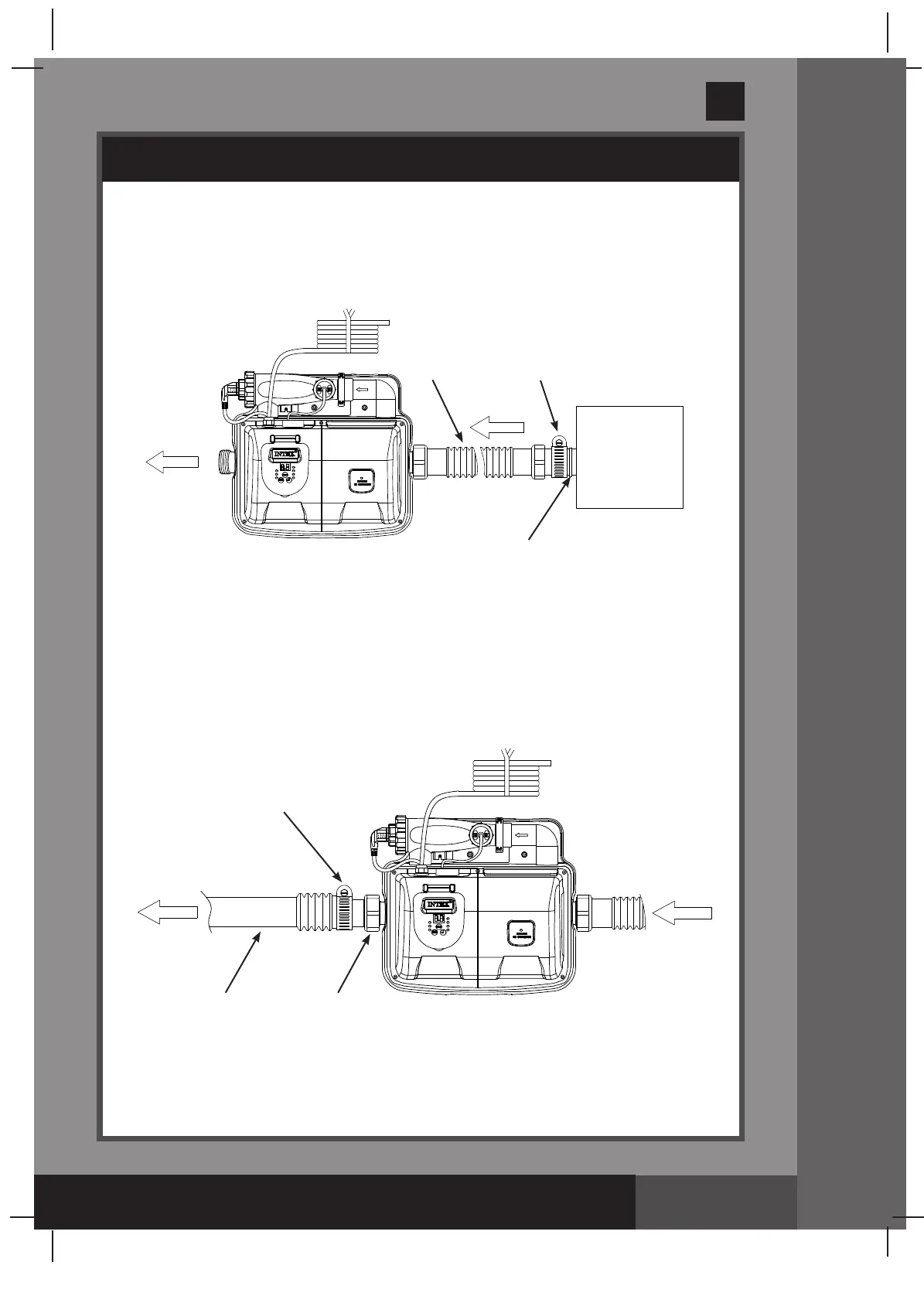

8
LARGE HOSE
CLAMP
FILTER PUMP
ID 1-1/2” (38mm)
CONNECTION
OZONE & SALTWATER
SYSTEM
1
ID 1-1/2” (38mm)
HOSE
OZONE & SALTWATER
SYSTEM
LARGE HOSE CLAMP
