Invacare Action 3 - 2.1.5 Armrests (continued)

22
23
- Swing-away and removable
This range of armrests can be swung away to facilitate
transfers and disassembling during transport.

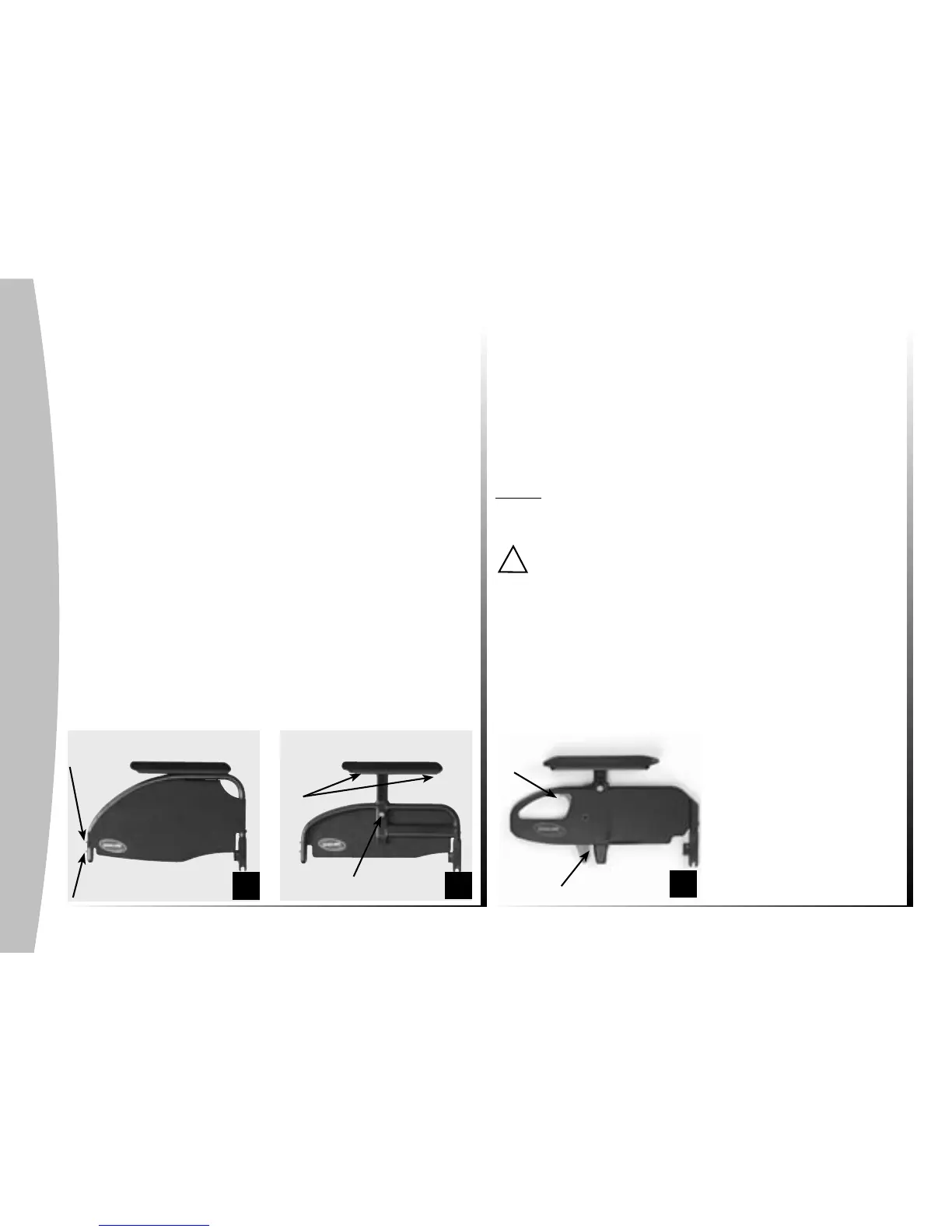

• Simple [2] (photo 15) to swing the armrest away, push down
the dog point (A), reverse the procedure to reinsert making
sure that the dog point (B) is properly engaged in its housing.
To remove the armrest, swing it back completely and pull it
up. Reverse the procedure to reinstall.
- Ajustable tubular [3] (photo 16) :
• Adjustable
Identical to the previous procedure including armrest height
and depth adjustment ; slightly loosen the ball screw (B), adjust
for the desired height based upon the preset holes and rmly
tighten the screw ; slightly loosen the two screws (C) and
slide the armrest down for the desired depth, rmly tighten
the two screws (C).
- Adjustable monobloc [5] (photo 17) :
To swing the armrest away, activate the grey trigger (A). To
automatically reinsert it swing it down and make sure that the
guide (B) is properly engaged in its housing.
To adjust the armpad in height and depth, proceed as the
adjustable tubular armrest procedure.
Note : the armrests are mounted in pairs on the wheelchair ;
whenever you remove them, remember that you have a right
and a left side !
!
Never lift the wheelchair by the armrests !
Keep your ngers away from movable parts during folding,
disassembling or adjustment to prevent injuries !
16
B
C
15
A
B
17
A
B
