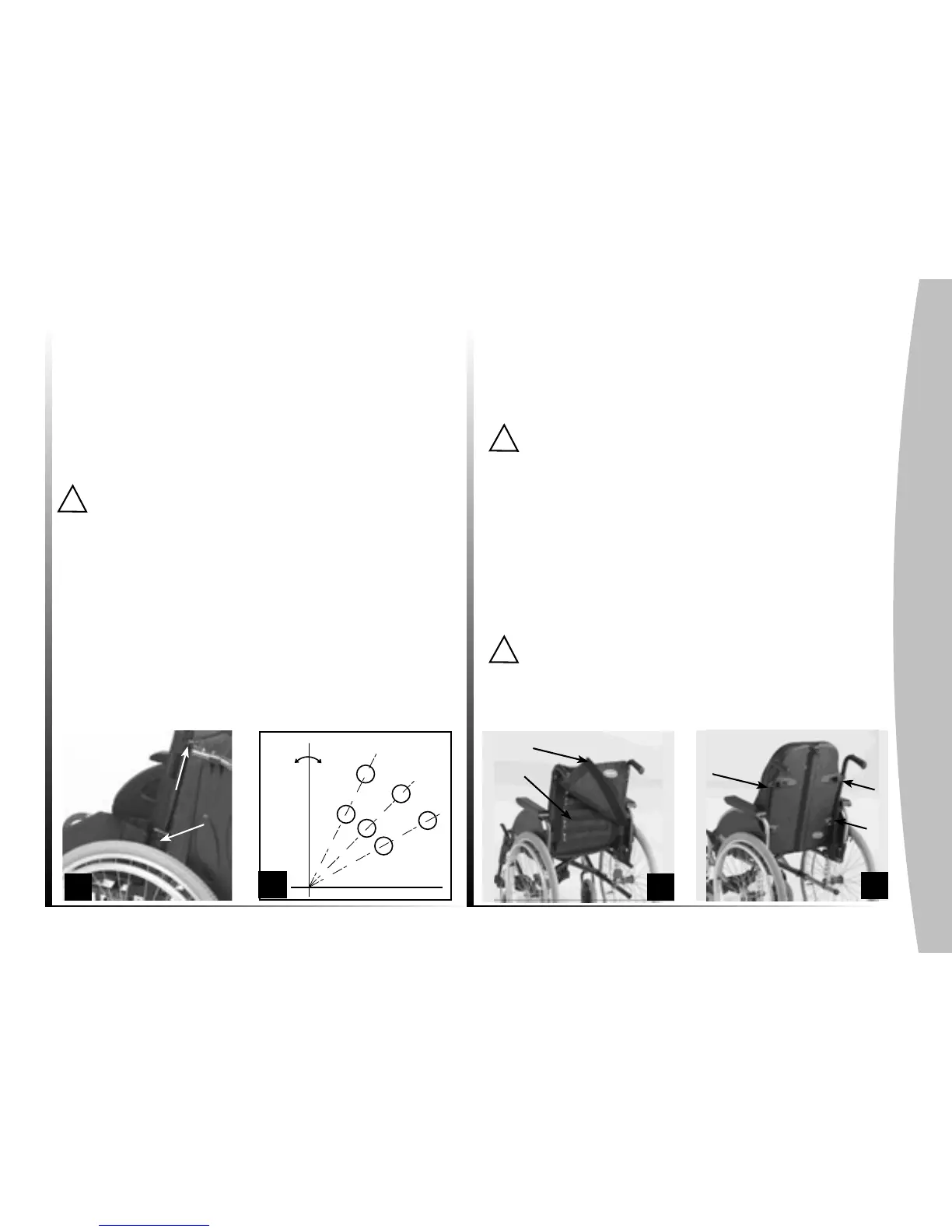

• Fixed backrest with mid-height angle adjustment (photo 6B);
the angle can be adjusted using the different holes on the
backrest support (shema 6C), remove screw (A) and nut (4
mm Allen key and 10 mm spanner), select the desired angle
(from -6° to + 24°, every 6°), repositioning the screw (A) and
rmly re-tighten. The push handles are height adjustable, sli-
ghtly loosen the knob (B), adjust to the desired height, rmly
re-tighten.
Always make these adjustments before the user
settles down in the wheelchair to prevent injuries !
2.1.3 Backrest upholstery
- Standard upholstery backrests
• Padded backrest it provides excellent daily comfort for the
user who does not need specic support for the upper body.
In the event that the upholstered backrest slackens, ask for
a replacement from your Dealer.
• Tension adjustable backrest (photo 7) it allows adjustment
of the backrest curvature based upon user’s body posture.
Lift the ap (A) and pull the straps (B) in order to stretch or
slacken them. Each strap can be adjusted separately.
Reposition the ap (A).
Check the quality and positioning of the Velcro faste-
ners. Always make this adjustment before the user settles
down in the wheelchair to prevent injuries !
- Rigid backrest (photo 8) the rigid canopy and preformed
foam cushion provide optimal comfort. The backrest is
removable allowing the wheelchair to fold loosen the two
buttons (A), slide the levers (B) to the inside and disengage
the hooks (C) from their supports. Reverse the procedure
to reassemble the backrest.
It is recommended that this operation be performed
only by the attendant. Always make sure that the backrest is
locked in place for optimal safety of the user.
Keep ngers away from movable parts to prevent injuries !
