Invacare Carroll CS7 - Foot Pad Lock Mechanism; Bed Steer Mechanism

Invacare®CarrollCSSeries™

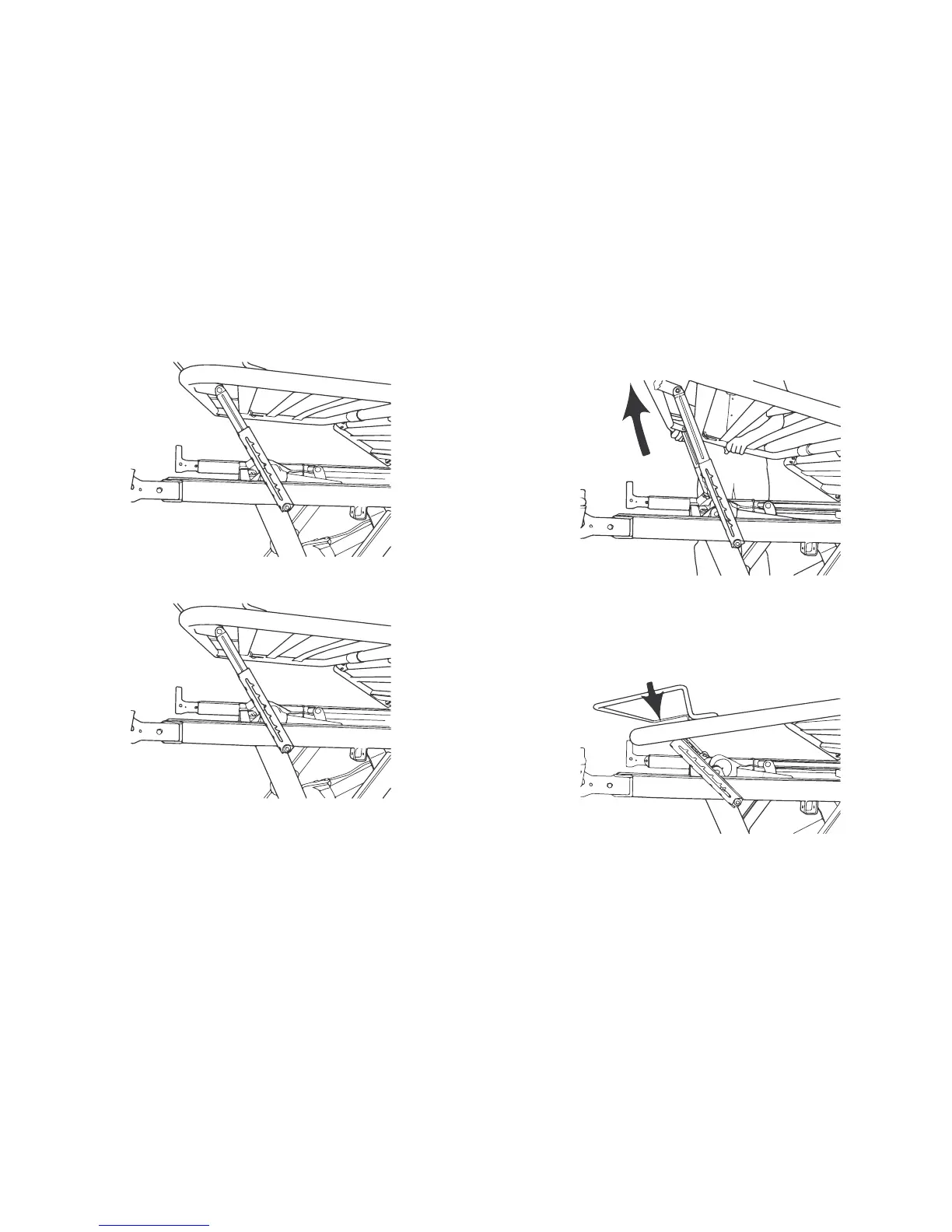

2.Thefootsectioncanrestatanyofthesixpre-setstops.
3.Slowlylowertheplatformtoengagetheneareststop.
4.Theplatformcannotlowerpasttheneareststopwhilebeing
adjusted.
5.Toresettheratchetmechanism,raisetheplatformtothehighest
levelthenlowertheplatforminonemotion.
6.Atthelowestpositionthedeckcanonceagainberaisedtothe
desiredstop.
42
1153410-N~00
