6.Adjusttheheadboardwidth.Referto6.10.2AdjustingtheHead
BoardWidthforCS9FX600,page57
.
7.Repeatsteps1to6foreachsectionuntiltheyarealladjusted
tothesamewidth.
6.10.2AdjustingtheHeadBoardWidthfor
CS9FX600
BedendmodelIHBEADJisintendedforuseonbedmodel
CS9FX600.Theheadboardisadjustableandshipsintheposition
fora36inwidebed.

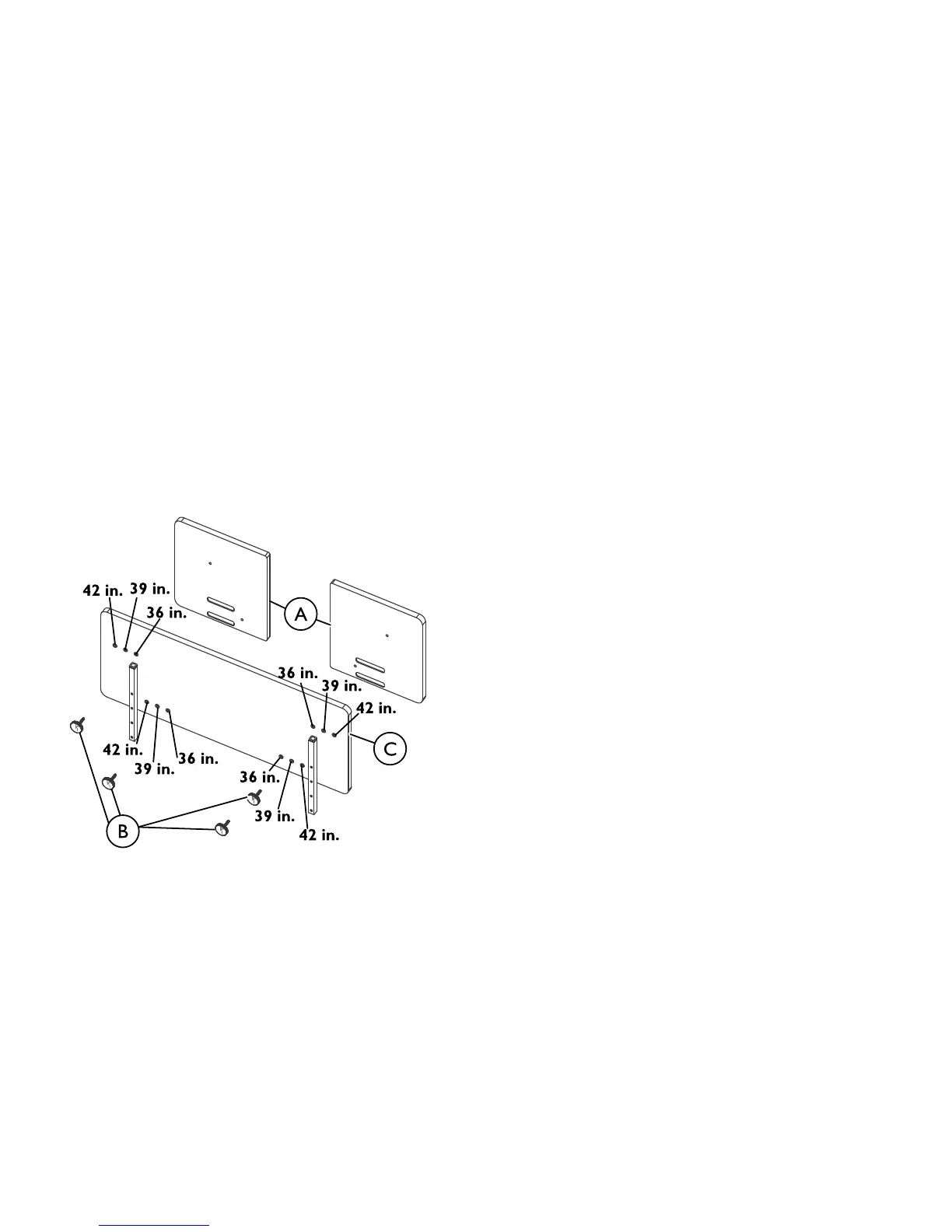

1.FirmlygrasponeoftheboardwingsA.
2.Whileholdingtheboardwing,removetheknobsBsecuring
thatwingstothecentersectionC.
3.Movetheboardwinguntilthemountingholeslineupwiththe
desiredadjustmentholesinthecentersection.
4.Installtheknobstosecuretheboardwinginthedesired
position.Tightensecurely
5.Repeatsteps1-4fortheremainingboardwing.
