Invacare®CarrollCSSeries™

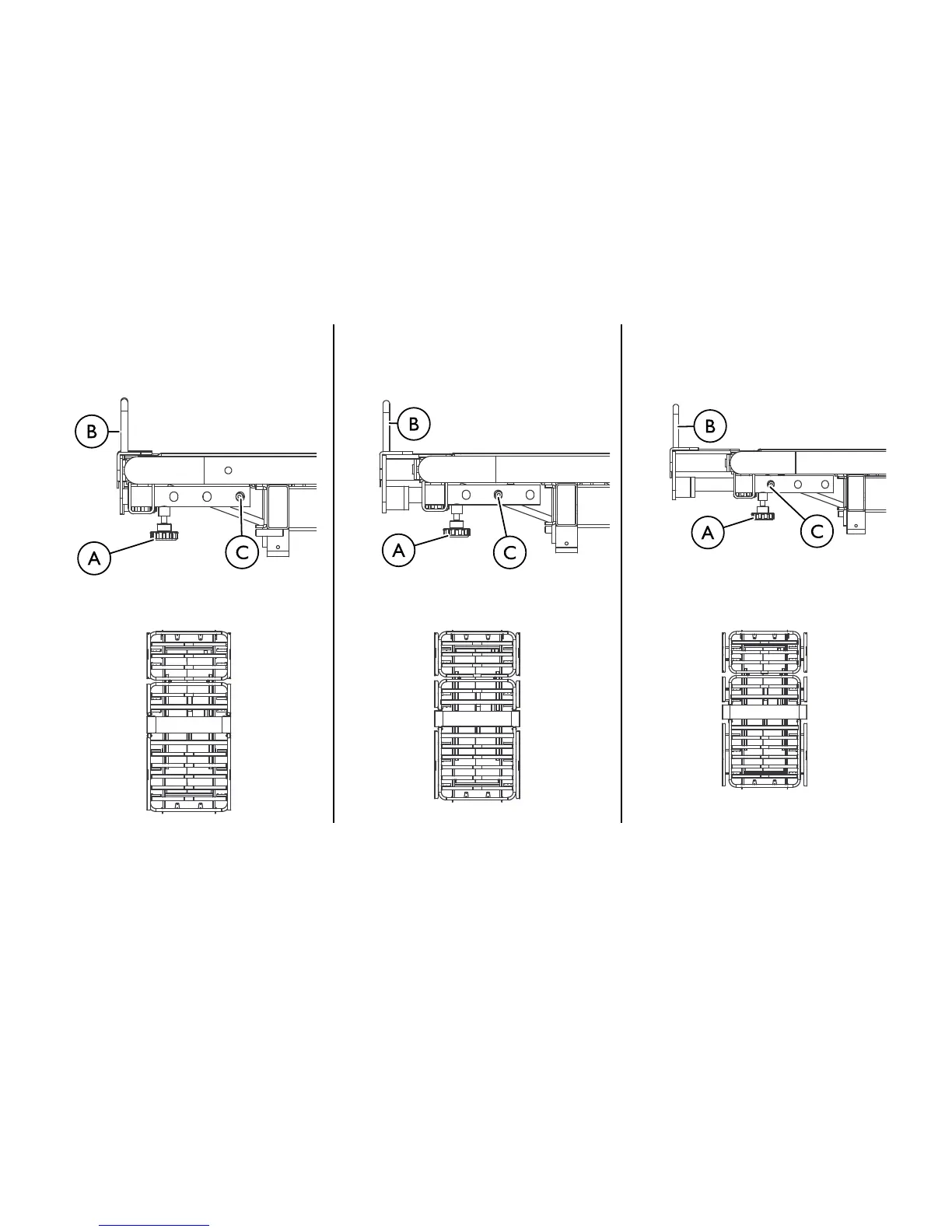

36inchWidth39inchWidth42inchWidth
SideViewSideViewSideView
TopBedDeckViewTopBedDeckViewTopBedDeckView
1.LoosentheknobAsecuringtheadjustabledeckwingB.
2.DepressthesnapbuttonC.
3.Slidetheadjustabledeckwinginorouttothedesiredposition.
4.Ensurethesnapbuttonsnapsintotheappropriateadjustment
hole.
5.Tightentheknobtosecuretheadjustabledeckwing.
561153410-N~00
