Invacare®Colibri

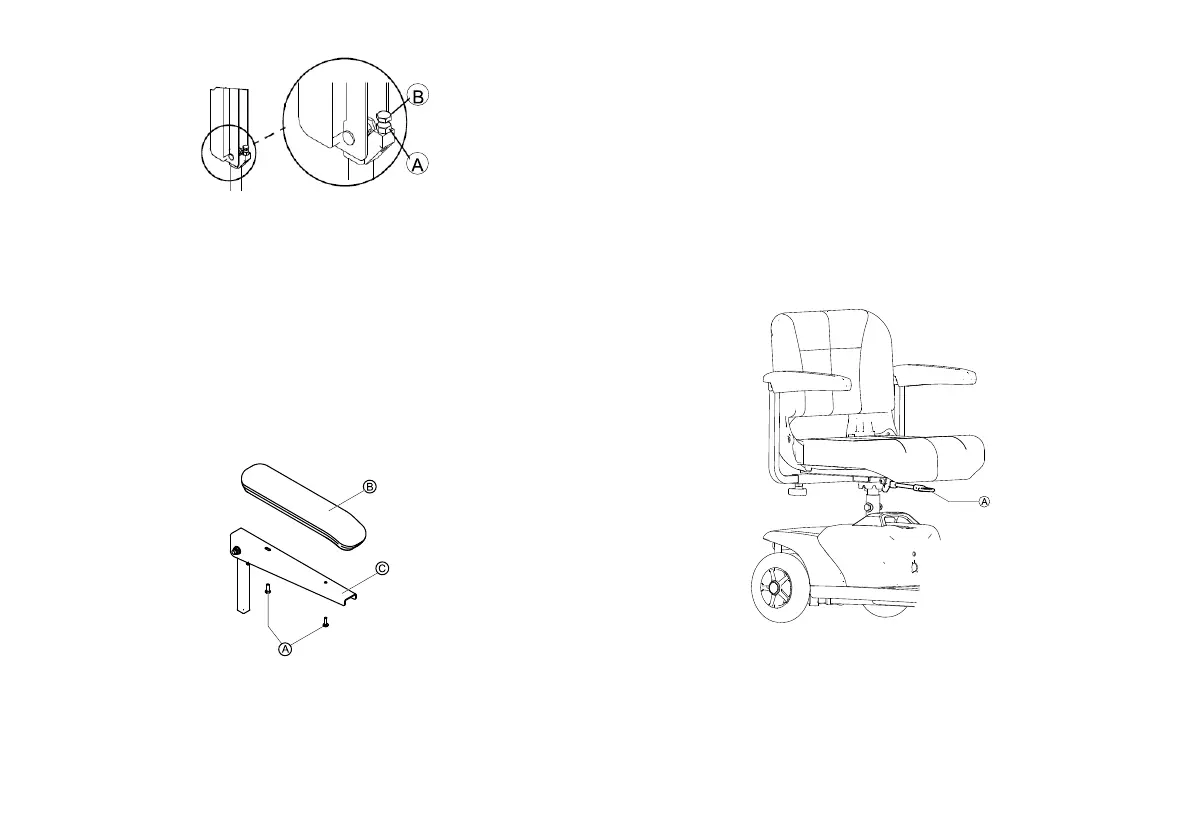

1.Liftupthearmrest.
2.LoosenthejamnutA.
3.AdjustthesocketscrewBupordowntothedesired
armangleposition.
4.Tightenthejamnut.
5.Todeterminethesameanglefortheoppositearmrest,
counttheexposedthreadsafterthejamnuthasbeen
tightened.
6.RepeatSTEPS1-4foroppositearmrest,ifnecessary.
4.4Replacingarmrestpads
1.RemovethetwomountingscrewsAthatsecurethe
armrestpadBtothearmC.
2.Removetheoldarmrestpad.
3.Installthenewarmrestpadandsecurelytightenwith
theexistingmountingscrews.
4.Ifnecessary,repeatSTEPS1-3toreplacetheother
armrestpad.
4.5Disengagingtheseattorotateitorremove
it
Theseatcanbeturnedtoonesidetomakegettinginand
outofthescootereasier.Theseatisalsoeasiertoremove
fromthisposition.
TheseatleverAislocatedundertheseatinthefront.
Rotatingtheseat
1.Pulltheleverupwardstodisengagetheseat.
2.Turntheseattotheside.
Removingtheseat
22
1576371-C
