Invacare®Colibri

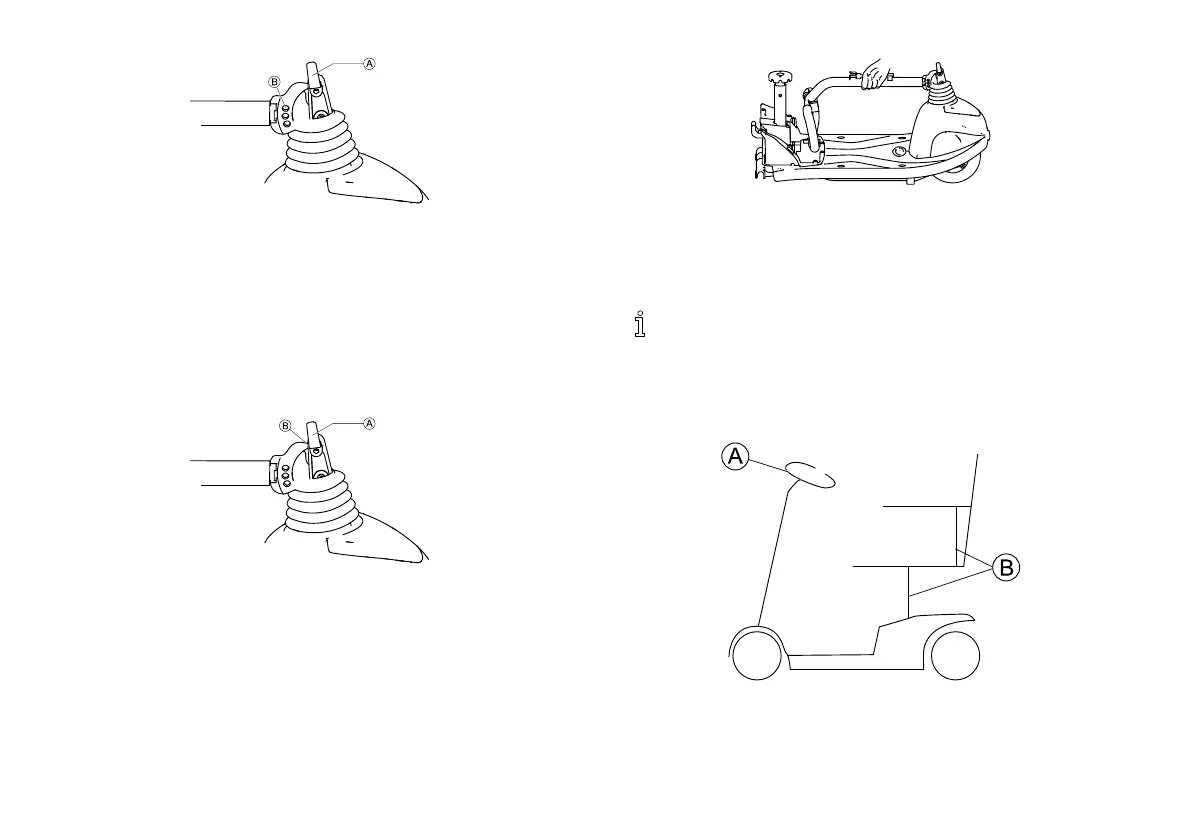

1.RotateorpulloutthetilleradjustmentleverAuntilthe
pindisengagesfromthemountinghole.
2.Movethetillertothedesiredposition.
3.Releaseorrotatethetilleradjustmentlevertolockthe
pinintothedesiredmountingholeB.
4.Gentlypush/pullagainsttillertoensurethatthetilleris
securelylocked.
Foldingdownthetiller
1.RotateorpulloutthetilleradjustmentleverAuntilthe
pindisengagesfromthemountinghole.
2.Folddownthetiller.
3.Releaseorrotatethetilleradjustmentlevertolockthe
pinabovethetillerbaseB.
4.Gentlypush/pullagainsttillertoensurethatthetilleris
securelylocked.
Youcannowusethetillerasahandletotransportthefront
frameassembly:
4.8AdjustingLight
Ifyourmobilitydeviceisttedwithoptionallight,referto
theusermanualofthelightsforinformationaboutusage.
Thelightmustbeusedinbadvisibilityconditions
likedarknessorfog.
MountingPositions
Fig.4-1Mountingpositions
A
Headlight
B
RearLight
24
1576371-C
