7.7 Armrest Adjustment
CAUTION:
Ensure the controller power is switched off before making armrest adjustments.
The armrests are not intended for lifting/carrying the wheelchair.
ARMREST HEIGHT ADJUSTMENT:

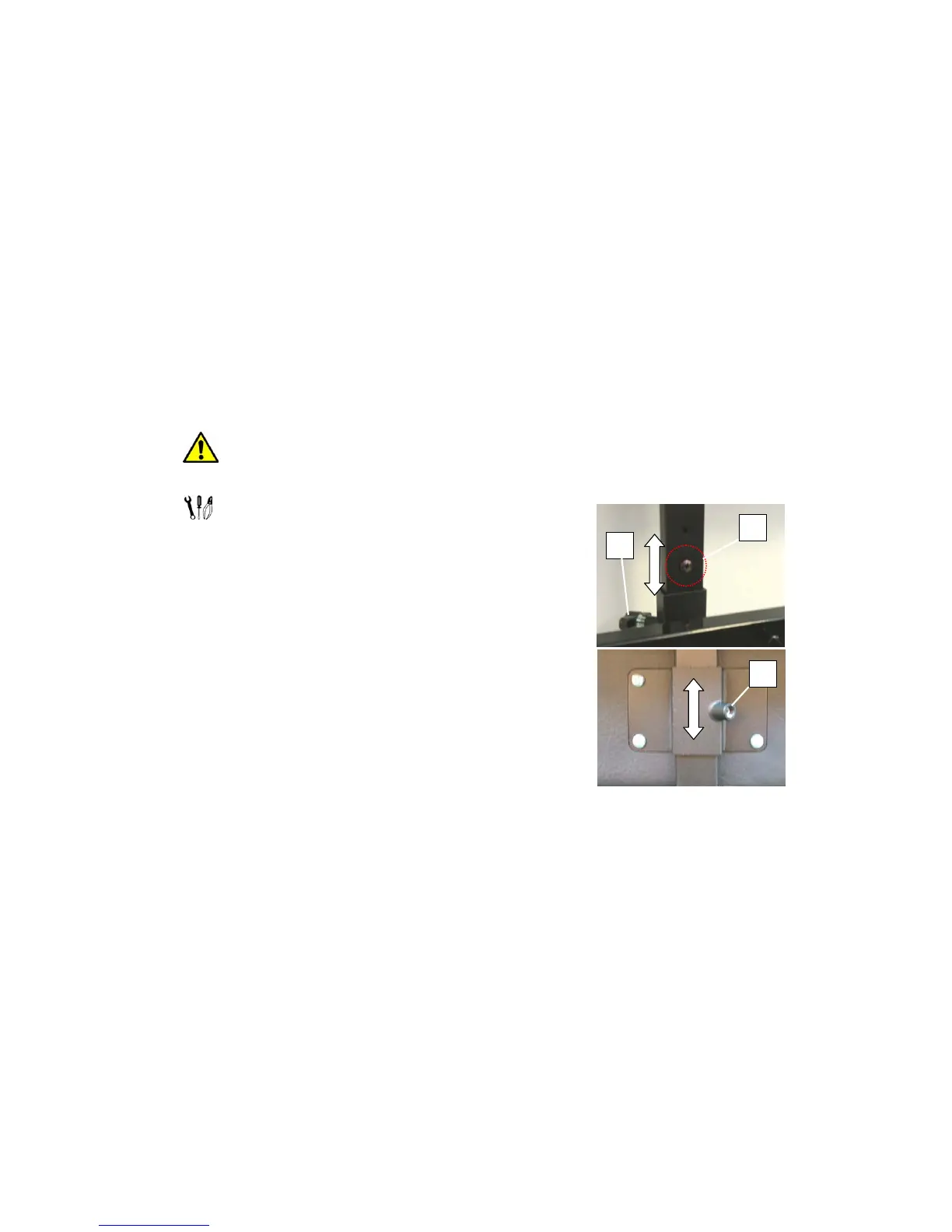

1. Pre set the height of the armrest assembly by positioning
the self tapping screw (B) in one of the holes in the
armrest tube.
2. To adjust the height of each armrest, release the locking
handwheel (A) which clamps the arm tube, while holding
on to the armrest.
3. Move the armrest to the desired height and re-tighten the
locking handwheel (A).
4. To set the side panel to the desired height, loosen the
grub screw (C) located in the fixing bracket; re-tighten
when in the correct position.
