SECTION 8—FRONT CASTERS
Insignia
™
34 Part No. 1163197
6. Testwheelchairformaneuverability.
7. Readjustlocknutsifnecessary,andrepeatSTEPS5‐6untilcorrect.
8. Snapdustcoveroverthelocknutandstem(Detail“C”).

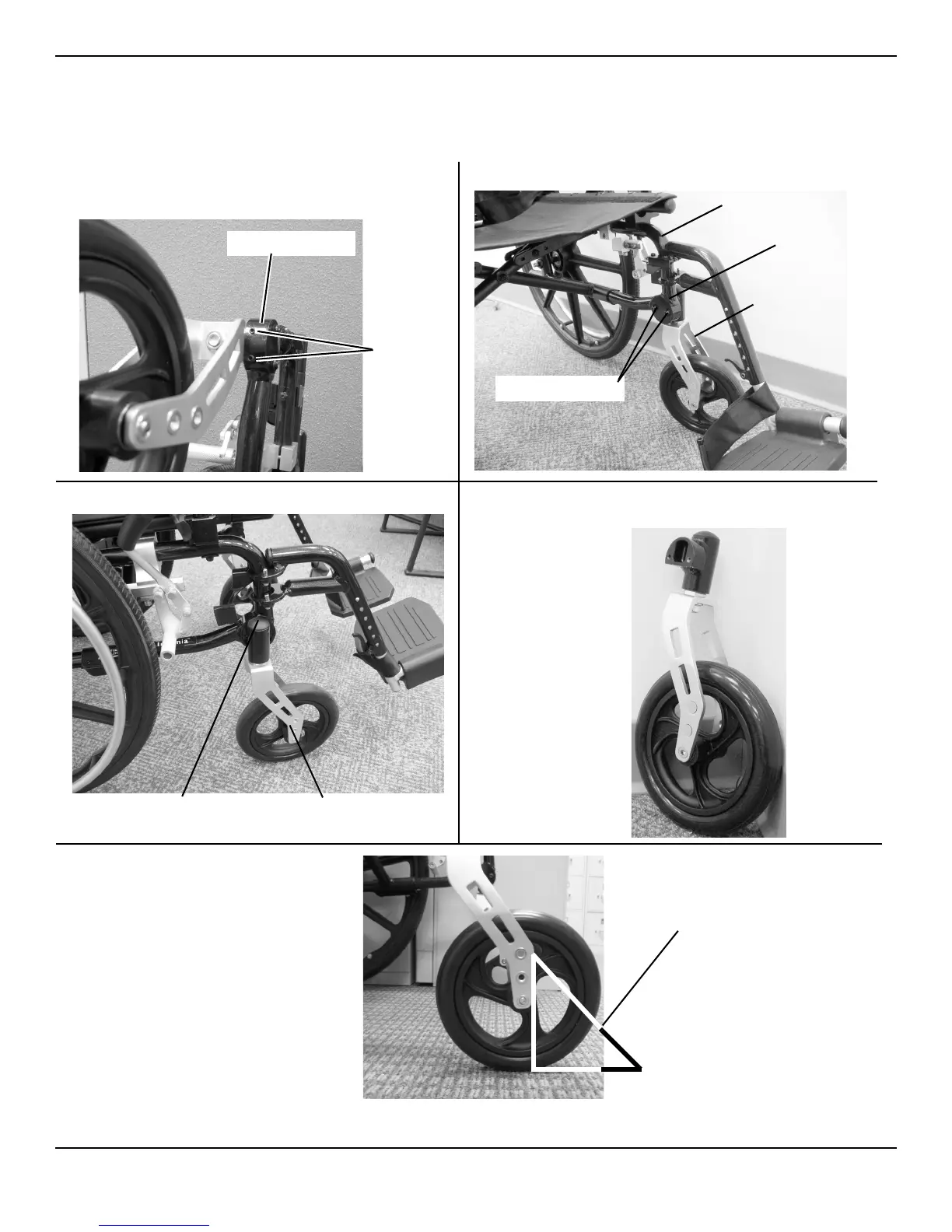

FIGURE 8.2 Removing/Installing the Caster/Fork/Headtube Assembly
Dust Cover
DETAIL “B”
DETAIL “C”
Round
Receptacle
Wheelchair Frame
Caster/Fork/Headtube
Assembly
(See Detail “C”)
Caster/Fork/Headtube Assembly
(See Detail “C”)
DETAIL “D” - CASTER/FORK/HEADTUBE
ASSEMBLY
DETAIL “A” - BOTTOM VIEW OF
ROUND RECEPTACLE
DETAIL “E” -
CASTER/FORK/HEADT
UBE ALIGNMENT
Mounting Screws
Round Receptacle
Angle
Adjustment
Screws
90° to the ground/floor
