Invacare Insignia - Using the IV;O2 Holder

SECTION 11—OPTIONS
Insignia
™
46 Part No. 1163197

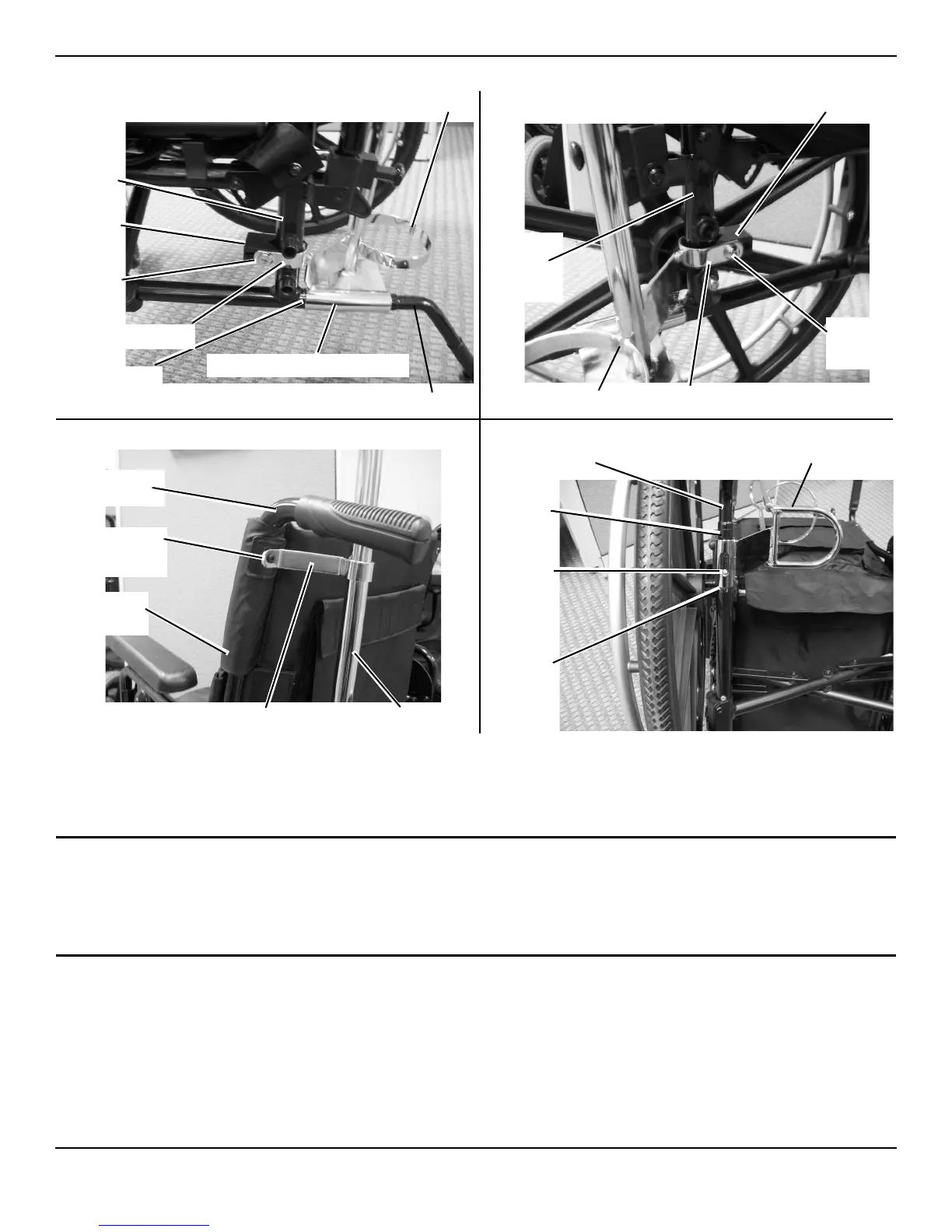

FIGURE 11.5 Installing/Removing the IV/O2 Holder
Using the IV/O2 Holder
 WARNING
Only use O2 cylinders that are at least 24.9 inches in height and 4
3
/
8
inches in diameter. Smaller
O2 cylinders will not properly secure in place which may result in injury and/or damage to the O2
cylinder.
NOTE:Forthisprocedure,refertoFIGURE 11.6.
1. SlidetheO2cylinderthroughtheupperandlowercylinderbrackets(Detail“A”).
2. RotatethelockingknobclockwiseuntiltheO2cylinderissecuredinplace(Detail“B”).Handtightenonly.
IV/O2 Holder
Release
Button
Mounting
Tube
Anti-Tipper
Step
Tube
DETAIL “A”
IV/O2 Holder
Step Tube
Mounting Bracket
Support
Block
Vertical
Frame
Tube
NOTE:Rearwheelremovedforclarity.
Vertical
Frame
Tube
Mounting Bracket
Support
Block
Mounting
Screw
Mounting
Screw
DETAIL “B”
DETAIL “C”
Top Mounting
Screw
Back
Upholstery
Back Cane
Upper Mounting Bracket
DETAIL “D” - BOTTOM VIEW
Anti-Tipper
IV/O2 Holder
IV/O2 Holder
IV/O2 Holder Mounting Tube
