Invacare Insignia - Adjusting the Height of the IV Pole; Cleaning the IV;O2 Holder

SECTION 11—OPTIONS
Part No. 1163197 47 Insignia
™

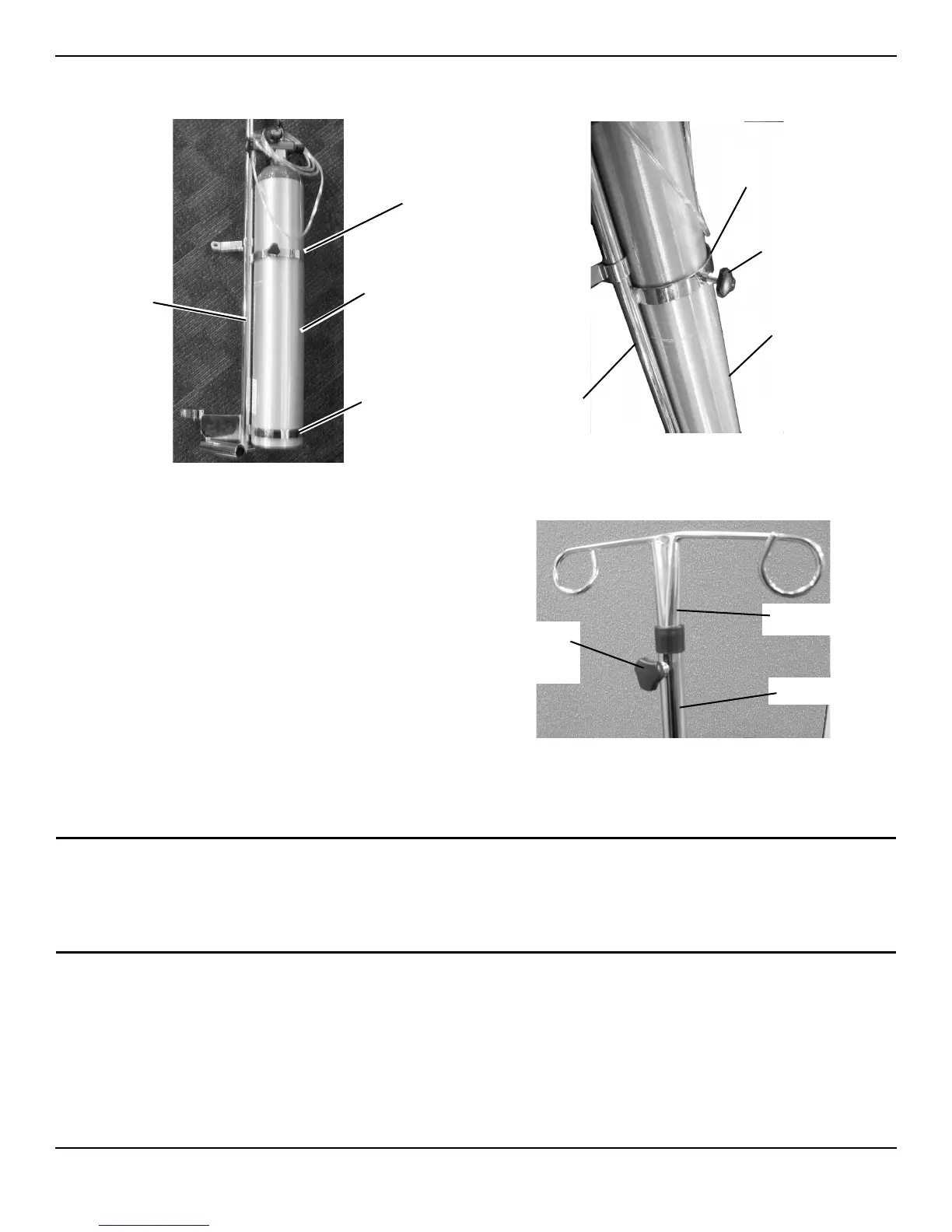

FIGURE 11.6 Using the IV/O2 Holder
Adjusting the Height of the IV Pole
NOTE:Forthisprocedure,refertoFIGURE 11.7.
1. LoosentheheightadjustmentknobontheIV/O2
holder.
2. AdjusttheIVpoletothedesiredheight.
3. RetightentheheightadjustmentknobtosecuretheIV
poleinplace.
FIGURE 11.7 Adjusting the Height of the IV Pole
Cleaning the IV/O2 Holder
 WARNING
The user and O2 cylinder MUST be removed from the wheelchair when cleaning the O2 holder.
Otherwise, injury or damage may occur if cleaning agents come in contact with the O2
regulator.
1. Removetheuser,anyI.V. medicationand theO
2
cylinderfromthewheelchair.
2. ThetelescopingI.V.pole/O2holderscleaneasilywithany householdglasstypecleaner.
3. Afterthecleaningsolutionhasdried,itissafefortheusertore‐occupythewheelchair.
NOTE:IV/O2holdershownisnot
installedonthewheelchairforclarity.
Locking Knob
DETAIL “A”
O2 Cylinder
Upper
Cylinder
Bracket
DETAIL “B”
Upper Cylinder
Bracket
IV/O2 Holder
O2 Cylinder
IV/O2 Holder
Lower
Cylinder
Bracket
IV/O2 Holder
Height
Adjustment
Knob
IV Pole
