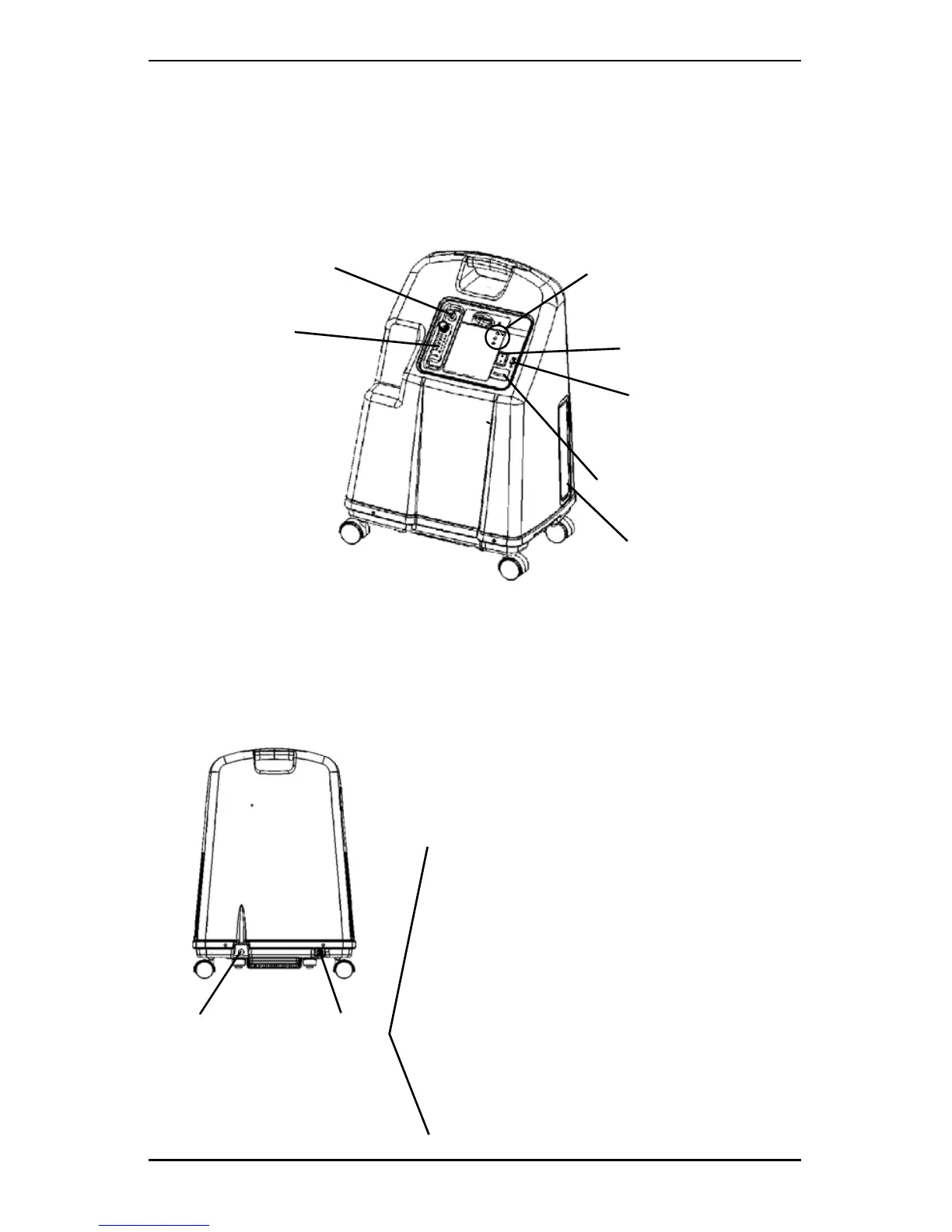

Oxygen Outlet
Flowmeter
Oxygen Purity Indicator Lights
(SensO
2
model only)/ Fault
and Power Indicator Lights
(LX model only)
Power Switch
Circuit Breaker
Elapsed Time Meter
Cabinet Filter
(one of two shown)
REAR VIEW
ACCESSORIES (NOT SHOWN):
Remote Humidifier/Flowmeter Accessory -
IRCRF5 (Platinum 5 and XL Only)
PreciseRX™ Pediatric Humidifier/Flowmeter
Accessory - IRCPF16 (Platinum 5 and XL Only)
HomeFill home oxygen compressor - IOH200
Outlet
Fitting
Power
Cord
NOTE:Thisoutletfittingistobeusedonly
forfillingoxygencylinderswiththe
HomeFillhomeoxygencompressor.The
outletfittingdoesnotaffectconcentrator
performance.RefertotheHomeFillownerʹs
manual,partnumber1100873, for
connectionandoperatinginstructions.
Whennotinuse,theplugprovidedwiththe
concentratorshouldbeinsertedintothe
outletfitting.Formoreinformationaboutthe
HomeFill,contactyourInvacaredealer.
