SECTION 7—COMPRESSOR
Part No 1148070 37 Perfecto
2
™
O-ring, Intake Valve Keeper and Valve Keeper Strip
NOTE:Forthisprocedure,refertoFIGURE 7.5.
1. RemovetheO‐ring,intakevalve
flapperandvalvekeeperstripfromthe
bottomofthevalveplate.Discardall.
2. Cleanthebottomofthevalveplate
withaclean,softcloth.

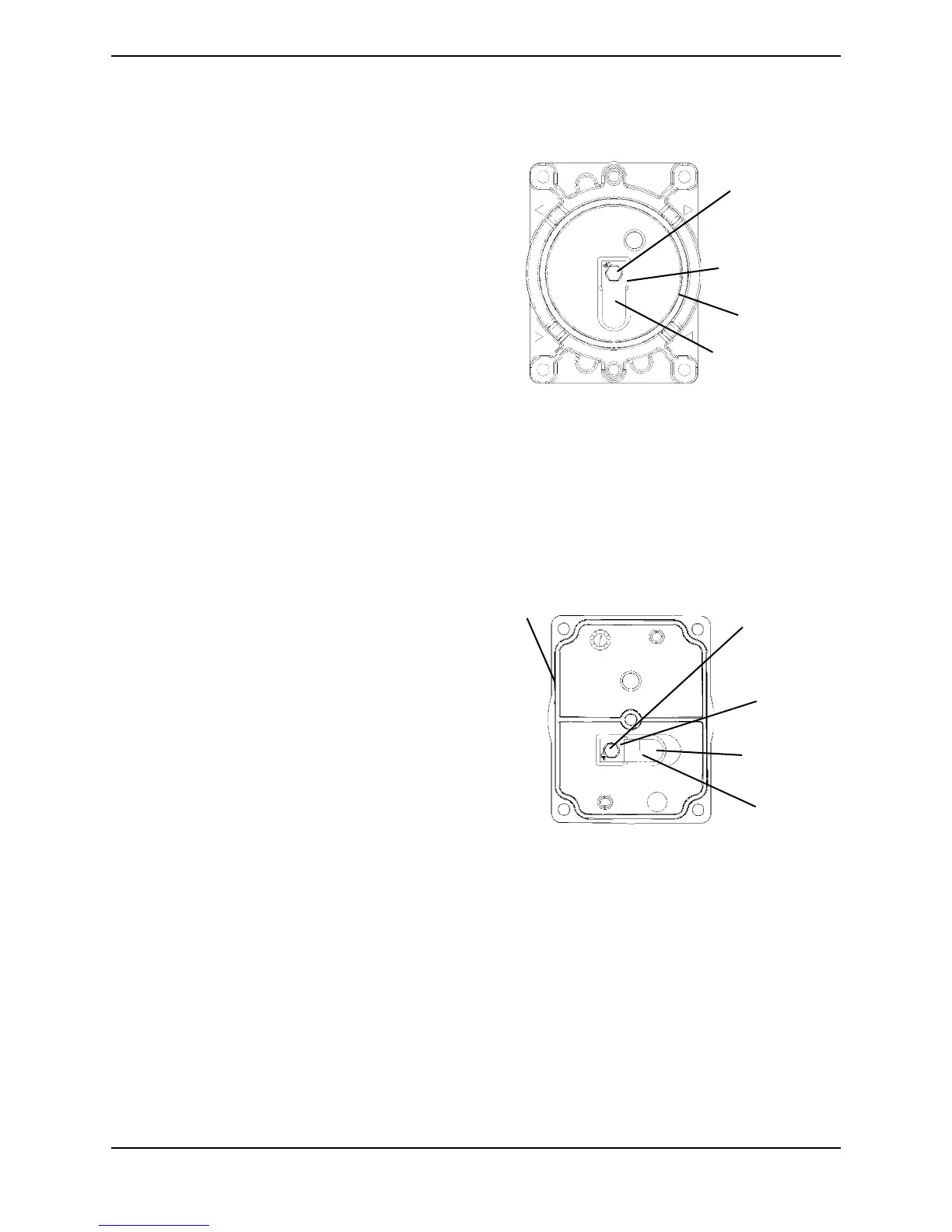

FIGURE 7.5 Removing Compressor and
Compressor Heads - Rebuilding the
Compressor - O-ring, Intake Valve Keeper
and Valve Keeper Strip
Exhaust Valve Flapper, Valve Restraint and Valve Keeper Strip
NOTE:Forthisprocedure,refertoFIGURE 7.6.
1. Removetheexhaustvalveflapper,
valverestraintandvalvekeeperstrip
fromthetopofthevalveplate.Discard
all.
2. Cleanthetopoftheplatewithaclean,
softcloth.
Gasket
NOTE:Forthisprocedure,referto
FIGURE 7.6.
1. Removetheoldgasketfromthetopof
thevalveplateanddiscard.
2. Cleanthe
valveplatewithaclean,soft
cloth.
FIGURE 7.6 Removing Compressor and
Compressor Heads - Rebuilding the
Compressor - Exhaust Valve Flapper, Valve
Restraint and Valve Keeper Strip
Valve Flapper
Screw
Valve
Keeper Strip
Intake Valve
Flapper
O-Ring
Valve Flapper
Screw
Valve
Keeper Strip
Exhaust Valve
Flapper
Valve
Restraint
Gasket
