SECTION 5—WHEELCHAIR OPERATION
Part No 1141450 31 Pronto® M91™ with SureStep®
SECTION 5—WHEELCHAIR
OPERATION
 WARNING
After ANY adjustments, repair or service and before use, make sure that all
attaching hardware is tightened securely - otherwise injury or damage may result.
Set-up of the Electronic Control Unit is to be performed only by a qualified
technician. The final adjustments of the controller may affect other activities of the
wheelchair. Damage to the equipment could occur if improperly setup or adjusted.
Operating the Wheelchair
Turning the Power On/Off
NOTE:Forthisprocedure,refertoFIGURE 5.1.
1. Toturnthepoweron,presstheOn/Offbutton.
2. Turningthepoweroff,presstheOn/Offbutton.

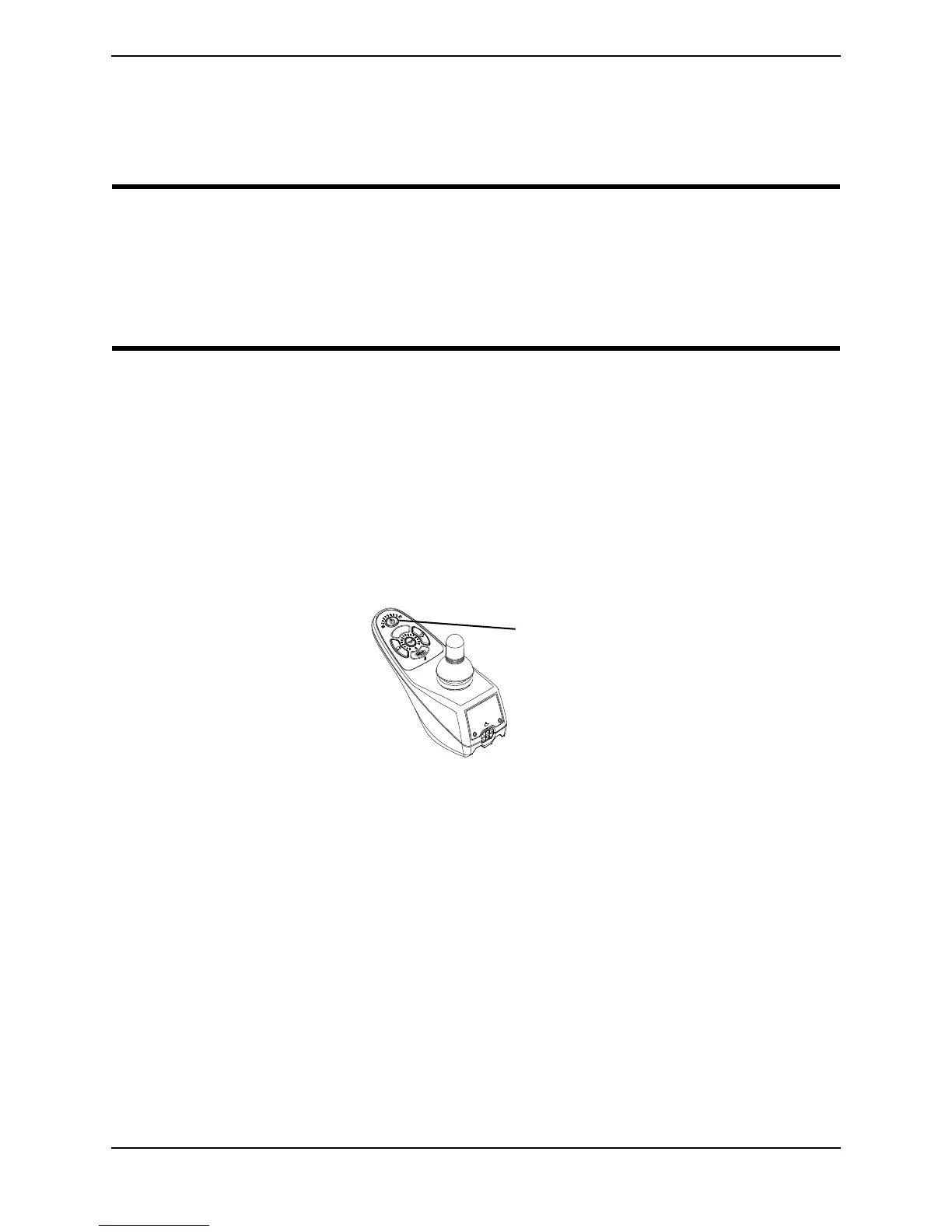

FIGURE 5.1 Turning the Power On/Off
On/Off Button
Thisbuttonislocatedatthefrontofthejoystickhousing.Itisusedtoturnthewheelchair
onandoff,toremovethejoystickfromsleepmode(ifprogrammed)andtolockorunlock
thejoystick(ifprogrammed).
Using the Joystick to Drive the Wheelchair
Thejoystickislocatedatthefrontofthejoystickhousingandprovidessmoothcontrolof
speedanddirection.Itisequippedwith360degreesofmobilityforeaseofoperation.The
joystickisspring‐loaded,andautomaticallyreturnstotheupright(neutral)position
whenreleased.Pushingthejoystickinagivendirectioncausesthewheelchairtomovein
thatdirection.
On/Off
Button

Invacare Pronto M91 Specifications

Power and Performance

maximum speed	6.5 mph / 4.5 mph
incline capability	9˚
weight capacity	300 lb. (400 lb. option)

Wheel and Caster Sizes

front casters	6" x 2"
drive wheels	14" x 3"
rear casters	6" x 2"

Weight and Dimensions

length with footboard up	39"
length with footboard down	40" - 42"
width excluding joystick	25.9"
height	37" - 48"
seat width	18" - 22"
seat depth	16" - 20"
overall height	37" - 40"
back height	18"
seat-to-floor height	21" - 23"
weight with batteries	273 lb.
weight without batteries	199 lb.
wheelchair mass	275 lb.
turning radius front	19.5"
turning radius rear	21.5"
ground clearance	3.25"
