SECTION 9—FRONT RIGGINGS
Pronto® M91™ with SureStep® 54 Part No 1141450
Raising/Lowering Elevating Legrests and/or Adjusting
Calfpads
NOTE:Forthisprocedure,referto
FIGURE 9.14.
Raising/Lowering Elevating
Legrests
1. Performoneofthefollowing:
•Raising‐Pullbackontherelease
leveruntilthelegisatthedesired
height.
•Lowering‐Supportlegwithone
handandpushreleaselever
downwardwithotherhand.
Adjusting Calfpads
1. Turnthecalfpadtowardstheoutsideof
thewheelchair.
2. Slidethecalfpadupordownuntilthe
desiredpositionisobtained.

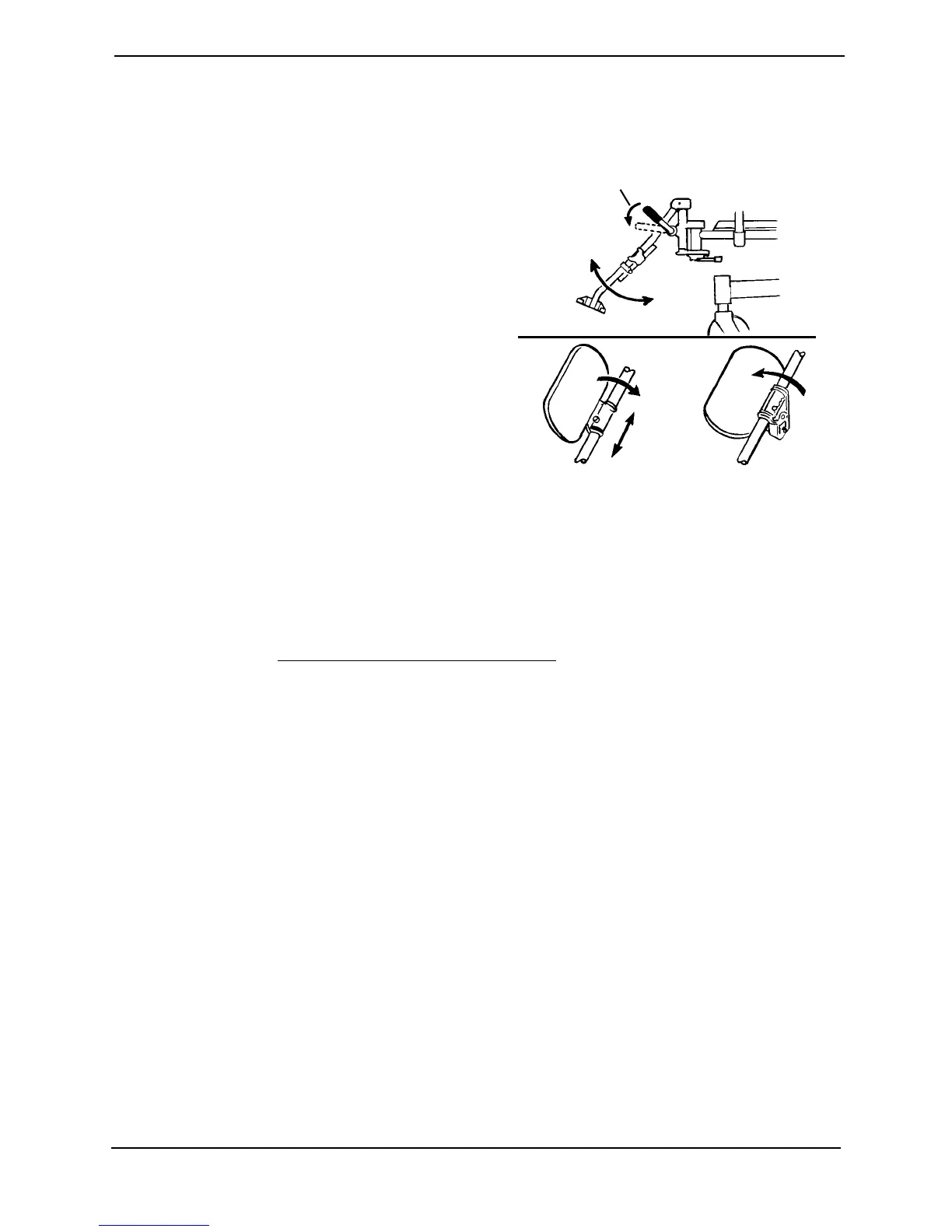

FIGURE 9.14 Raising/Lowering Elevating
Legrests and/or Adjusting Calfpads
NOTE:Ifoneofthetoptwocalfpadadjustmentpositionsisbeingused,thelegrestwillneedtobe
raisedtoavoidinterferencewiththefrontstabilizerswhilegoingoverobstaclesorgoingUPand
downramps.RefertoRaising/LoweringElevatingLegrestsonpage 54.
3. Turnthecalfpadtowardstheinsideofthewheelchair.
Adjust Calfpad
Secure Calfpad
Legrest to Normal Position

Invacare Pronto M91 Specifications

Power and Performance

maximum speed	6.5 mph / 4.5 mph
incline capability	9˚
weight capacity	300 lb. (400 lb. option)

Wheel and Caster Sizes

front casters	6" x 2"
drive wheels	14" x 3"
rear casters	6" x 2"

Weight and Dimensions

length with footboard up	39"
length with footboard down	40" - 42"
width excluding joystick	25.9"
height	37" - 48"
seat width	18" - 22"
seat depth	16" - 20"
overall height	37" - 40"
back height	18"
seat-to-floor height	21" - 23"
weight with batteries	273 lb.
weight without batteries	199 lb.
wheelchair mass	275 lb.
turning radius front	19.5"
turning radius rear	21.5"
ground clearance	3.25"
