3 Piping Diagrams
ATM(H)(04~16)S / ATM(H)(12~16)T

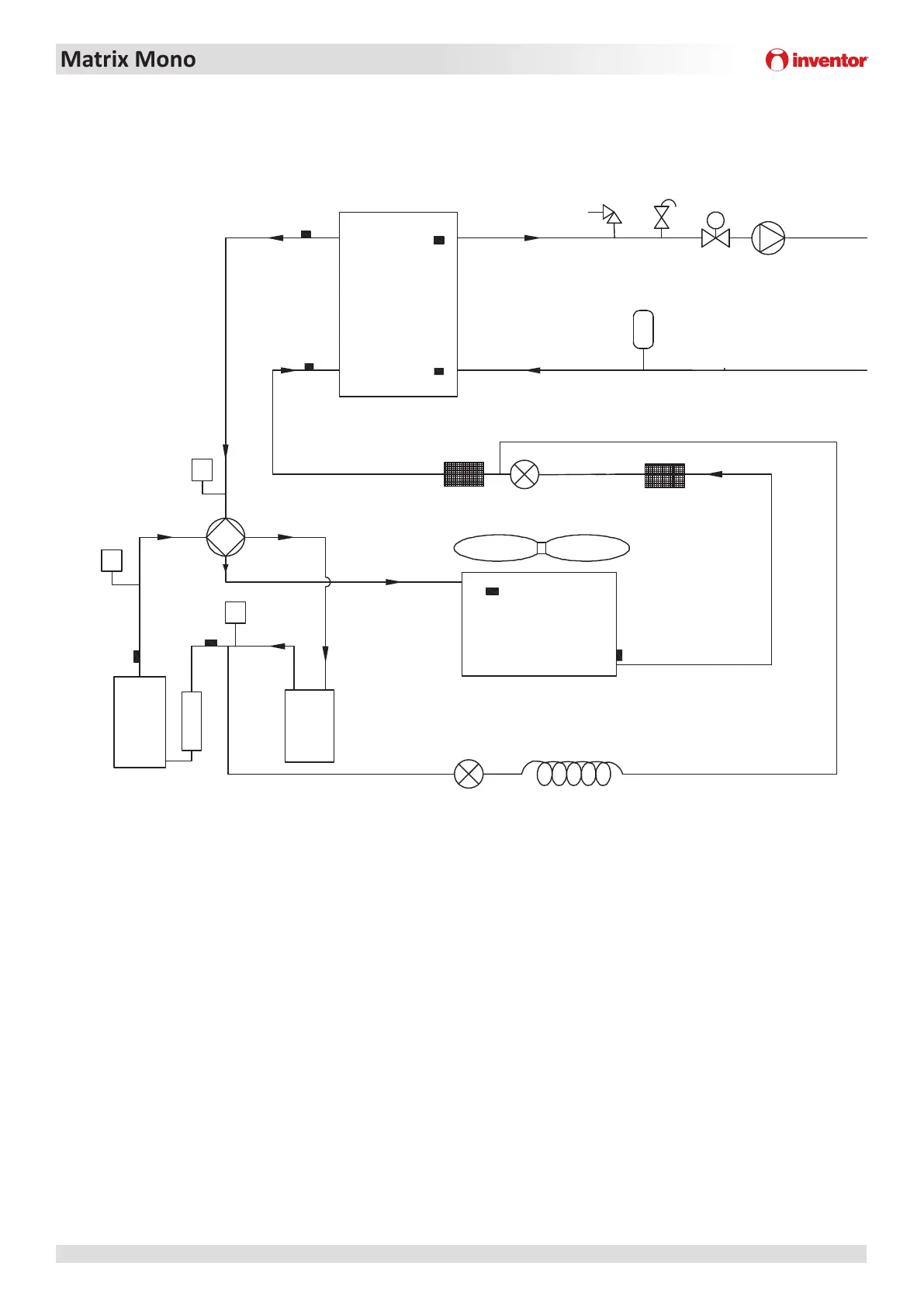

Figure 2-3.1: Piping diagram
d
e
s
c
Compressor
Accumulator
Condenser
EXV
Evaporator
Twin
Twout
T2
T2b
F
Pressure sensor
Safety valve Air purge valve Pump
Flow switch
H
igh-pressure switch
Expansion vessel
Manometer
Single way solenoid valve Capillary
Discharge temp. sensor
DC motor
T4
T3
Filter
Suction temp. sensor
Filter
Low-pressure switch
