Inventor Matrix Mono Engineering Data Book
Matrix Mono 7 Hydronic
Performance
ATM(H)04~10S(3)
Figure 2-7.1: Hydronic performance
1
Abbreviaons:
ESP: External stac pressure
ATM(H)12!16S(3)(T)(9)
Figure 2-7.2: Hydronic performance
1
Abbreviaons:
ESP: External stac pressure
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0
ESP(kPa)
Water flow(m
3
/h)
25
30
35
40
45
50
55
60
65
70
75
80
85
90
0.4 0.8 1.2 1.6 2.0 2.4 2.8 3.2
ESP(kPa)
Water flow(m
3
/h)
NR-90
NR-80
NR-70
NR-60
NR-50
NR-40
NR-30
NR-20
NR-10
NR-0
[Octave band center frequency (Hz)]
Matrix Mono
53
Part 2 - Engineering Data
8 Sound Levels
8.1 Overall
Table 2-8.1: Sound pressure levels
1
Model name
dB
2
ATM(H)04S(3) 45.0
ATM(H)06S(3) 47.5
ATM(H)08S(3) 48.5
ATM(H)10S(3) 50.5
ATM(H)12S(3) 53.0
ATM(H)14S(3) 53.5
ATM(H)16S(3) 57.5
ATM(H)12T(9) 53.5
ATM(H)14T(9) 54.0
ATM(H)16T(9)
58.0
Notes:
1. Sound pressure level is measured at a posion 1m in front of the unit and (1+H)/2m (where H is the height of the unit) above the floor in a semi-anechoic
chamber. During in-situ operaon, sound pressure levels may be higher as a result of ambient noise.

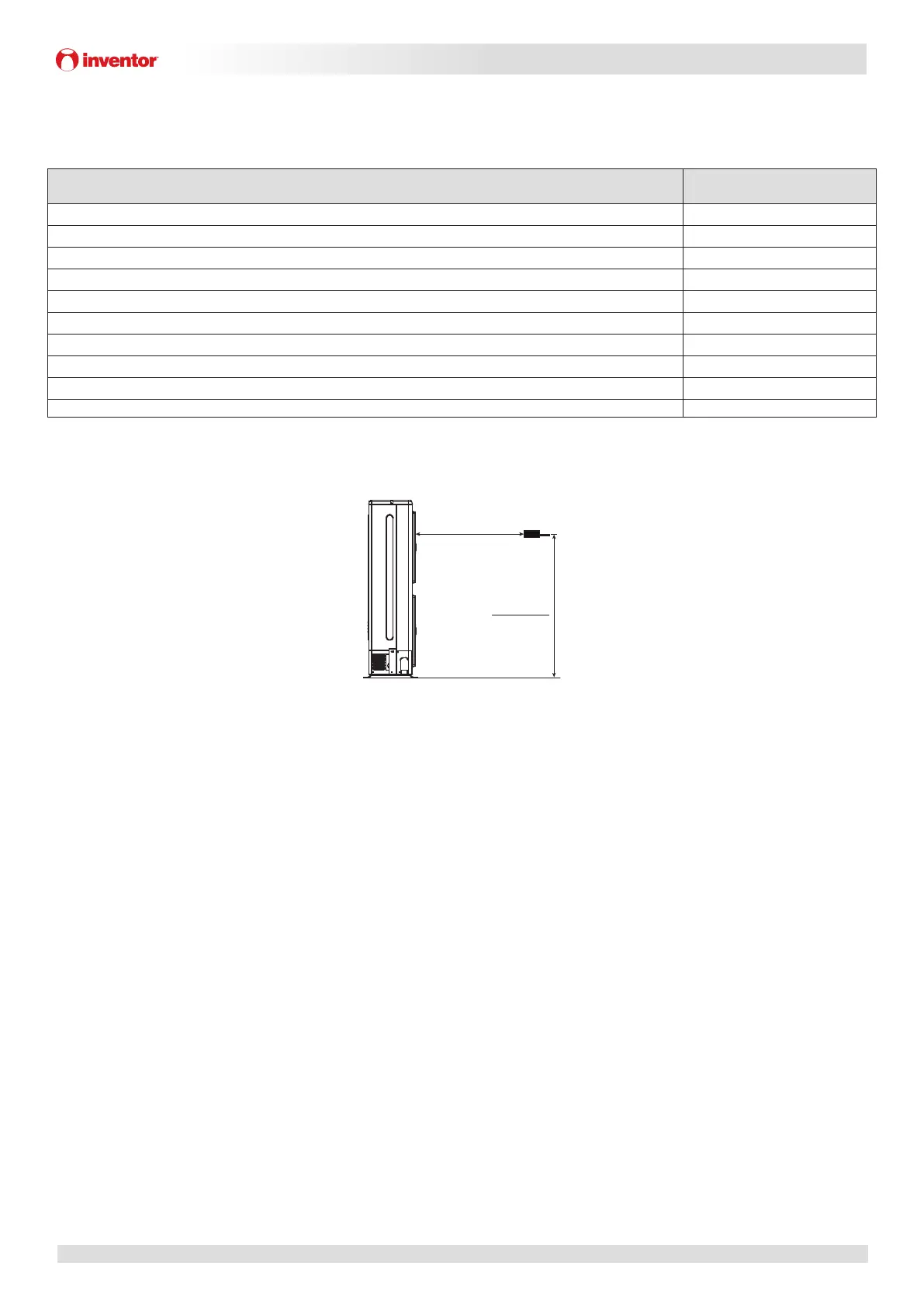

Figure 2-8.1: Sound pressure level measurement (unit: mm)
2. dB is the maximum value tested under the condions below:
Outdoor air temperature 7⁰C DB, 85% R.H.; EWT 30⁰C, LWT 35⁰C. Free compressor frequency.
Outdoor air temperature 7⁰C DB, 85% R.H.; EWT 47⁰C, LWT 55⁰C. Free compressor frequency.
1000
(H+1000)
2
Front
NR-90
NR-80
NR-70
NR-60
NR-50
NR-40
NR-30
NR-20
NR-10
NR-0
[Octave band center frequency (Hz)]
